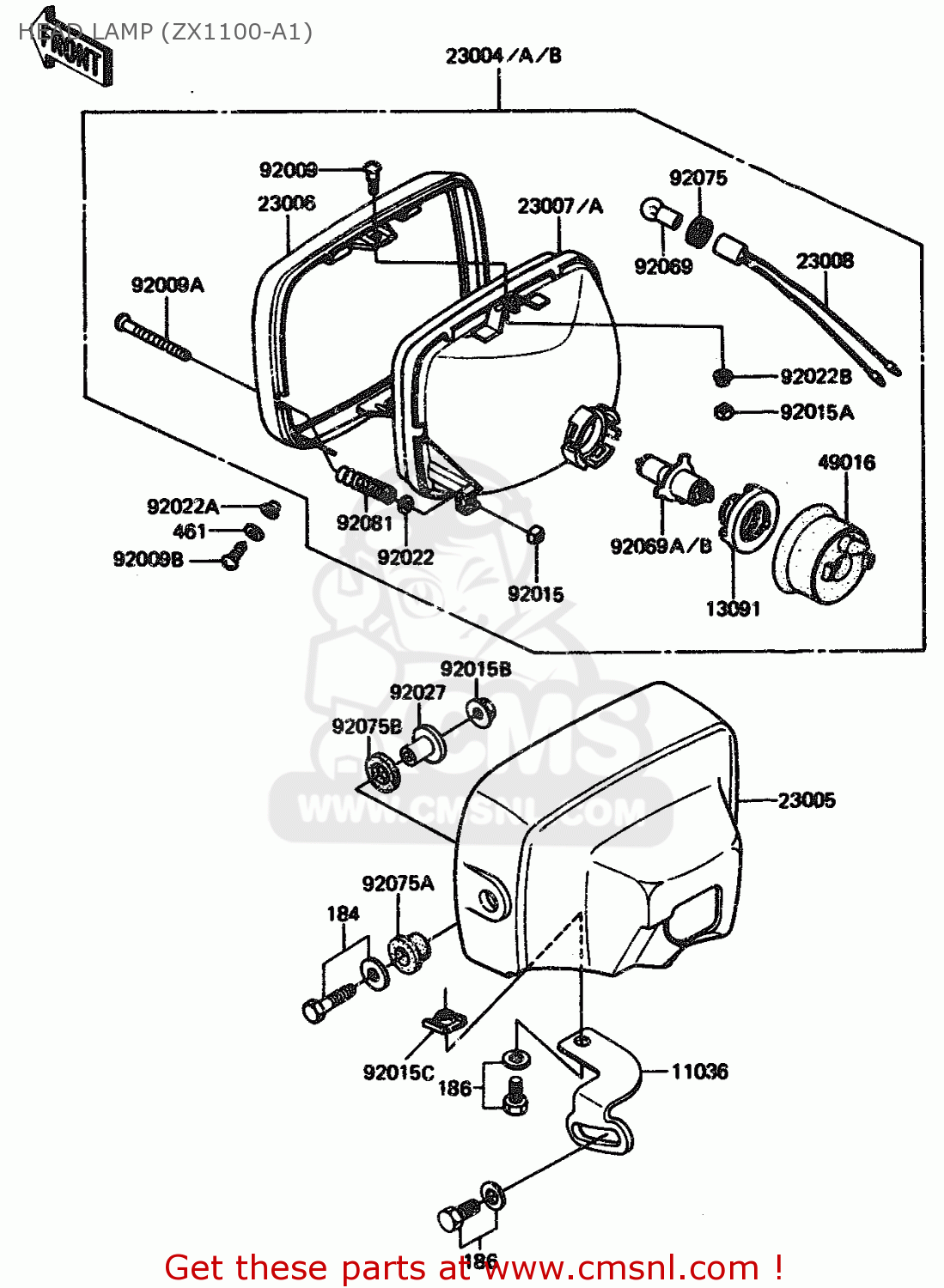

HEAD LAMP (ZX1100-A1)

ref

part #

description

quantity

11036

110361398
ref: 11036

BRACKET-A,HEAD LAMP

€ 6.00

13091

130911036
ref: 13091

HOLDER,HEAD LAMP SOCK

€ 12.50

23004

230041117
ref: 23004
EU, IT, NR, SD, ST,

LAMP-HEAD

€ 451.00

23004A

230041118
ref: 23004A
FR

LAMP-HEAD

€ 474.00

23004B

230041119
ref: 23004B
UK

LAMP-HEAD

€ 638.00

23009

2300510226Z
ref: 23009

BODY-COMP-HEAD LAMP

€ 104.00

23006

230061024
ref: 23006

RIM-LAMP,BLACK

€ 65.50

23007

230071042
ref: 23007
EU, FR, IT, NR, SD,

LENS-COMP,HEAD LAMP

€ 180.00

23007A

230071043
ref: 23007A
UK

LENS-COMP,HEAD LAMP

€ 197.50

23008

23008038
ref: 23008

SOCKET-ASSY,PARKING L

€ 7.50

49016

490161023
ref: 49016

COVER-SEAL,HEAD LAMP

€ 11.50

92009

23019023
ref: 92009

SCREW-PAN HEAD,5X12

€ 3.50

92009A

920091047
ref: 92009A

SCREW,HEAD LAMP LENS

€ 3.00

92009B

92011026
ref: 92009B

SCREW-PAN HEAD,6MM

€ 3.00

92015

23020018
ref: 92015

NUT,4MM,FOCUS ADJUST

€ 3.00

92015A

23020020
ref: 92015A

NUT,5MM

€ 3.00

92015B

920151014
ref: 92015B

NUT,8MM

€ 0.50

92015C

920151056
ref: 92015C

NUT,20MM

€ 8.50

92022

23021004
ref: 92022

WASHER,4.1X8X0.8

€ 2.00

92022A

23021010
ref: 92022A

WASHER

€ 2.50

92022B

23021012
ref: 92022B

WASHER

€ 3.00

92027

920271131
ref: 92027

COLLAR,HEAD LAMP FITT

€ 6.00

92069

ref: 92069
(LOCAL PROCUREMENT I

92069A

920691002
ref: 92069A
EU, IT, NR, SD, ST,

BULB,12V-60155W

€ 15.00

92069B

ref: 92069B
FR (LOCAL PHOCUREMEN

92075

23066008
ref: 92075

DAMPER,PARKING LAMP

€ 3.00

92075A

920751109
ref: 92075A

DAMPER,HEAD LAMP FITT

€ 4.00

92075B

920751110
ref: 92075B

DAMPER,HEAD LAMP FITT

€ 3.00

92081

920811103
ref: 92081

SPRING,HEAD LAMP LENS

€ 3.00

184

184C0835
ref: 184

BOLT-UPSET-WP-SMALL

€ 2.50

186

186B0614
ref: 186

BOLT-UPSET-WP

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

all assemblies
