CRANKCASE
ZX1100A1 1983 EUROPE UK FR IT NR SD ST

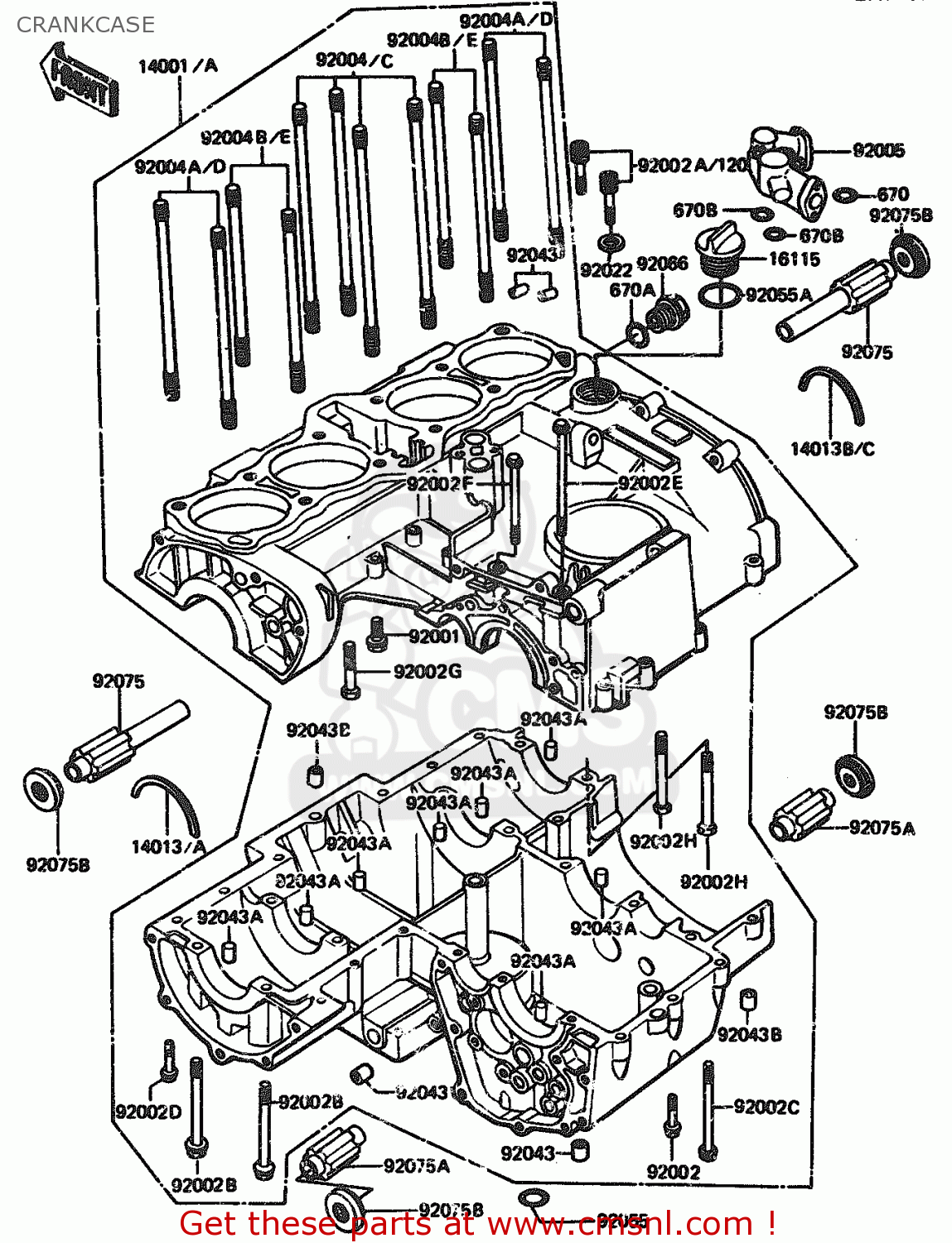

Crankcase diagram ZX1100A1 1983 EUROPE UK FR IT NR SD ST
CRANKCASE ZX1100A1 1983 EUROPE UK FR IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
14001
140015112
ref: 14001
SET-CRANKCASE,F.BLACK
€ 1,847.00
14013
14013013
ref: 14013
RING-POSITION,T=1.90
€ 7.50
14013A
140131004
ref: 14013A
RING-POSITION,CRANK
€ 3.00
14013B
140131005
ref: 14013B
RING-POSITION
€ 3.00
14013C
140131006
ref: 14013C
RING-POSITION,T=1.90
€ 3.50
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
92001
920011349
ref: 92001
BOLT,FLANGED,8X16
€ 3.50
92002
920021054
ref: 92002
BOLT,6X55
€ 3.00
92002B
920021077
ref: 92002B
BOLT,8X95
€ 7.50
92022C
920021078
ref: 92022C
BOLT,6X95
€ 2.50
92002D
920021080
ref: 92002D
BOLT,6X40
€ 3.50
92002E
920021081
ref: 92002E
BOLT,6X115
€ 4.00
92002F
920021141
ref: 92002F
BOLT,6X100
€ 2.50
92002G
920021329
ref: 92002G
BOLT,8X72
€ 6.50
92002H
920021330
ref: 92002H
BOLT,8X80
€ 4.50
92004
920041002
ref: 92004
STUD, 10X167
€ 10.50
92004A
920041003
ref: 92004A
STUD, 10X158
€ 10.50
92004B
920041004
ref: 92004B
STUD, 10X133
€ 11.50
92005
920051101
ref: 92005
FITTING,OIL COOLER
€ 74.50
92022
920221086
ref: 92022
WASHER,8.2X16X1
€ 2.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92043A
92042016
ref: 92043A
PIN,DOWEL,6X16
€ 3.50
92043B
920431037
ref: 92043B
PIN,DOWEL,10X8.2X14
€ 0.50
92055
92055048
ref: 92055
RING-O,OD=18
€ 3.00
92055A
92055049
ref: 92055A
'0'RING,31MM
€ 2.50
92066
920661098
ref: 92066
PLUG,14X12,F.BLACK
€ 12.50
92075
920751272
ref: 92075
DAMPER,ENGINE MOUNT,U
€ 32.50
92075A
920751273
ref: 92075A
DAMPER,ENGINE MOUNT,L
€ 19.00
92075B
920751274
ref: 92075B
DAMPER,ENG MOUNT,SIDE
€ 11.00
120
120P0840
ref: 120
BOLT-SOCKET,8X40
€ 2.00
670
670B1509
ref: 670
O RING,9MM
€ 1.00
670A
670B2015
ref: 670A
O RING,15MM
€ 1.00
670B
670B2018
ref: 670B
O RING,18MM
€ 1.00
