HANDLEBAR
ZX1100A1 1983 EUROPE UK FR IT NR SD ST

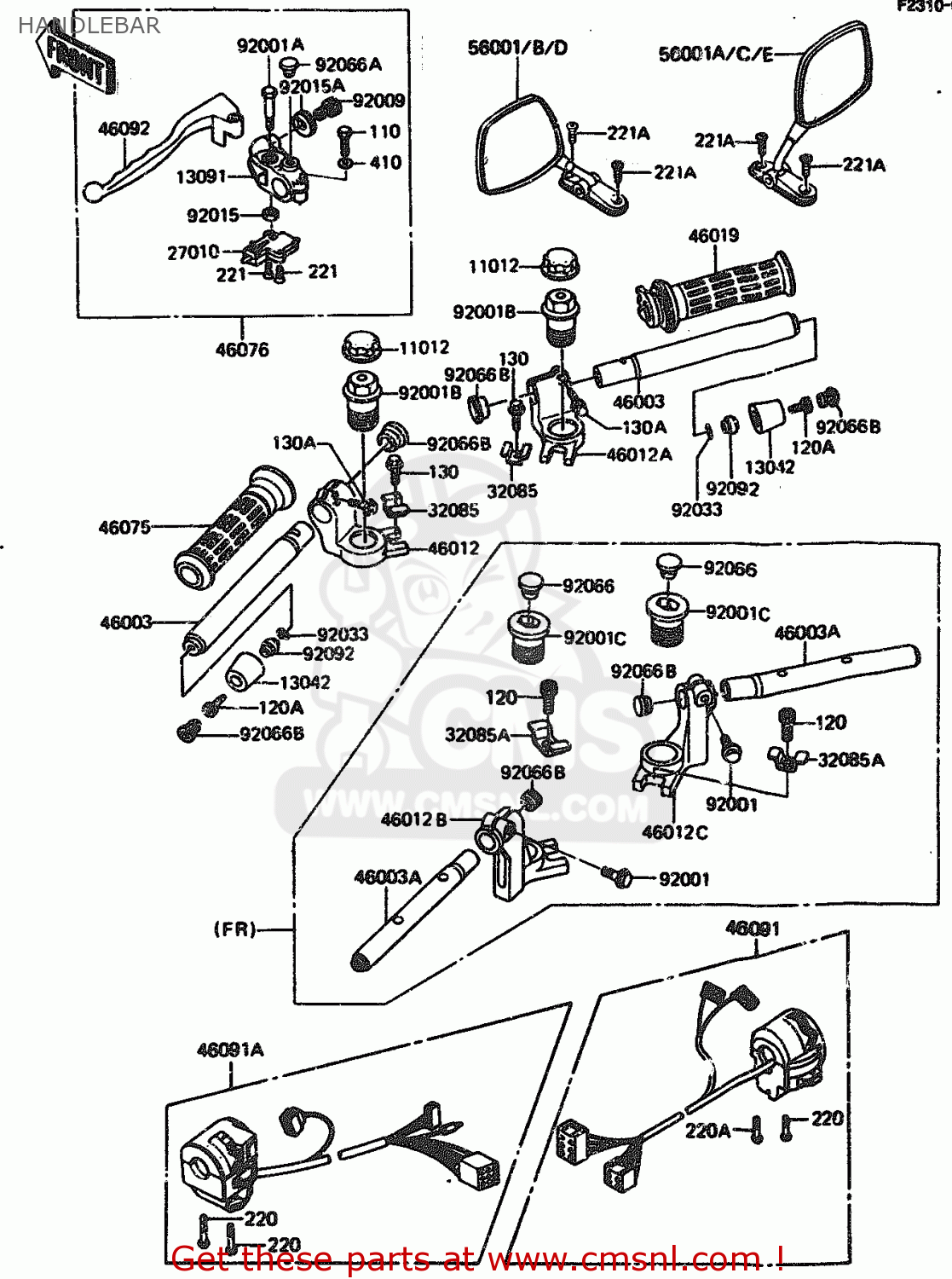

Handlebar diagram ZX1100A1 1983 EUROPE UK FR IT NR SD ST
HANDLEBAR ZX1100A1 1983 EUROPE UK FR IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11012
110121250
ref: 11012
CAP,BOLT,PP,BLACK
€ 9.50
13042
130421006
ref: 13042
WEIGHT,HANDLE
€ 40.50
13091
130911185
ref: 13091
HOLDER,CLUTCH LEVER,F
€ 37.50
27010
270101094
ref: 27010
SWITCH,CLUTCH
€ 20.50
32085
320851092
ref: 32085
STOPPER,HANDLE HOLDER
€ 9.50
46003
460031130
ref: 46003
HANDLE
€ 33.50
46003A
460031158
ref: 46003A
FR
HANDLE
€ 46.50
46012
460121037
ref: 46012
HOLDER-HANDLE,LH
€ 73.00
46012A
460121038
ref: 46012A
HOLDER-HANDLE,RH
€ 59.50
46019
460191021
ref: 46019
GRIP-ASSY,THROTTLE
€ 24.00
46075
460751028
ref: 46075
GRIP,LH
€ 9.00
46076
460761041
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 73.50
46091
460911215
ref: 46091
HOUSING-ASSY-CNTRL,RH
€ 134.00
46091A
460911271
ref: 46091A
HOUSING-ASSY-CONTROL
€ 148.50
46092
460921050
ref: 46092
LEVER-GRIP,CLUTCH,BLA
€ 13.50
56001
560011142
ref: 56001
FR, UK
MIRROR-ASSY,LH
€ 58.50
56001A
560011143
ref: 56001A
FR, UK
MIRROR-ASSY,RH
€ 61.50
56001B
560011144
ref: 56001B
EU, NR, SD, ST, WG
MIRROR-ASSY,LH
€ 58.50
56001C
560011145
ref: 56001C
EU, NR, SD, ST, WG
MIRROR-ASSY,RH
€ 61.50
56001D
560011146
ref: 56001D
IT
MIRROR-ASSY,LH
€ 61.50
56001E
560011147
ref: 56001E
IT
MIRROR-ASSY,RH
€ 58.50
92001A
920011548
ref: 92001A
BOLT,CLUTCH LEVER,BLA
€ 5.50
92001B
920011845
ref: 92001B
BOLT,FLANGED,32X35,BL
€ 33.50
92009
920091134
ref: 92009
SCREW,CBL ADJUST,8MM
€ 10.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92015A
920151197
ref: 92015A
NUT,CABLE ADJUST LOCK
€ 6.50
92033
920331102
ref: 92033
RING-SNAP,OD=22.2
€ 2.50
92066A
920661077
ref: 92066A
CAP,REAR VIEW MIRROR
€ 3.00
92066B
920661124
ref: 92066B
PLUG,HANDLE
€ 4.00
92092
920921018
ref: 92092
BUSHING-RUBBER,HANDLE
€ 10.50
110
110C0622
ref: 110
BOLT,6X22,BLACK
€ 3.00
120A
120P0825
ref: 120A
BOLT,SOCKET,8X25
€ 1.50
130
130J0816
ref: 130
BOLT-FLANGED,8X16,BLA
€ 0.50
130A
130S0825
ref: 130A
BOLT-FLANGED,8X25,BLA
€ 2.00
220
220B0535
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
220B0540
ref: 220A
SCREW-PAN-CROS
€ 2.00
221
221C0316
ref: 221
SCREW-CSK-CROS
€ 2.50
221
221C0630
ref: 221
SCREW-CSK-CROS,6X30
€ 1.00
410
410F0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
