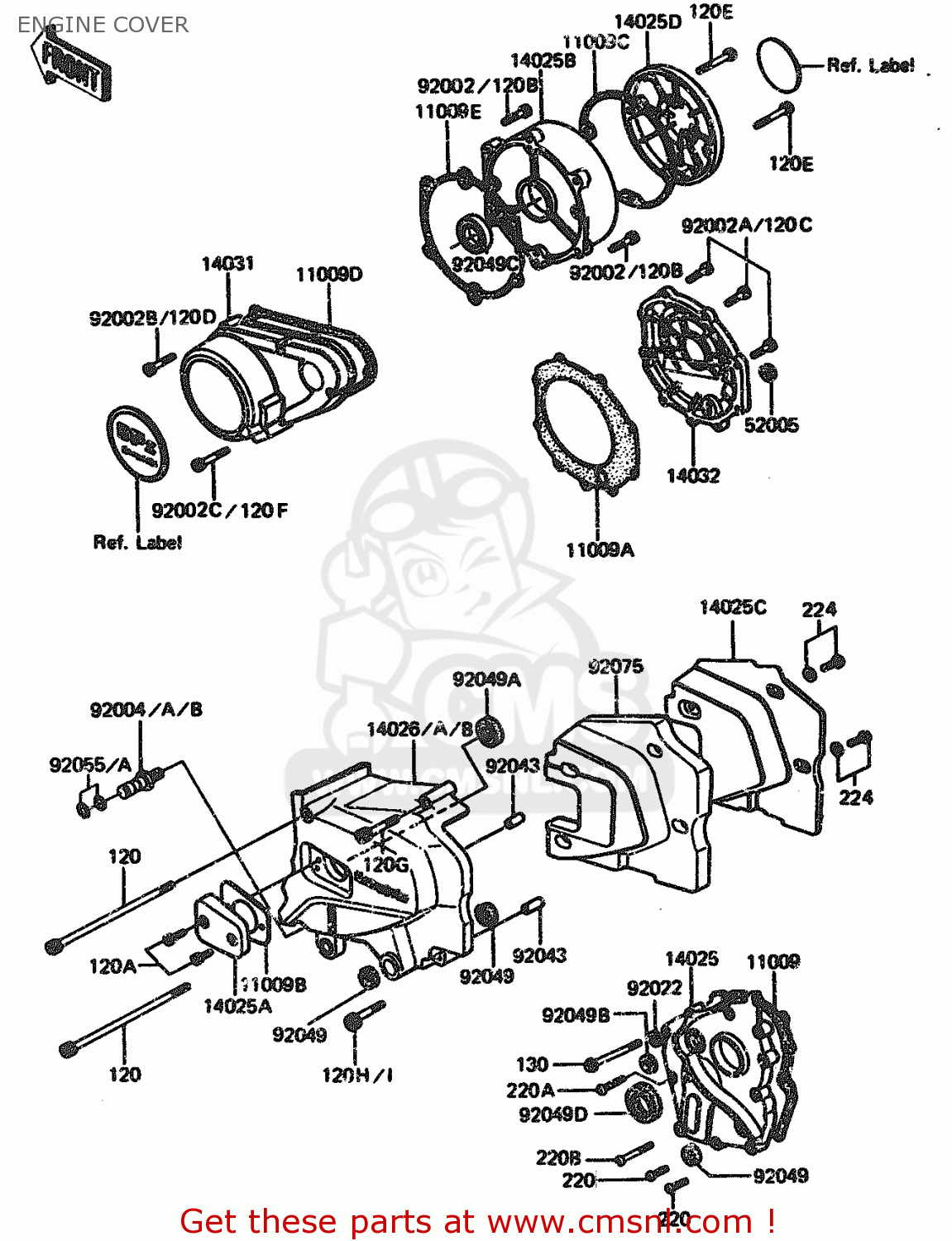

ENGINE COVER

ref

part #

description

quantity

11009

110091163
ref: 11009

GASKET,MISSION COV (MCA)

€ 12.00

11009A

110091210
ref: 11009A

GASKET,CLUTCH COVER (MCA)

€ 20.50

11009B

110091211
ref: 11009B

GASKET,CLUTCH ADJ COV (MCA)

€ 3.50

11009C

110091220
ref: 11009C

GASKET,PULSING COIL C (MCA)

€ 9.00

11009D

14045014
ref: 11009D

GASKET-L.H ENG COVER (MCA)

€ 15.00

11009E

14046023
ref: 11009E

GASKET R.H ENG COVER (MCA)

€ 10.50

14025

140251240
ref: 14025

TRANSMISSION COVER

€ 103.50

14025A

140251409
ref: 14025A

COVER,CLUTCH RELEASE,

€ 19.50

14025B

140251609
ref: 14025B

COVER,ENGINE,RH,BLACK

€ 98.00

14025C

140251638
ref: 14025C

COVER,SOUND ARRESTER

€ 12.00

14025D

140251671
ref: 14025D

COVER,PULSING COIL,BL

€ 50.00

14026

140261085
ref: 14026
(-ZXT10A-006055)

COVER-CHAIN,BLACK

€ 150.00

14026B

140261105
ref: 14026B
(ZXT10A-006056-)

COVER-CHAIN,BLACK

€ 150.00

14031

140311117
ref: 14031

COVER-GENERATOR,BLACK

€ 193.00

14032

140321112
ref: 14032

COVER-CLUTCH,BLACK

€ 145.00

52005

520051009
ref: 52005

GAUGE,OIL LEVEL

€ 12.00

92004

920041034
ref: 92004
(-ZXT10A-003887)

STUD,CHNG PEDAL PIVOT

€ 14.50

92004A

920041107
ref: 92004A
(ZXT10A-003888-)

STUD,CHANGE PEDAL PIV

€ 14.50

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

92049

92049004
ref: 92049

OIL SEAL SB12205

€ 6.00

92049A

920491003
ref: 92049A

OIL SEAL,CLUTCH

€ 8.00

92049B

920491017
ref: 92049B

SEAL-OIL,SD-8187

€ 6.50

92049C

920491033
ref: 92049C

OIL SEAL,SC32487

€ 12.00

92049D

920491070
ref: 92049D

SEAL-OIL,AE2343F0

€ 11.50

92055A

92055099
ref: 92055A
(ZXT10A-003888-)

O RING, 8.8MM

€ 3.00

92075

920751444
ref: 92075

DAMPER,SOUND

€ 22.00

120

120S06125
ref: 120

BOLT-SOCKET,6X125,BLA

€ 9.50

120A

120S0614
ref: 120A

BOLT-SOCKET,6X14,BLAC

€ 2.50

120B

120S0622
ref: 120B

BOLT-SOCKET,6X22,BLAC

€ 3.00

120C

120S0625
ref: 120C

BOLT-SOCKET,6X25,BLAC

€ 1.00

120D

120S0630
ref: 120D

BOLT-SOCKET,6X30,BLAC

€ 1.00

120E

120S0635
ref: 120E

BOLT-SOCKET

€ 1.00

120F

120S0640
ref: 120F

BOLT-SOCKET

€ 1.00

120G

120S0670
ref: 120G

BOLT-SOCKET,6X70,BLAC

€ 3.50

120I

120S0680
ref: 120I
(ZXT10A-006056-)

BOLT-SOCKET,6X80,BLAC

€ 2.50

130

130G0635
ref: 130

BOLT, FLANGED, 6X35

€ 0.50

220

220B0620
ref: 220

SCREW-PAN HEAD,6X20

€ 2.50

220A

220B0628
ref: 220A

SCREW-PAN HEAD,6X28

€ 2.50

220B

220B0640
ref: 220B

SCREW-PAN HEAD,6X40

€ 2.00

224

224B0612
ref: 224

SCREW-PAN-WP-CROS

€ 0.50
