FRAME

ZX1100A1 1983 EUROPE UK FR IT NR SD ST

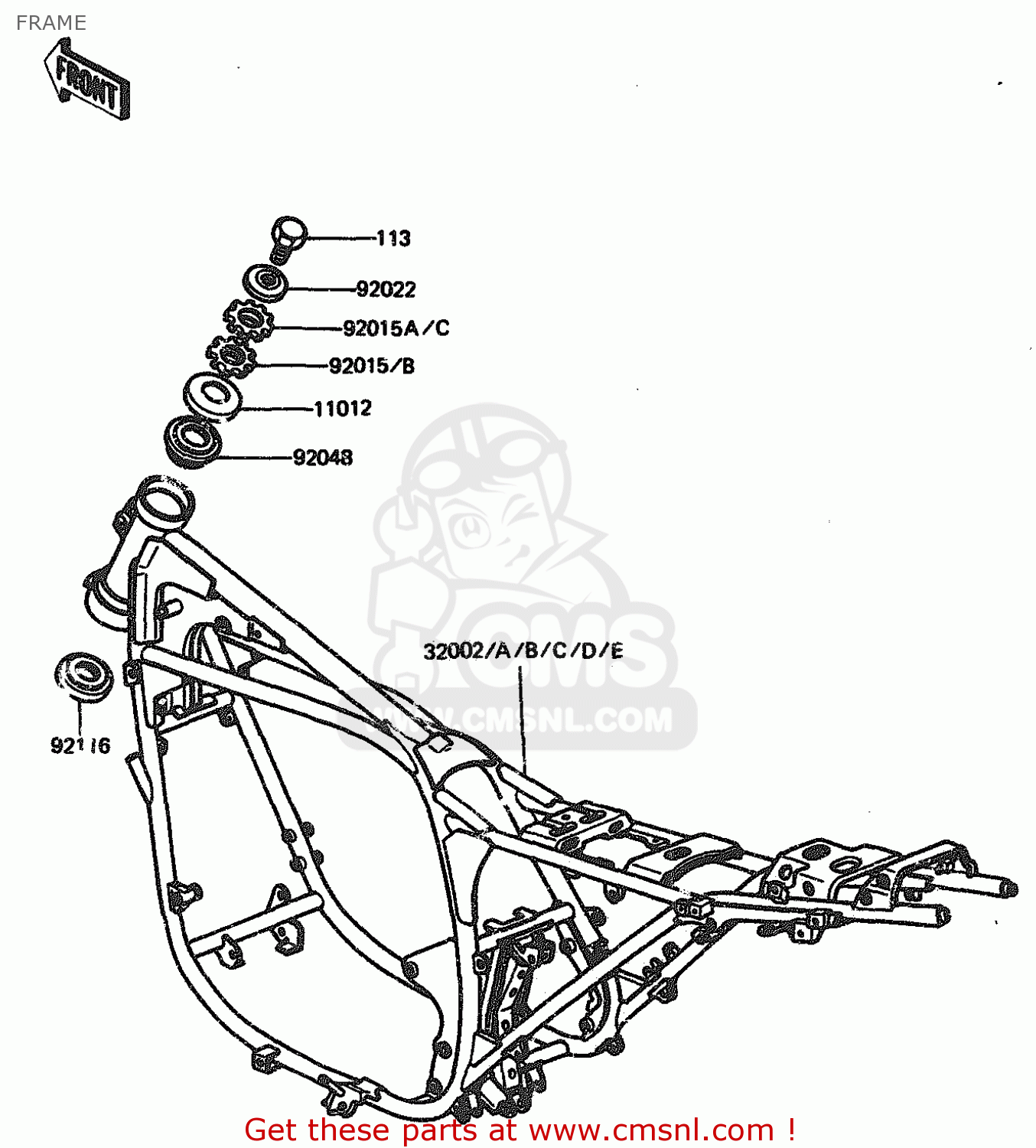

Frame diagram ZX1100A1 1983 EUROPE UK FR IT NR SD ST

prices are in EUR

ref

part #

description

quantity

11012

46098017
ref: 11012

CAP,STEERING STEM

€ 4.00

32002

320021598
ref: 32002
EU, FR, IT, NR, ST,

FRAME-COMP,US

€ 1,178.50

32002A

320021600
ref: 32002A
WG

FRAME-COMP,WG

€ 1,361.00

32002B

320021601
ref: 32002B
SD

FRAME-COMP,SD

€ 1,170.50

92015

920151128
ref: 92015

NUT,25MM,T=10

€ 18.50

92015A

920151129
ref: 92015A

NUT,25MM,T=6

€ 14.50

92022

920221229
ref: 92022

WASHER,14.5X36X4.5

€ 8.00

92048

92047017
ref: 92048

CONE,STRNG,STEM

€ 49.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

113

113G1425
ref: 113

BOLT-SMALL-FINE,14X25

€ 5.50
