FRAME FITTING
ZX1100A1 1983 EUROPE UK FR IT NR SD ST

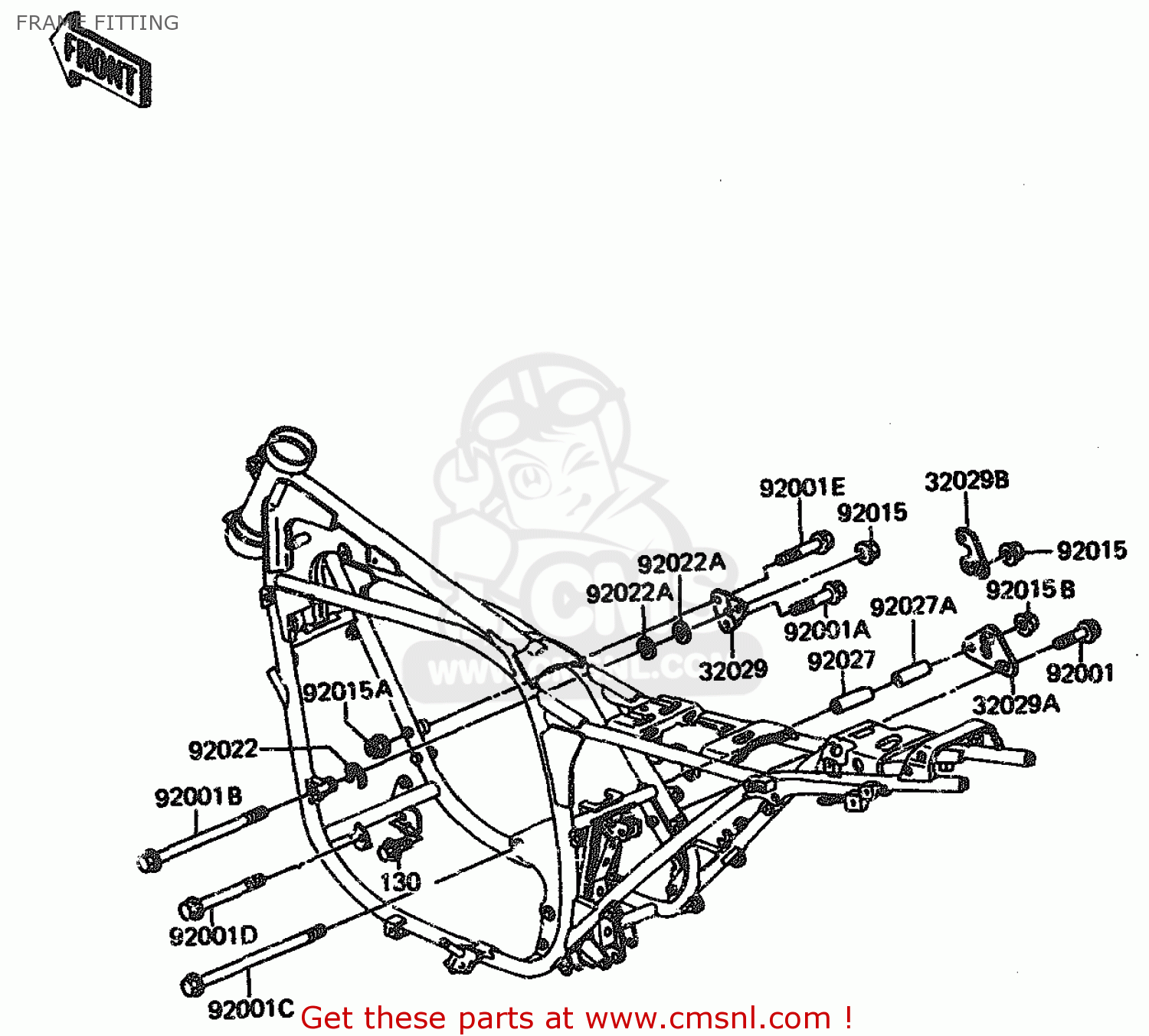

Frame fitting diagram ZX1100A1 1983 EUROPE UK FR IT NR SD ST
FRAME FITTING ZX1100A1 1983 EUROPE UK FR IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
32029
320291263
ref: 32029
BRACKET-ENGINE,FR,UPP
€ 7.50
32029A
320291264
ref: 32029A
BRACKET-ENGINE,RR
€ 9.50
32029B
320291302
ref: 32029B
BRACKET-ENGINE,FR,LWR
€ 15.50
92001
920011612
ref: 92001
BOLT,FLANGED,8X40,BLA
€ 3.00
92001A
920011616
ref: 92001A
BOLT,FLANGED,8X65
€ 5.50
92001B
920011624
ref: 92001B
BOLT FLANGED
€ 26.00
92001C
920011820
ref: 92001C
BOLT,12X300
€ 19.50
92001D
920011953
ref: 92001D
BOLT,FLANGED,10X160,B
€ 13.00
92001E
920011958
ref: 92001E
BOLT,FLANGED,8X70,BLA
€ 6.50
92015
920151180
ref: 92015
NUT,FLANGED,10MM,BLAC
€ 2.50
92015A
920151183
ref: 92015A
NUT,FLANGED,8MM,BLACK
€ 1.00
92015B
920151249
ref: 92015B
NUT,FLANGED,12MM,BLAC
€ 3.50
92022
920221259
ref: 92022
WASHER,U FORMED
€ 4.50
92022A
920221300
ref: 92022A
WASHER,10.5X22X4.5,BL
€ 3.00
92027
920271578
ref: 92027
COLLAR,12.2X22X54,BLA
€ 7.50
92027A
920271579
ref: 92027A
COLLAR,12,2X22X39.5,B
€ 7.50
130
130J0816
ref: 130
BOLT-FLANGED,8X16,BLA
€ 0.50
