Genuine ZR Kawasaki Parts delivered quickly!


TRANSMISSION

ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

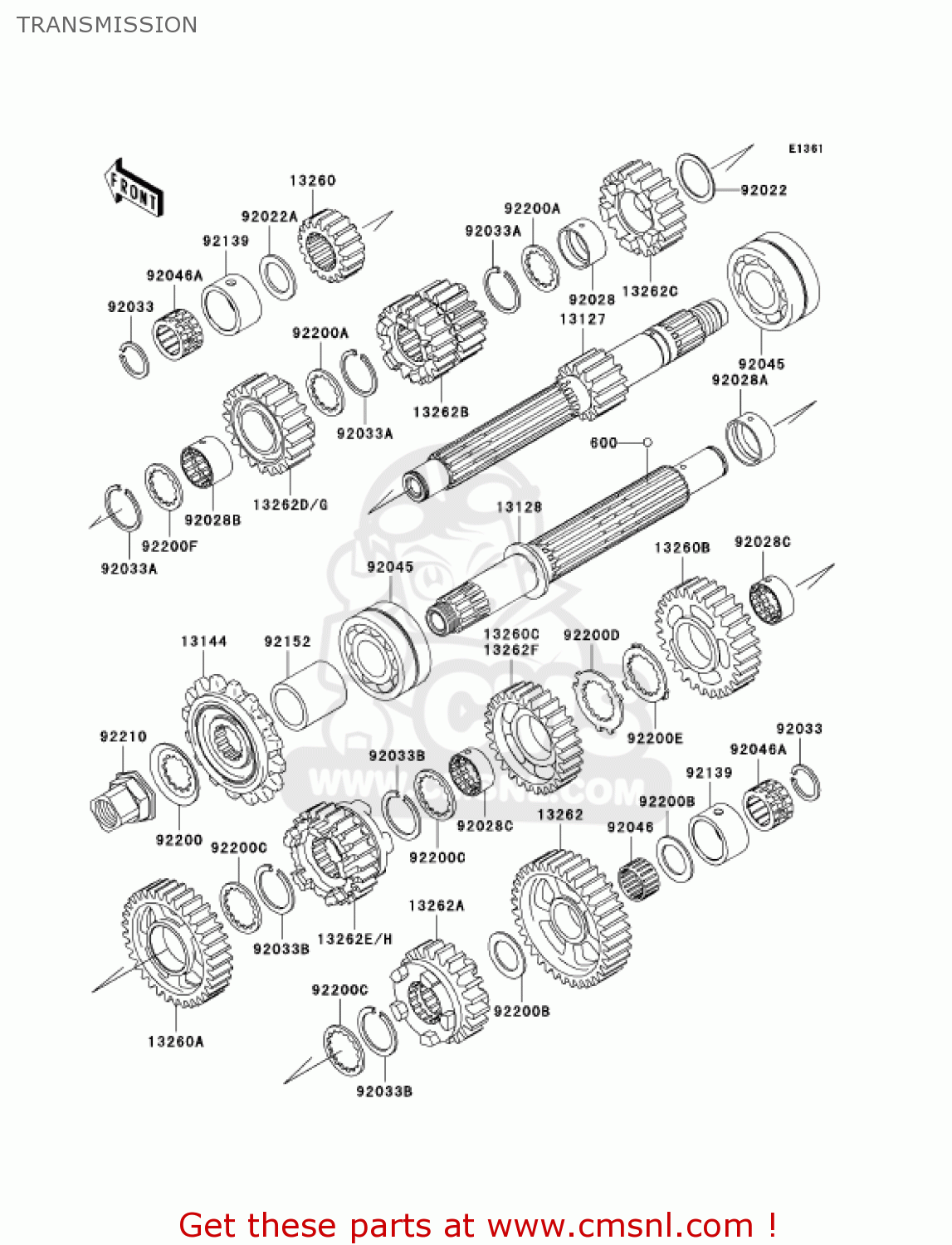

Transmission diagram ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

TRANSMISSION ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA
TRANSMISSION ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA
TRANSMISSION ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
13127
131270007
ref: 13127
SHAFT-TRANSMISSION IN
€ 269.00
13128
131281260
ref: 13128
SHAFT-TRANSMISSION OU
€ 212.00
13144
131441320
ref: 13144
SPROCKET-OUTPUT,16T
131441320
€ 41.00
13260
132601681
ref: 13260
GEAR,INPUT 2ND,17T
€ 110.00
13260A
132601686
ref: 13260A
GEAR,OUTPUT 2ND,33T
132601686
€ 145.50
13260B
132601880
ref: 13260B
GEAR,OUTPUT 3RD,28T
132601880
€ 147.00
13262
132620029
ref: 13262
GEAR,OUTPUT LOW,36T
132620029
€ 150.50
13262A
132620030
ref: 13262A
GEAR,OUTPUT 5TH,24T
132620030
€ 157.50
13262B
132620031
ref: 13262B
GEAR,INPUT 3RD&4TH,18
€ 160.00
13262C
132620062
ref: 13262C
GEAR,INPUT 5TH,20T
132620062
€ 126.50
13262D
132620074
ref: 13262D
GEAR,INPUT TOP,21T
€ 159.50
13262E
132620076
ref: 13262E
GEAR,OUTPUT TOP,23T
€ 180.50
13262F
132620077
ref: 13262F
(ZRT00AE001736 -
GEAR,OUTPUT 4TH,28T
€ 157.50
92022
920221109
ref: 92022
WASHER,25.3X33X1
920221109
€ 4.00
92022A
92022112
ref: 92022A
WASHER,20.5X30X1,STEE
92022112
€ 6.00
92028
920281735
ref: 92028
BUSHING,INPUT 5TH GEA
920281735
€ 17.00
92028A
920281739
ref: 92028A
BUSHING,OUTPUT,2ND
920281739
€ 17.00
92028B
920281915
ref: 92028B
BUSHING,INPUT TOP GEA
920281915
€ 18.00
92028C
920281968
ref: 92028C
BUSHING,OUTPUT,3RD&4T
€ 27.50
92033
92033015
ref: 92033
CIRCLIP
92033015
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
92033026
€ 6.00
92033B
920331249
ref: 92033B
RING-SNAP,T=1.5
920331249
€ 3.00
92045
920450003
ref: 92045
BEARING-BALL,DAC2557N
920450003
€ 118.00
92046
920461219
ref: 92046
BEARING-NEEDLE,K20X24
920461219
€ 13.00
92046A
920461303
ref: 92046A
BEARING-NEEDLE,PK20X2
920461303
€ 22.00
92139
921391090
ref: 92139
BUSHING,27X34X18.6
921391090
€ 24.00
92152
921521466
ref: 92152
COLLAR,SPROCKET
€ 14.00
92200
922001065
ref: 92200
WASHER
922001065
€ 4.50
92200A
922001239
ref: 92200A
WASHER,INPUT TOP&5TH
922001239
€ 5.00
92200B
922001375
ref: 92200B
WASHER,20.5X31X1.5
922001375
€ 3.00
92200C
922001457
ref: 92200C
WASHER,T=2.0
922001457
€ 2.50
92200D
922001522
ref: 92200D
WASHER,OUTPUT 4TH
922001522
€ 3.50
92200E
922001523
ref: 92200E
WASHER,OUTPUT 3RD
922001523
€ 4.50
92200F
922001524
ref: 92200F
WASHER,INPUT
€ 2.50
92210
922101098
ref: 92210
NUT,SPROCKET
922101098
€ 24.50
