Genuine ZR Kawasaki Parts delivered quickly!


CRANKCASE

ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

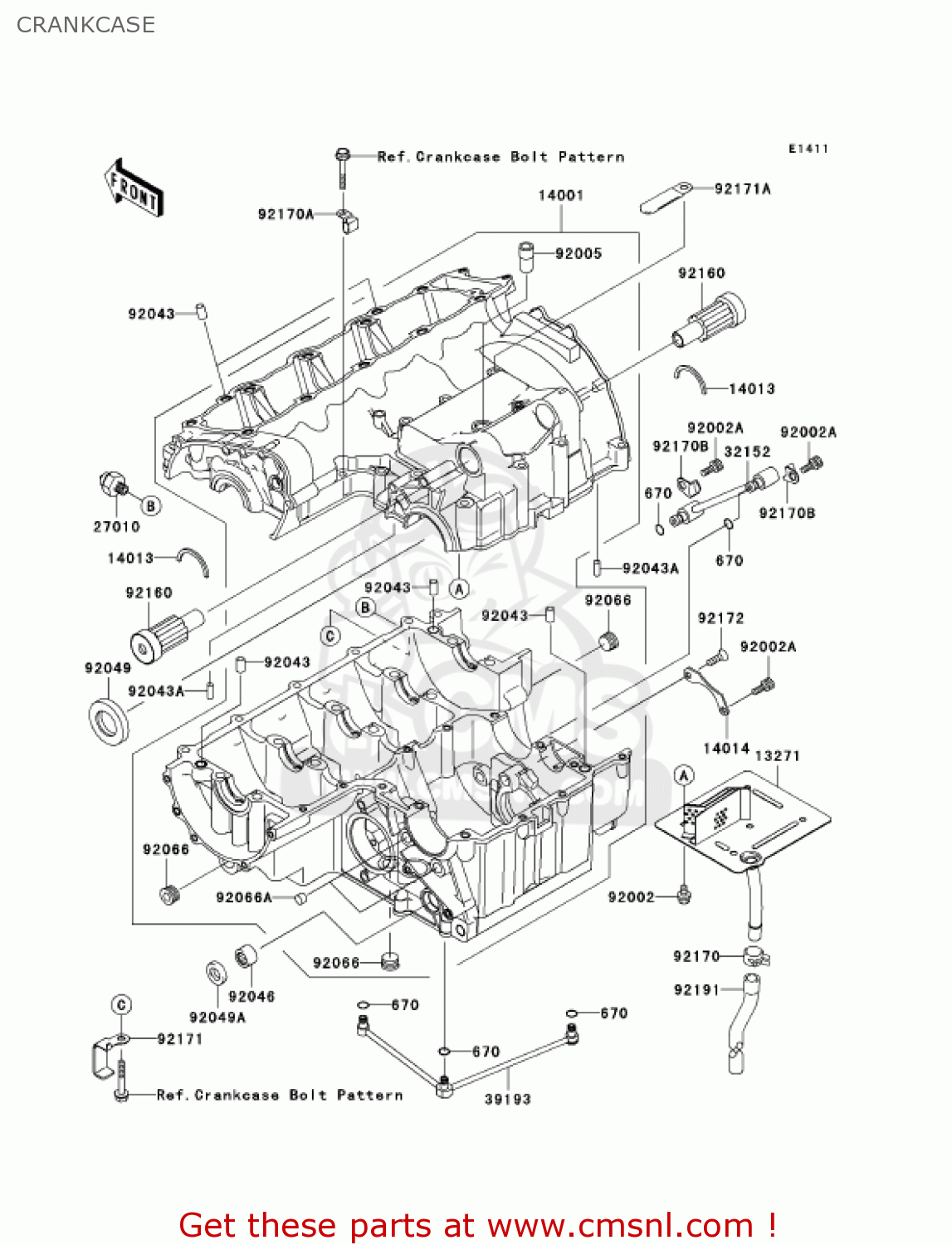

Crankcase diagram ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

CRANKCASE ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA
CRANKCASE ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA
CRANKCASE ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
670
670D1505
ref: 670
O RING
670D1505
€ 2.50
13271
132711511
ref: 13271
PLATE,BREATHER
132711511
€ 47.50
14001
140011321
ref: 14001
SET-CRANKCASE
€ 2,336.50
14013
140131051
ref: 14013
RING-POSITION
140131051
€ 1.50
14014
140141140
ref: 14014
PLATE-POSITION
€ 5.50
27010
270101313
ref: 27010
SWITCH,OIL PRESSURE
270101313
€ 28.00
32152
321521545
ref: 32152
PIPE,RH,L=76.8
€ 21.00
39193
391930014
ref: 39193
PIPE-OIL
€ 37.50
92002
920021449
ref: 92002
BOLT,6X10
920021449
€ 2.50
92002A
920021778
ref: 92002A
BOLT,SOCKET,6X16
920021778
€ 3.00
92005
920051238
ref: 92005
FITTING,BREATHER
920051238
€ 7.50
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
920431037
€ 0.50
92043A
920431690
ref: 92043A
PIN,6X16
920431690
€ 3.50
92046
92046037
ref: 92046
BEARING-NEEDLE,7E-HK1
92046037
€ 17.00
92049
920491474
ref: 92049
SEAL-OIL,TC32578
920491474
€ 12.00
92049A
920491520
ref: 92049A
SEAL-OIL,TC14245
920491520
€ 9.50
92066
920660003
ref: 92066
PLUG
920660003
€ 2.50
92066A
920661110
ref: 92066A
PLUG
920661110
€ 4.00
92160
921601868
ref: 92160
DAMPER
€ 17.00
92170
921701118
ref: 92170
CLAMP
921701118
€ 5.00
92170A
921701577
ref: 92170A
CLAMP
921701577
€ 3.00
92170B
921701578
ref: 92170B
CLAMP
921701578
€ 2.50
92171
921710070
ref: 92171
CLAMP,WATER HOSE
€ 3.50
92171A
921710092
ref: 92171A
CLAMP
921710092
€ 2.00
92172
921720090
ref: 92172
SCREW,6X16
921720090
€ 2.00
92191
921911776
ref: 92191
TUBE,BREATHER
€ 20.00
