BRAKE PEDAL/TORQUE LINK

ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

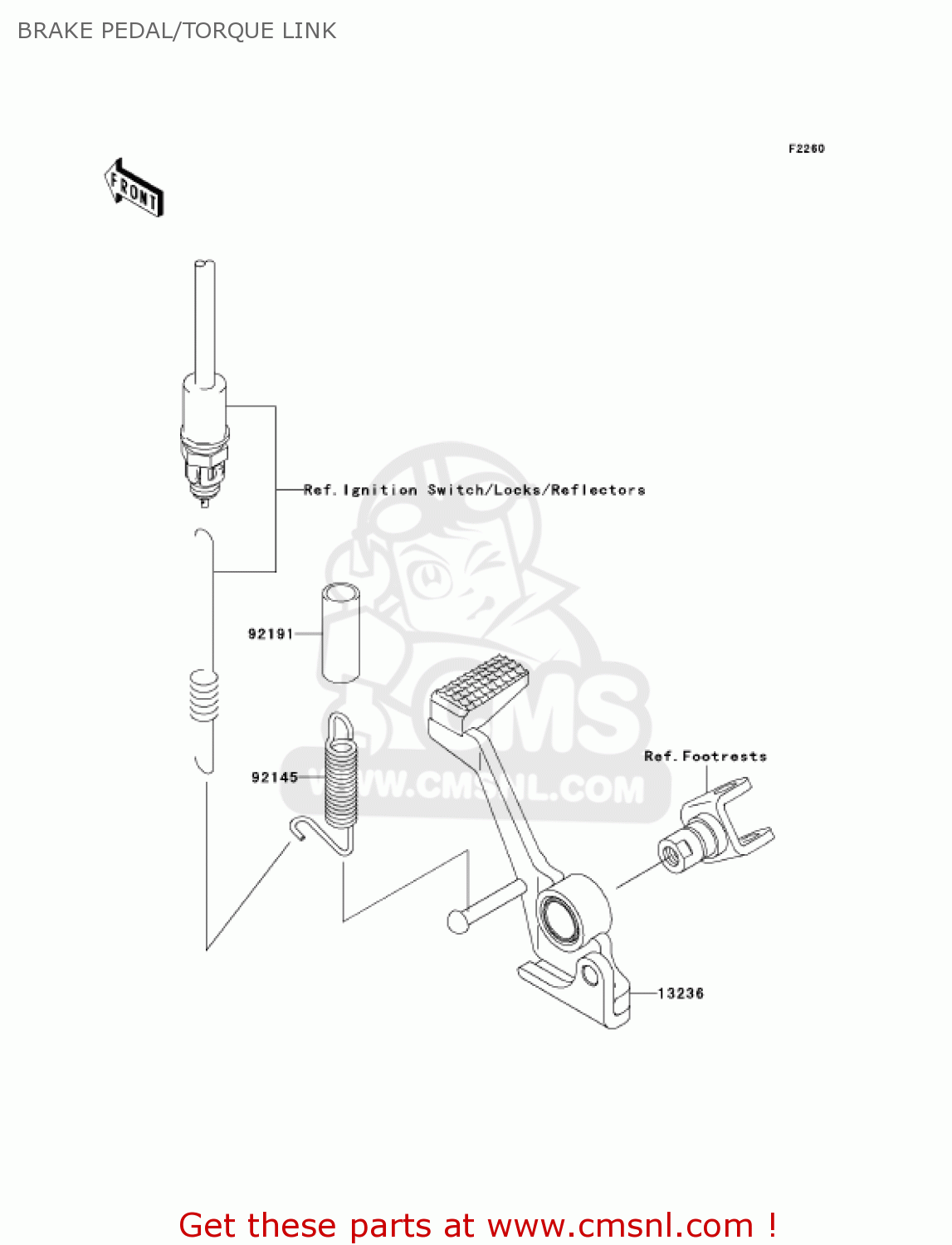

Brake pedal/torque link diagram ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

13236

132361403
ref: 13236

LEVER-COMP,BRAKE PEDA

€ 86.50

92145

921451090
ref: 92145

SPRING,BRAKE PEDAL RE

€ 3.50

92191

921911739
ref: 92191

TUBE,12X15X40

€ 1.50
