Genuine ZR Kawasaki Parts delivered quickly!


FRONT FORK

ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

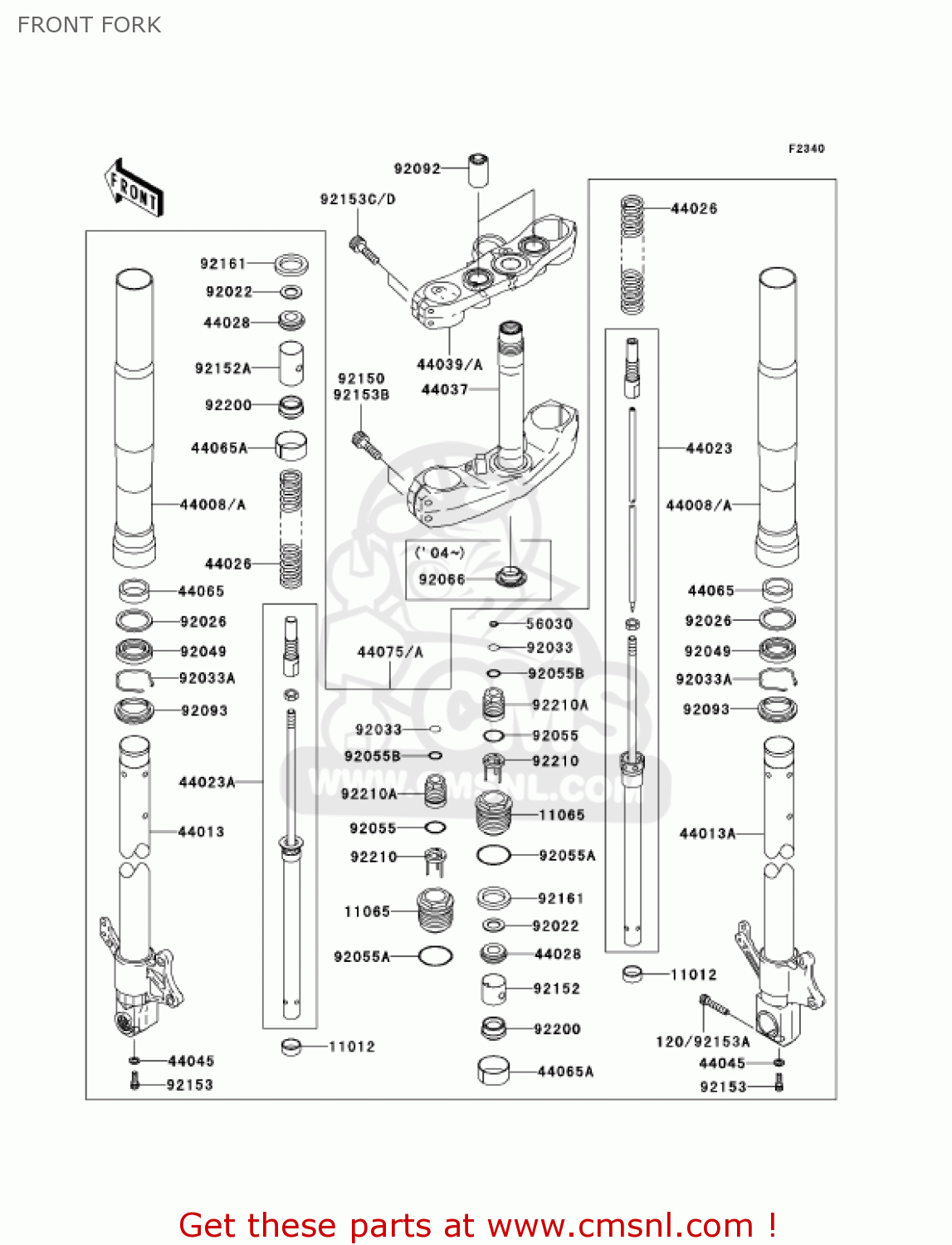

Front fork diagram ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

FRONT FORK ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA
FRONT FORK ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA
FRONT FORK ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121761
ref: 11012
CAP
110121761
€ 26.00
11065
110650011
ref: 11065
CAP
110650011
€ 38.50
44008A
440081059
ref: 44008A
PIPE-FORK OUTER
440081059
€ 434.00
44013
440131513D3
ref: 44013
PIPE-FORK INNER,LH,M.
€ 217.00
44013A
440131514D3
ref: 44013A
PIPE-FORK INNER,RH,M.
€ 227.50
44023
440230002
ref: 44023
CYLINDER-SET-FORK,RH
€ 419.50
44023A
440230003
ref: 44023A
CYLINDER-SET-FORK,LH
€ 354.00
44026
440260004
ref: 44026
SPRING-FRONT FORK
€ 64.50
44028
440281083
ref: 44028
GUIDE-FORK SPRING
440281083
€ 7.00
44037
440371444
ref: 44037
HOLDER-FORK UNDER
€ 463.50
44039A
440391335
ref: 44039A
HOLDER-FORK UPPER
€ 264.50
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
44065
440650001
ref: 44065
BUSHING-FRONT FORK
440650001
€ 14.00
44065A
440650002
ref: 44065A
BUSHING-FRONT FORK
440650002
€ 14.00
44075
440750018D3
ref: 44075
DAMPER-SET-FORK,M.M.G
€ 1,221.50
56030
560300006
ref: 56030
LABEL
€ 4.50
92022
920221713
ref: 92022
WASHER,SPRING SEAT
920221713
€ 8.00
92026
920261276
ref: 92026
SPACER,FORK OUTER
920261276
€ 6.50
92033
920330002
ref: 92033
RING-SNAP
920330002
€ 3.50
92033A
920331222
ref: 92033A
RING-SNAP,FORK OUTER
920331222
€ 4.00
92049
920491363
ref: 92049
SEAL-OIL,FORK
920491363
€ 17.50
92055
920550003
ref: 92055
RING-O
€ 3.50
92055A
920551497
ref: 92055A
RING-O,FORK CAP
920551497
€ 4.00
92055B
920551498
ref: 92055B
RING-O,FORK VALVE
€ 1.00
92066
920660032
ref: 92066
PLUG
920660032
€ 8.50
92092
920921090
ref: 92092
BUSHING-RUBBER
920921090
€ 5.00
92093
920931268
ref: 92093
SEAL,FORK
920931268
€ 16.50
92152
921520011
ref: 92152
COLLAR
921520011
€ 6.50
92152A
921520012
ref: 92152A
COLLAR
€ 10.50
92153
921530028
ref: 92153
BOLT
921530028
€ 5.50
92153A
921530536
ref: 92153A
BOLT,SOCKET,8X40
€ 2.00
92153B
921530537
ref: 92153B
BOLT,SOCKET
€ 7.50
92153C
921530538
ref: 92153C
BOLT,SOCKET
€ 8.00
92161
921610006
ref: 92161
DAMPER
€ 4.00
92200
922001464
ref: 92200
WASHER
€ 5.50
92210
922100019
ref: 92210
SPRING ADJUST PLATE
922100019
€ 14.50
92210A
922100020
ref: 92210A
NUT,SPRING ADJUSTER
€ 8.50
