IGNITION SWITCH/LOCKS/REFLECTORS

ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

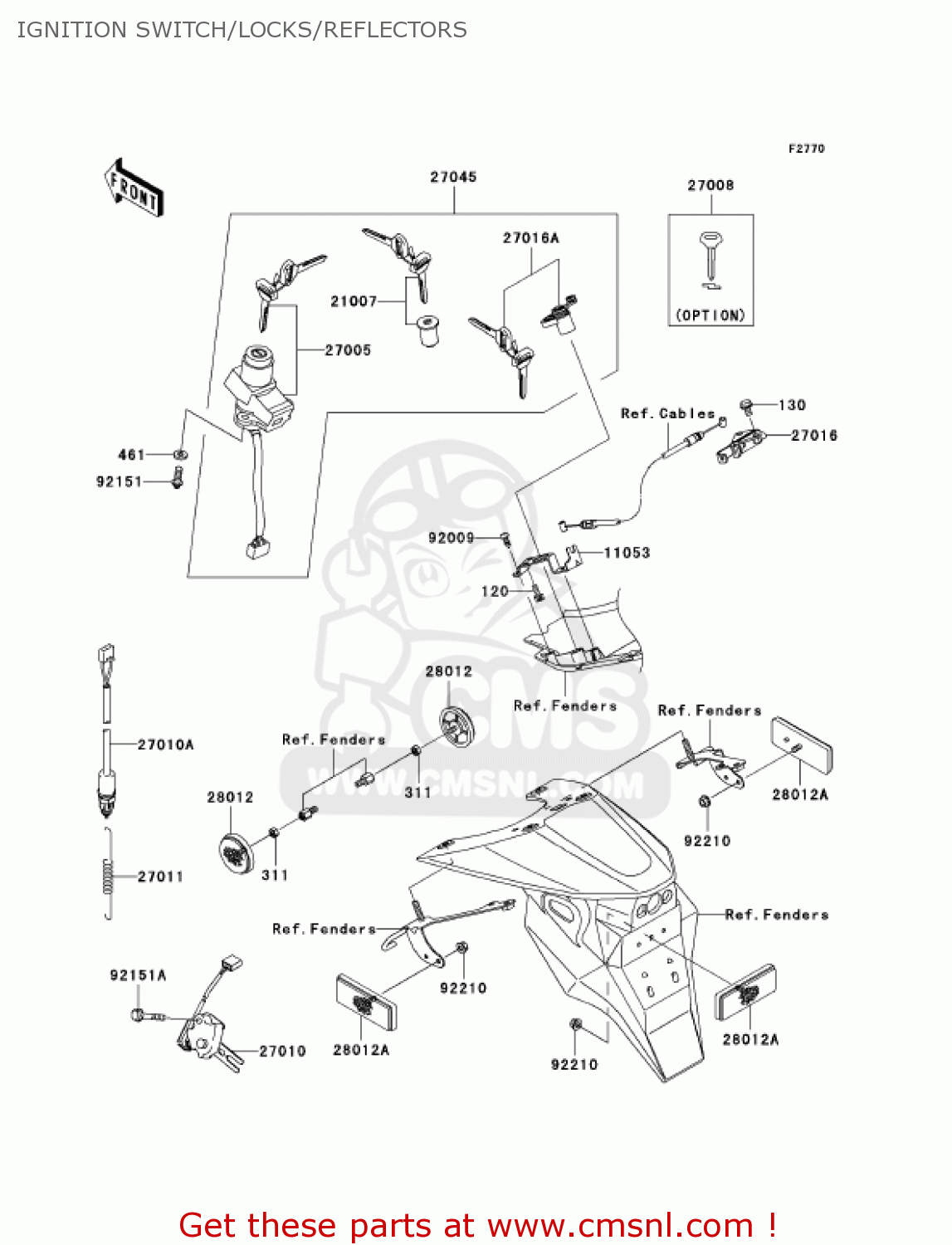

Ignition switch/locks/reflectors diagram ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

IGNITION SWITCH/LOCKS/REFLECTORS ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
311
311L0500
ref: 311
NUT-HEX
€ 1.00
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
11053
110531146
ref: 11053
BRACKET,SEAT LOCK
€ 9.00
21007
210075042
ref: 21007
ROTOR,LOCK,TANK CAP
€ 65.50
27005
270055125
ref: 27005
SWITCH-ASSY-IGNITION
€ 106.00
27008
270081189
ref: 27008
(OPTION)
KEY-LOCK,BLANK
270081189
€ 12.50
27010
270101470
ref: 27010
SWITCH,SIDE STAND
270101470
€ 53.50
27010A
270101479
ref: 27010A
SWITCH,REAR BRAKE
270101479
€ 20.00
27011
27011021
ref: 27011
SPRING,BRAKE LAMP SW
27011021
€ 15.50
27016
270161115
ref: 27016
LOCK-ASSY,SEAT STRIKE
270161115
€ 27.00
27016A
270165292
ref: 27016A
LOCK-ASSY,SEAT
€ 56.50
27045
270455184
ref: 27045
SWITCH-ASSY
€ 301.50
28012
28012016
ref: 28012
REFLECTOR REFLEX
28012016
€ 16.00
28012A
280121077
ref: 28012A
REFLECTOR-REFLEX
280121077
€ 16.00
92009
920091138
ref: 92009
SCREW,TAPPING,5X12,BL
920091138
€ 2.50
92151
921511911
ref: 92151
BOLT,TORX,6X16
921511911
€ 1.50
92151A
921511982
ref: 92151A
BOLT,6X35
921511982
€ 1.50
92210
922100007
ref: 92210
NUT,FLANGED,5MM
922100007
€ 2.00
