CRANKCASE BOLT PATTERN

ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

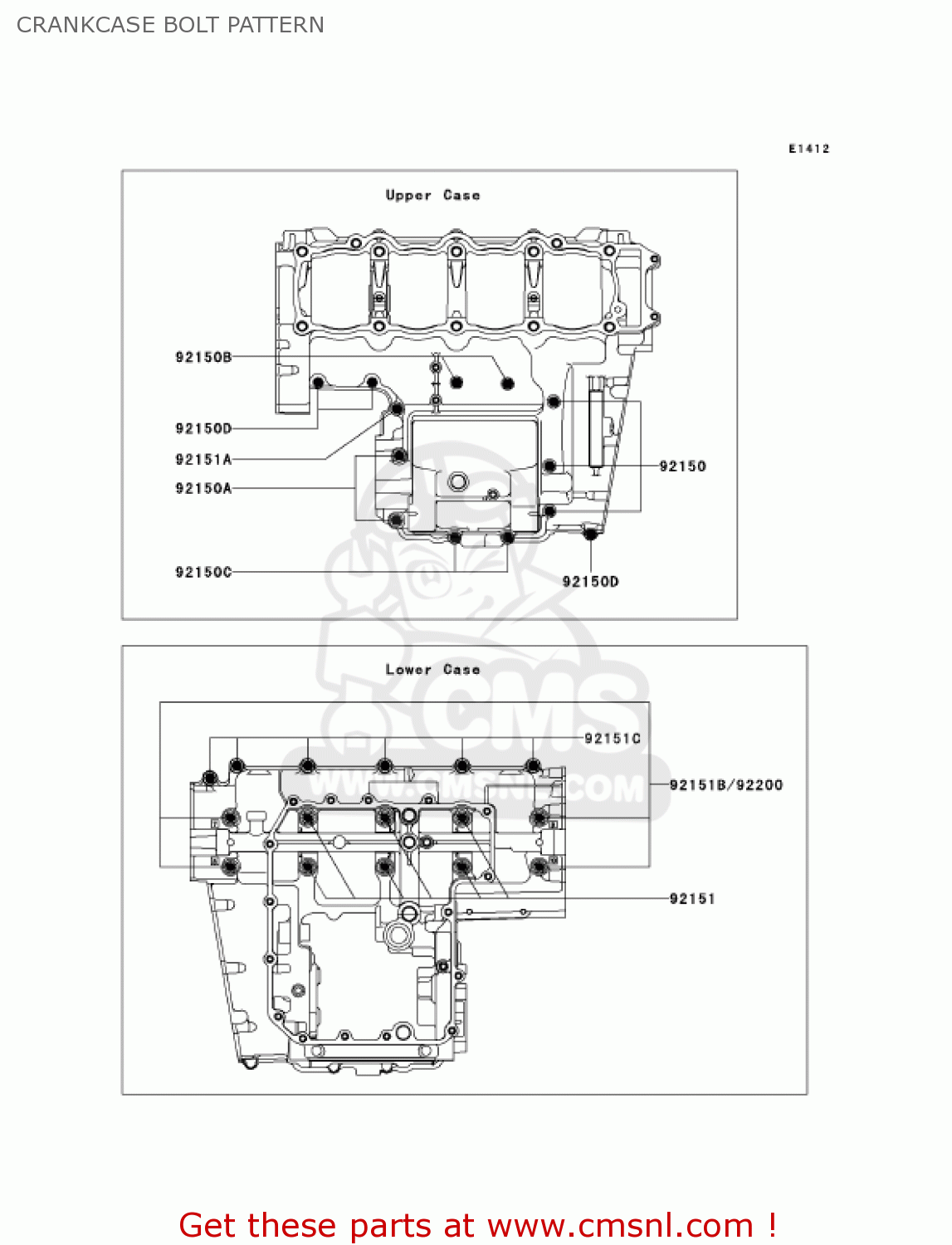

Crankcase bolt pattern diagram ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

92150

921501251
ref: 92150

BOLT,7X85

€ 8.00

92150

921501483
ref: 92150

BOLT,8X70

€ 5.00

92150

921501548
ref: 92150

BOLT,6X60

€ 3.00

92150

921501622
ref: 92150

BOLT,6X90

€ 2.00

92150

921501794
ref: 92150

BOLT, 6X40

€ 1.50

92151

921511222
ref: 92151

BOLT,9X81

€ 4.00

92151

921511223
ref: 92151

BOLT,7X50

€ 2.50

92151

921511378
ref: 92151

BOLT,FLANGED,9X95

€ 5.50

92151

921511539
ref: 92151

BOLT,7X45

€ 3.00

92200

922001426
ref: 92200

WASHER

€ 2.50
