CYLINDER/PISTON(S)

ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

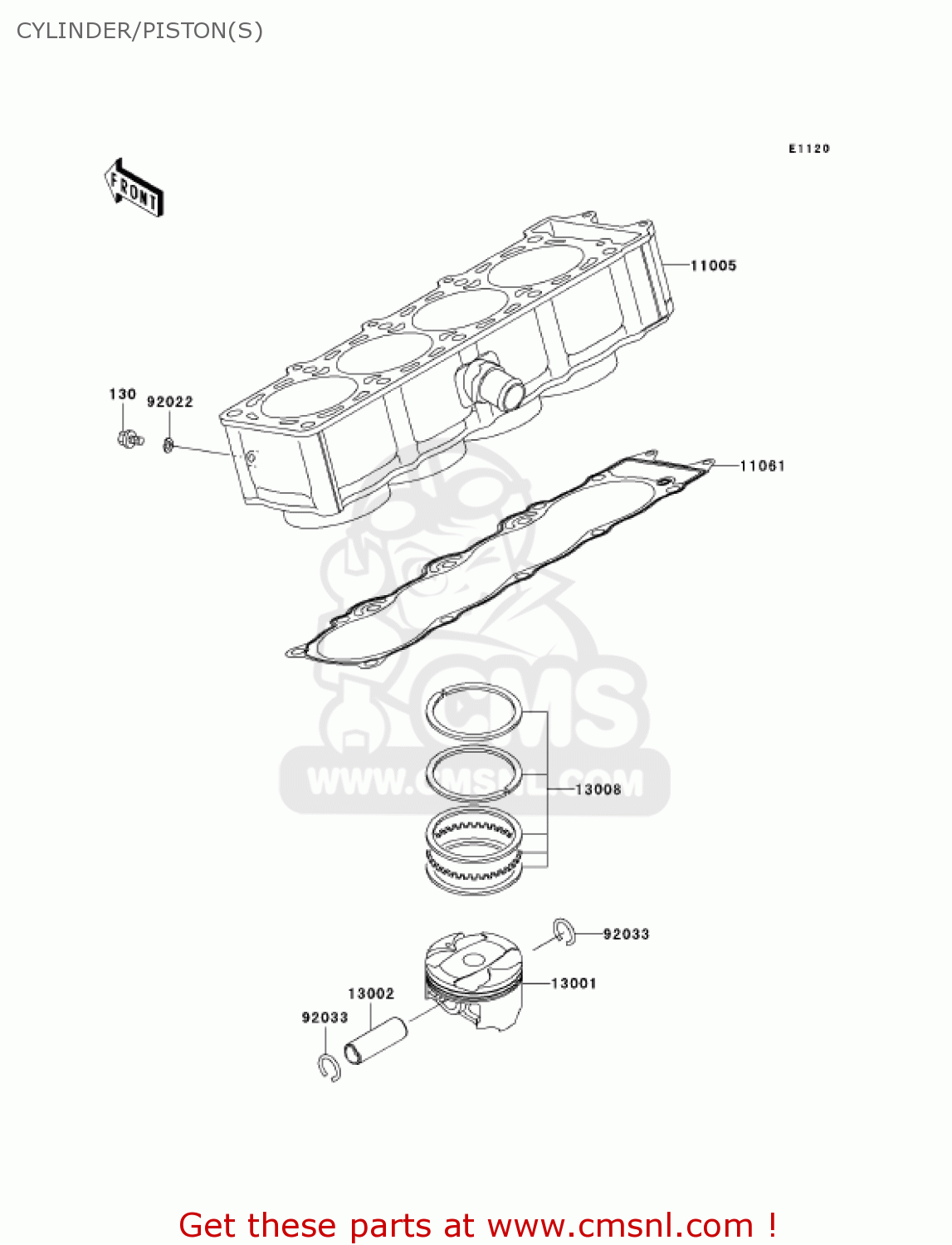

Cylinder/piston(s) diagram ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

CYLINDER/PISTON(S) ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

CYLINDER/PISTON(S) ZR1000A2 Z1000 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130Y0610
ref: 130

BOLT-FLANGED

€ 2.50

11005

110051987
ref: 11005

CYLINDER-ENGINE

€ 1,592.00

11061

110611168
ref: 11061

GASKET,CYLINDER BASE (NAS)

€ 39.00

13001

130011661
ref: 13001

PISTON-ENGINE

€ 100.50

13002

130021129
ref: 13002

PIN-PISTON

€ 20.50

13008

130081217
ref: 13008

RING-SET-PISTON

€ 57.50

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92033

920331099
ref: 92033

RING-SNAP,18MM

€ 0.50
