TAILLIGHT(S)
ZN1300A6 VOYAGER 1988 USA CALIFORNIA

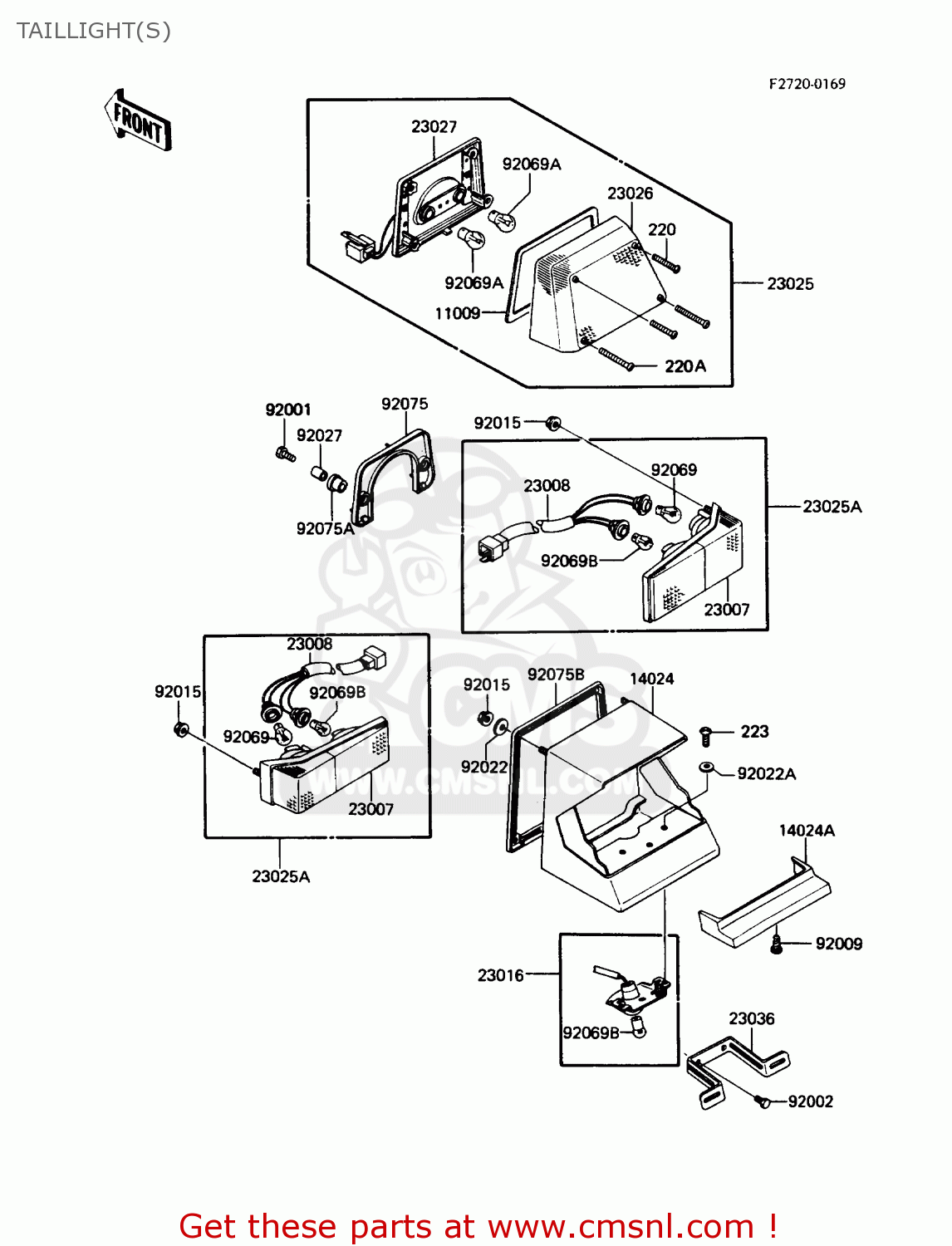

Taillight(s) diagram ZN1300A6 VOYAGER 1988 USA CALIFORNIA
TAILLIGHT(S) ZN1300A6 VOYAGER 1988 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
220
220B0445
ref: 220
SCREW-PAN-CROS
€ 2.50
220A
220B0460
ref: 220A
SCREW-PAN-CROS
€ 2.50
223
223B0412
ref: 223
SCREW-PAN-WS-CROS
€ 3.00
11009
110091098
ref: 11009
GASKET,TAIL LAMP LENS (NAS)
€ 6.50
14024
140251669
ref: 14024
COVER,TAIL LAMP,UPP
€ 143.50
14024A
140251670
ref: 14024A
COVER,LICENSE PLATE,L
€ 25.00
23007
230071101
ref: 23007
LENS-COMP,TAIL LAMP
€ 98.50
23008
230081203
ref: 23008
SOCKET-ASSY,TAIL LAMP
€ 18.50
23016
230161024
ref: 23016
LAMP-ASSY,TAIL
€ 46.00
23025
230251049
ref: 23025
LAMP-TAIL,& STOP
€ 154.00
23025A
230251050
ref: 23025A
LAMP-TAIL,& TURN SIGN
€ 98.50
23026
230261055
ref: 23026
LENS,TAIL LAMP
€ 98.50
23027
230271054
ref: 23027
BODY-COMP-TAIL LAMP
€ 67.00
23036
230361054
ref: 23036
BRACKET-TAIL LAMP
€ 11.50
92001
920011776
ref: 92001
BOLT,6X30
€ 3.00
92002
920021260
ref: 92002
BOLT,6X14
€ 0.50
92009
92008010
ref: 92009
SCREW,SEAT COVER FITT
€ 2.00
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92022
92022104
ref: 92022
WASHER-SPEEDMETR FIT
€ 2.50
92022A
920221245
ref: 92022A
WASHER,4X12X1
€ 1.50
92027
920271316
ref: 92027
COLLAR,6.8X10X17.6
€ 6.50
92069
92069055
ref: 92069
BULB 12V 32CP
€ 4.50
92069A
92069059
ref: 92069A
BULB,12V 32/3CP
€ 5.50
92069B
920691012
ref: 92069B
BULB,12V 8W 4CP
€ 4.50
92075
920751111
ref: 92075
DAMPER,TAIL LAMP
€ 15.50
92075A
920751367
ref: 92075A
DAMPER,TAIL LAMP
€ 3.00
92075B
920751471
ref: 92075B
DAMPER,LICENSE COVER
€ 25.00
