ENGINE COVER(S)
ZN1300A6 VOYAGER 1988 USA CALIFORNIA

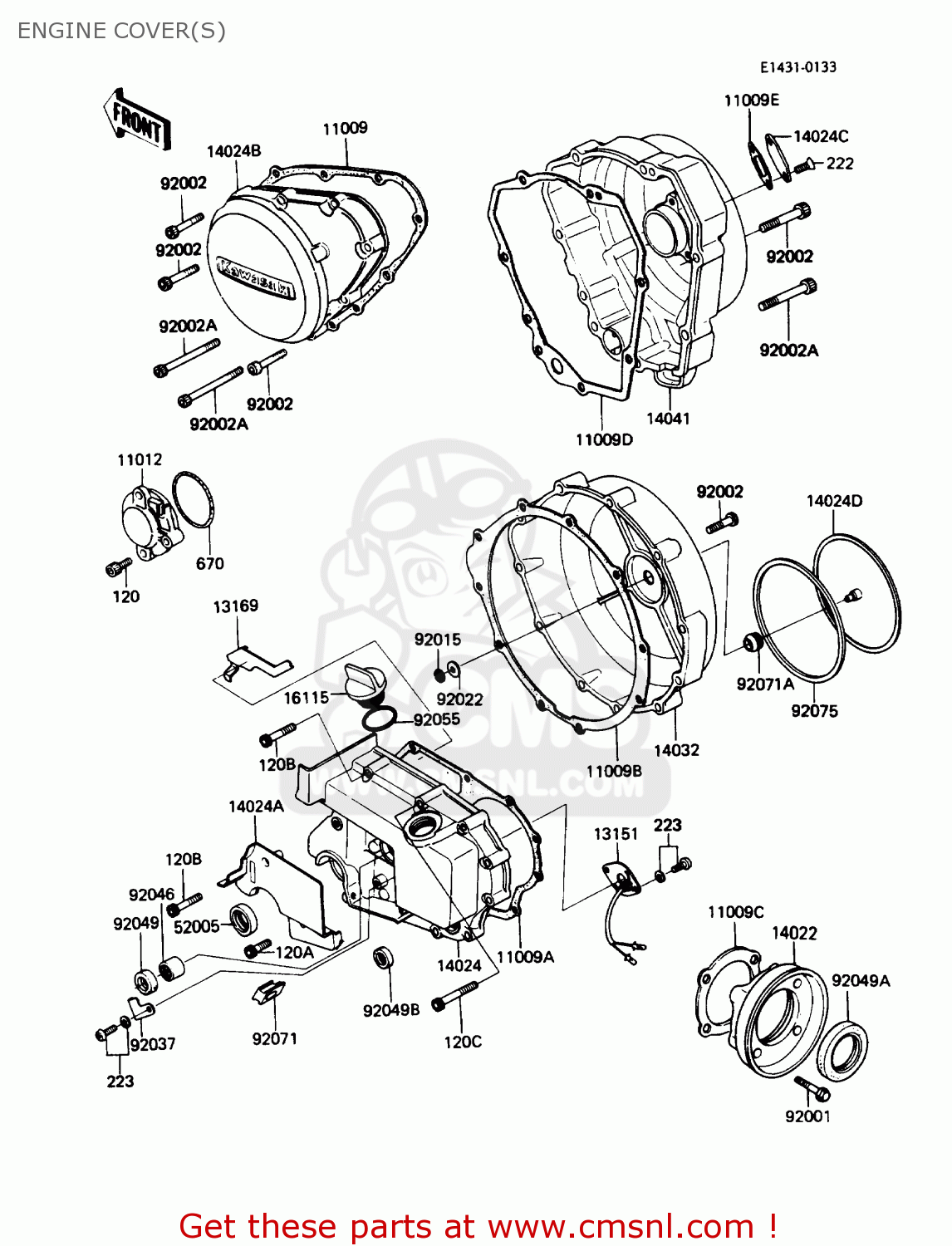

Engine cover(s) diagram ZN1300A6 VOYAGER 1988 USA CALIFORNIA
ENGINE COVER(S) ZN1300A6 VOYAGER 1988 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
120
120Z0614
ref: 120
BOLT-SOCKET,6X14
€ 2.50
120A
120Z0616
ref: 120A
BOLT-SOCKET,6X16
€ 2.50
120B
120Z0635
ref: 120B
BOLT-SOCKET,6X35
€ 3.00
120C
120Z0645
ref: 120C
BOLT-SOCKET,6X45
€ 2.50
222
222E0510
ref: 222
SCREW-OVL CNTSNK,5X10
€ 2.00
223
223B0612
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
670
670B3045
ref: 670
O RING,45MM
€ 2.50
11009
110091090
ref: 11009
GASCKET,L.H.ENG COVER (MCA)
€ 14.00
11009A
110091091
ref: 11009A
GASKET,MISSON COVER (MCA)
€ 19.00
11009B
110091092
ref: 11009B
GASKET,CLUTCH COVER (MCA)
€ 18.50
11009C
110091159
ref: 11009C
GASKET,BEARING CAP (NAS)
€ 6.00
11009D
110091269
ref: 11009D
GASKET,GENERATOR COVE (MCA)
€ 9.50
11009E
110091270
ref: 11009E
GASKET,OIL INSPECTION (MCA)
€ 9.50
11012
110121060
ref: 11012
CAP,TIMING SPROCKET
€ 18.00
13151
131511013
ref: 13151
SWITCH-COMP,NEUTRAL
€ 43.00
13169
131691131
ref: 13169
PLATE,BAFFLE,BREATHER
€ 15.50
14022
140221005
ref: 14022
CAP-BEARING,OUTLET SH
€ 27.00
14024
140251617
ref: 14024
COVER,TRANSMISSION,SI
€ 138.50
14024A
140251618
ref: 14024A
COVER,RELEASE
€ 36.00
14024B
140251703
ref: 14024B
COVER,LH,GENERATOR
€ 225.50
14024C
140251704
ref: 14024C
COVER,OIL INSPECTION
€ 11.50
14024D
140251814
ref: 14024D
COVER,CLUTCH COVER
€ 33.00
14032
140321111
ref: 14032
COVER-CLUTCH
€ 212.50
14041
140411024
ref: 14041
COVER-COMP,GENERATOR
€ 234.00
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
52005
520051017
ref: 52005
GAUGE,OIL LEVEL
€ 39.00
92001
92003202
ref: 92001
BOLT
€ 4.00
92002
920021282
ref: 92002
BOLT,6X35
€ 2.50
92002A
920021283
ref: 92002A
BOLT,6X50
€ 2.50
92015
92018004
ref: 92015
NUT,SPEED,5MM
€ 2.50
92022
92022104
ref: 92022
WASHER-SPEEDMETR FIT
€ 2.50
92037
920371152
ref: 92037
CLAMP,CABLE
€ 2.50
92046
92046037
ref: 92046
BEARING-NEEDLE,7E-HK1
€ 17.00
92049
920491037
ref: 92049
OIL SEAL,TC14244.8
€ 6.50
92049A
920491038
ref: 92049A
OIL SEAL,TC35527
€ 12.50
92049B
92051005A
ref: 92049B
OIL SEAL,TB13225.5
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92071
920711051
ref: 92071
GROMMET
€ 5.50
92071A
920711108
ref: 92071A
GROMMET,CLUTCH COVER
€ 3.50
92075
920751594
ref: 92075
DAMPER,CLUTCH COVER
€ 16.50
