FRONT BEVEL GEAR
ZN1300A6 VOYAGER 1988 USA CALIFORNIA

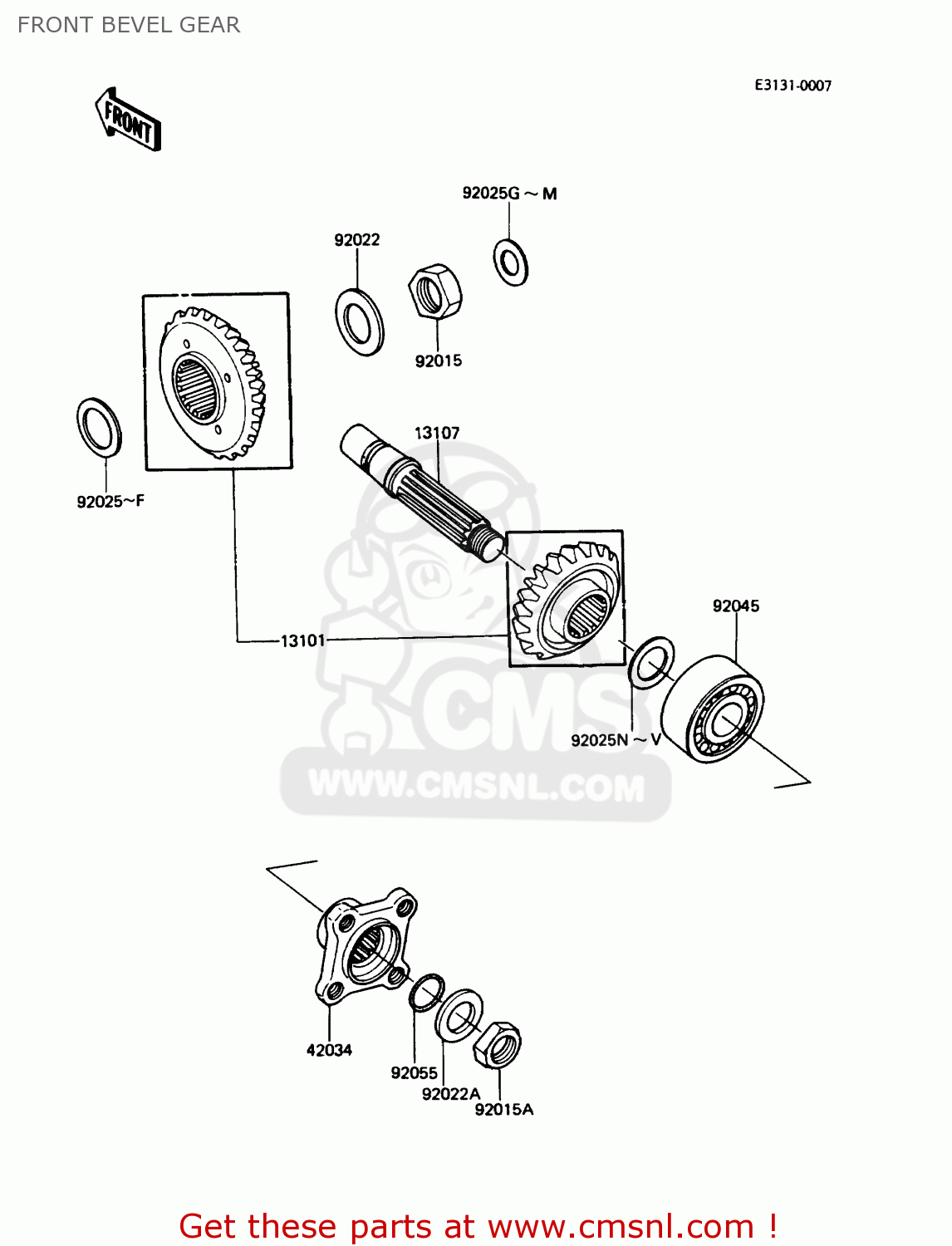

Front bevel gear diagram ZN1300A6 VOYAGER 1988 USA CALIFORNIA
FRONT BEVEL GEAR ZN1300A6 VOYAGER 1988 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
13101
131015042
ref: 13101
GEAR-ASSY,BEVEL,FR
€ 679.00
13107
131071029
ref: 13107
SHAFT,BEVEL GEAR
€ 86.50
42034
420341010
ref: 42034
COUPLING,OUTPUT SHAFT
€ 83.00
92015
920151057
ref: 92015
NUT,24MM
€ 10.50
92015A
92016028
ref: 92015A
NUT
€ 9.50
92022
920221104
ref: 92022
WASHER,24M/M,SPRING
€ 6.50
92022A
920221116
ref: 92022A
WASHER,20.3X36X2.3
€ 5.50
92025
920251006
ref: 92025
SHIM,30.3X40X0.6
€ 6.00
92025A
920251007
ref: 92025A
SHIM,30.3X40X0.9
€ 4.50
92025B
920251008
ref: 92025B
SHIM,30.3X40X1.2
€ 3.00
92025C
920251009
ref: 92025C
SHIM,30.3X40X0.1
€ 4.50
92025D
920251010
ref: 92025D
SHIM,30.3X40X0.15
€ 4.50
92025E
920251011
ref: 92025E
SHIM,30.3X40X0.20
€ 4.50
92025F
920251012
ref: 92025F
SHIM,30.3X40X0.30
€ 5.50
92025G
920251020
ref: 92025G
SHIM,15.3X27.5X0.6
€ 3.50
92025H
920251021
ref: 92025H
SHIM,15.3X27.5X0.90
€ 4.50
92025I
920251022
ref: 92025I
SHIM,15.3X27.5X1.20
€ 4.50
92025J
920251023
ref: 92025J
SHIM,15.3X27.5X0.10
€ 4.50
92025K
920251024
ref: 92025K
SHIM,15.3X27.5X0.15
€ 3.00
92025L
920251025
ref: 92025L
SHIM,15.3X27.5X0.20
€ 4.50
92025M
920251026
ref: 92025M
SHIM,15.3X27.5X0.30
€ 4.50
92025N
920251688
ref: 92025N
SHIM,25.3X36X0.15
€ 5.50
92025O
920251689
ref: 92025O
SHIM,25.3X36X0.50
€ 5.50
92025P
920251690
ref: 92025P
SHIM,25.3X36X0.60
€ 5.50
92025Q
920251691
ref: 92025Q
SHIM,25.3X36X0.70
€ 5.50
92025R
920251692
ref: 92025R
SHIM,25.3X36X0.80
€ 5.50
92025S
920251693
ref: 92025S
SHIM,25.3X36X0.90
€ 5.50
92025T
920251694
ref: 92025T
SHIM,25.3X36X1.0
€ 5.50
92025U
920251695
ref: 92025U
SHIM,25.3X36X1.1
€ 5.50
92025V
920251696
ref: 92025V
SHIM,25.3X36X1.2
€ 5.50
92045
920451147
ref: 92045
BEARING-BALL,5305SH2C
€ 94.50
92055
920551029
ref: 92055
RING-O,20.5MM
€ 3.00
