FRONT FORK
ZN1300A6 VOYAGER 1988 USA CALIFORNIA

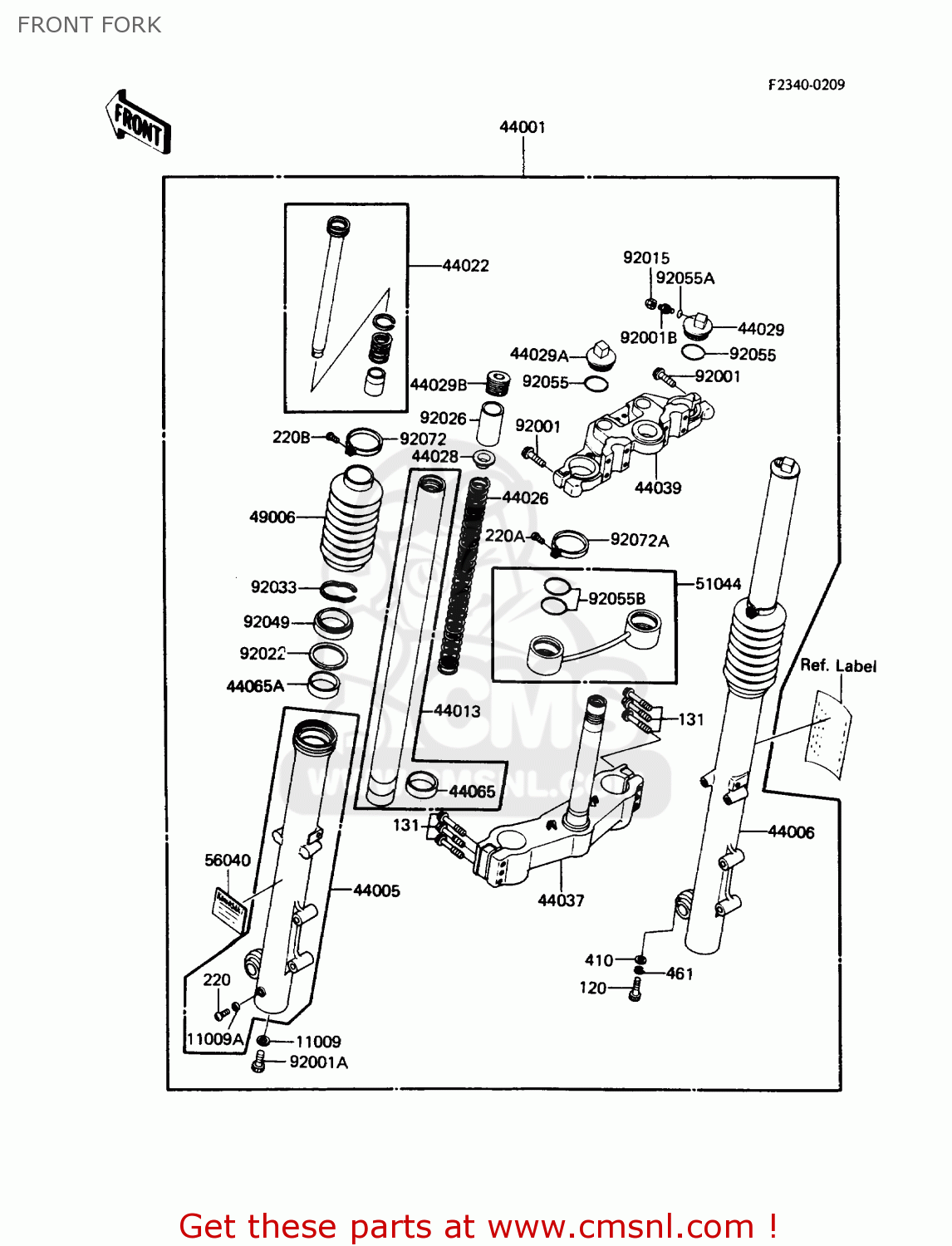

Front fork diagram ZN1300A6 VOYAGER 1988 USA CALIFORNIA
FRONT FORK ZN1300A6 VOYAGER 1988 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
120
120S0830
ref: 120
BOLT-SOCKET,8X30,BLAC
€ 3.00
131
131G0845
ref: 131
BOLT,FLANGED,8X45
€ 1.00
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0414
ref: 220A
SCREW-PAN-CROS
€ 2.00
220B
220B0416
ref: 220B
SCREW-PAN-CROS
€ 2.00
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44001
440011463
ref: 44001
FORK-FRONT
€ 1,221.00
44005
440051132
ref: 44005
PIPE-LEFT FORK OUTER
€ 346.50
44006
440061132
ref: 44006
PIPE-RIGHT FORK OUTER
€ 350.50
44013
440131206
ref: 44013
PIPE-FORK INNER
€ 180.00
44022
440221156
ref: 44022
CYLINDER-FORK
€ 87.00
44026
440261261
ref: 44026
SPRING-FRONT FORK
€ 46.50
44028
440281051
ref: 44028
GUIDE-FORK SPRING
€ 4.00
44029
440291102
ref: 44029
SEAT-FORK SPRING,RH
€ 26.50
44029A
440291103
ref: 44029A
SEAT-FORK SPRING,LH
€ 26.50
44029B
440291104
ref: 44029B
SEAT-FORK-SPRING
€ 14.50
44037
440371112
ref: 44037
HOLDER-FORK UNDER
€ 309.00
44039
440391076
ref: 44039
HOLDER-FORK UPPER
€ 256.50
44065
440651056
ref: 44065
PISTON-FORK
€ 17.00
44065A
440651064
ref: 44065A
BUSHING-FRONT FORK
€ 21.00
49006
490061159
ref: 49006
BOOT,FRONT FORK
€ 48.50
51044
510441025
ref: 51044
TUBE-ASSY,FRONT FORK
€ 99.50
56040
560401110
ref: 56040
LABEL-WARNING,FRONT F
€ 2.50
92001
920011189
ref: 92001
BOLT,10X45
€ 6.00
92001A
920011309
ref: 92001A
BOLT,FORK CYLINDER
€ 4.50
92001B
920011878
ref: 92001B
BOLT,NIPPLE
€ 13.00
92015
920151326
ref: 92015
NUT,CAP
€ 6.50
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
€ 5.50
92026
920261222
ref: 92026
SPACER,FRONT FORK
€ 3.00
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92049
920491164
ref: 92049
SEAL-OIL
€ 13.00
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
92055A
920551100
ref: 92055A
O-RING
€ 1.00
92055B
920551106
ref: 92055B
RING-O,FORK AIR TUBE
€ 3.50
92072
920721077
ref: 92072
BAND,BOOT
€ 7.00
92072A
920721157
ref: 92072A
BAND
€ 5.50
