METER(S)
ZN1300A6 VOYAGER 1988 USA CALIFORNIA

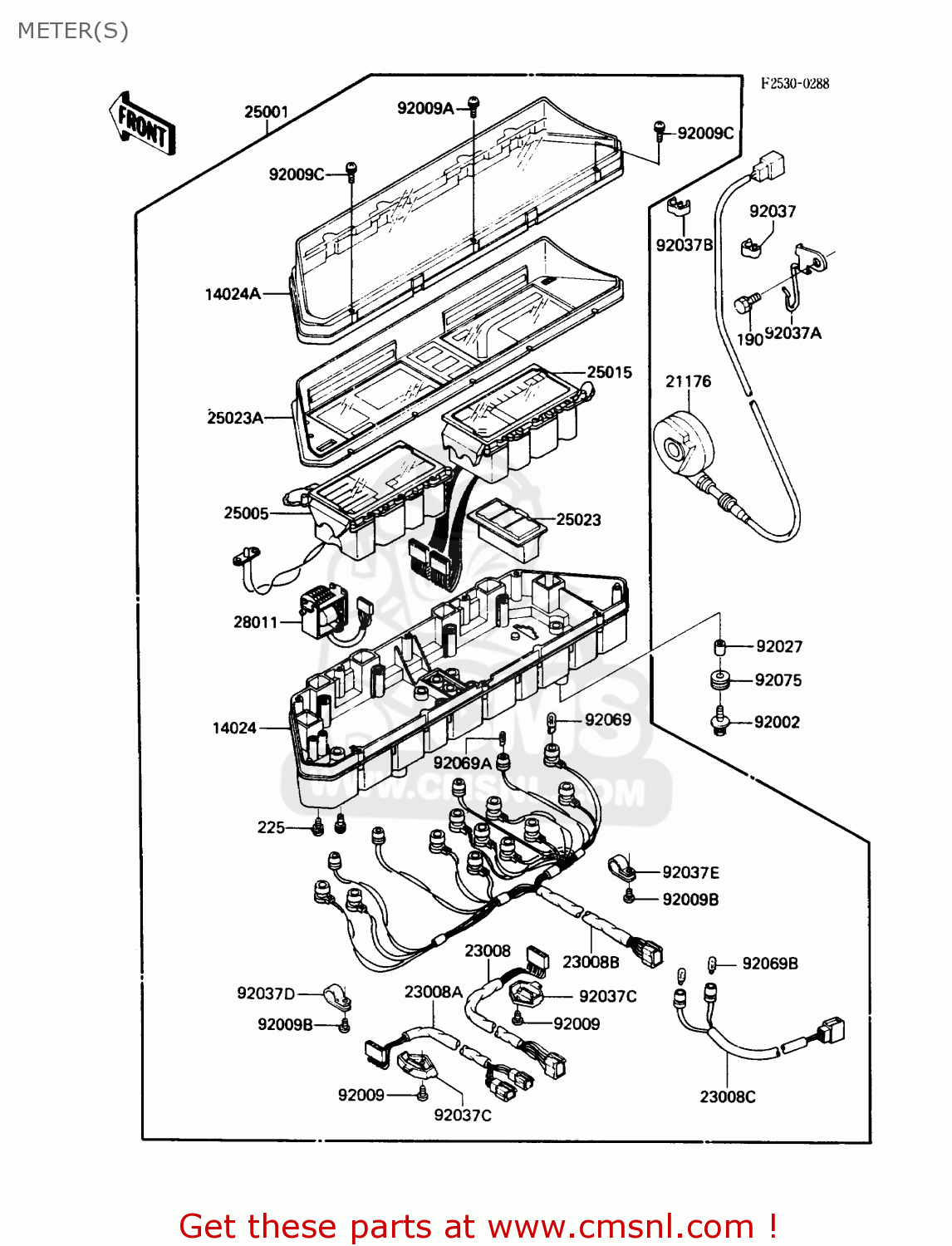

Meter(s) diagram ZN1300A6 VOYAGER 1988 USA CALIFORNIA
METER(S) ZN1300A6 VOYAGER 1988 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
190
190C1014
ref: 190
BOLT-UPSET-WS,10X14
€ 1.50
225
225B0410
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
14024
140241596
ref: 14024
METER COVER,LOWER
€ 90.00
14024A
140251794
ref: 14024A
COVER,METER,UPP
€ 87.00
21176
211761053
ref: 21176
SENSOR
€ 374.00
23008
230081206
ref: 23008
SOCKET-ASSY,TACHOMETE
€ 34.00
23008A
230081207
ref: 23008A
SOCKET-ASSY,SPEEDOMET
€ 35.50
23008B
230081208
ref: 23008B
SOCKET-ASSY,PILOT LAM
€ 140.50
23008C
230081350
ref: 23008C
CRUISE LAMP SOCKET ASSEMBLY
€ 26.00
25001
250011705
ref: 25001
METER ASSEMBLY,MPH
€ 2,141.00
25005
250051373
ref: 25005
SPEEDOMETER,LCD,MPH
€ 728.00
25015
250151203
ref: 25015
TACHOMETER,LCD,X1000
€ 891.50
25023
250231105
ref: 25023
COVER-METER CASE,PILO
€ 21.00
25023A
250231160
ref: 25023A
METER CASE COVER
€ 161.50
28011
280111055
ref: 28011
ODOMETER
€ 112.00
92002
920021137
ref: 92002
BOLT,6X25
€ 2.50
92009
920091028
ref: 92009
SCREW,COUNTERSUNK,3X8
€ 2.00
92009A
920091280
ref: 92009A
SCREW,TAPPING,3X18
€ 2.00
92009B
920091503
ref: 92009B
SCREW,TAPPING,4X14
€ 2.50
92009C
920091504
ref: 92009C
SCREW,TAPPING,3X14
€ 3.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92037
920371249
ref: 92037
CLAMP,HOSE
€ 3.50
92037A
920371453
ref: 92037A
CLAMP,SPEED CENCER
€ 7.50
92037B
920371458
ref: 92037B
CLAMP,BRAKE HOSE & SE
€ 4.00
92037C
920371478
ref: 92037C
CLAMP,METER,SOCKET AS
€ 3.50
92037D
920371479
ref: 92037D
CLAMP,METER,SOCKET AS
€ 6.00
92037E
920371616
ref: 92037E
CLAMP,NYLON
€ 3.50
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691051
ref: 92069A
BULB,12V1.4W T-5
€ 2.50
92069B
920691068
ref: 92069B
BULB,14V 3W
€ 2.50
92075
92075209
ref: 92075
DAMPER RUBBER
€ 3.00
