Genuine ZN Kawasaki Parts delivered quickly!
home
COWLING
ZN1300A6 VOYAGER 1988 USA CALIFORNIA

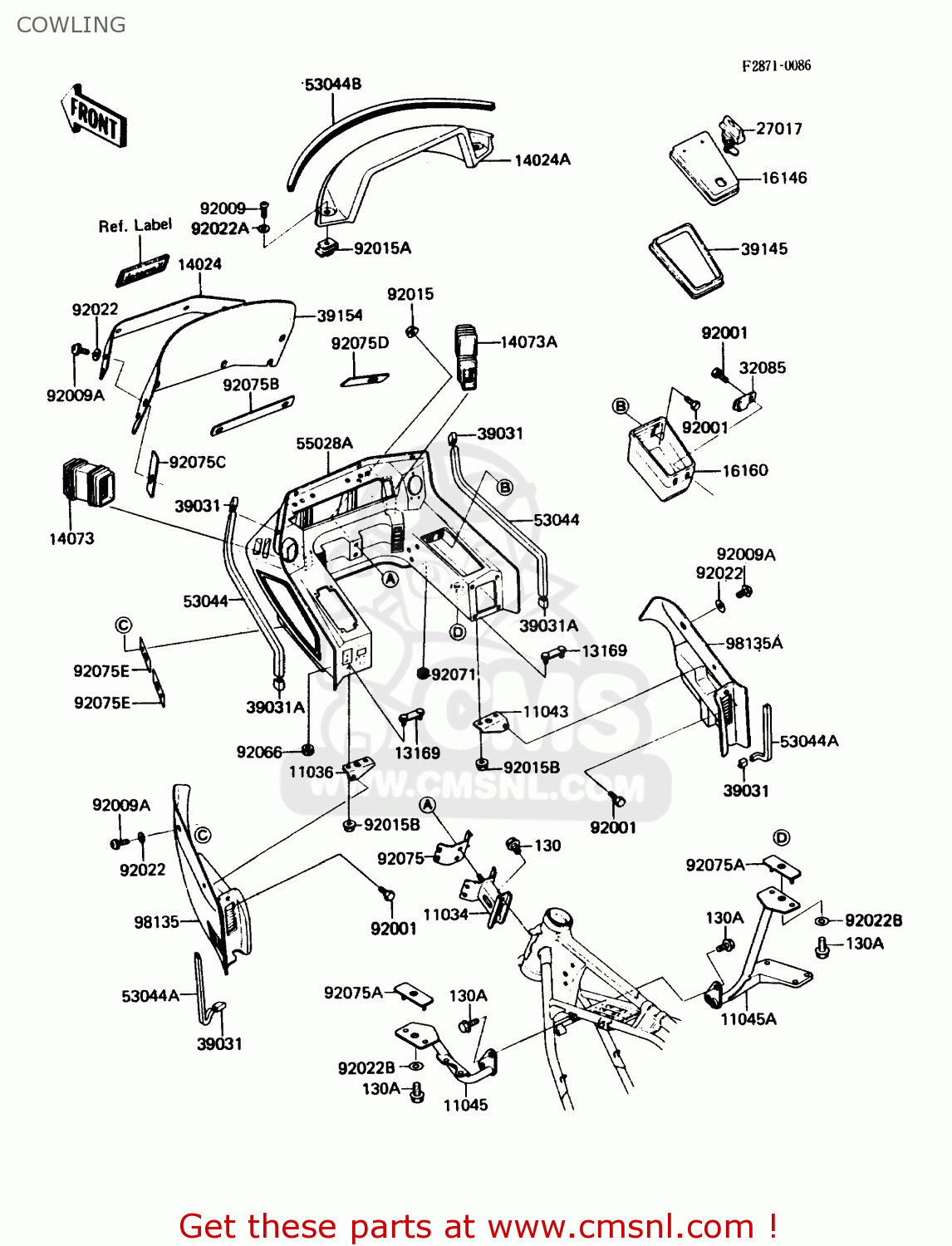

Cowling diagram ZN1300A6 VOYAGER 1988 USA CALIFORNIA
COWLING ZN1300A6 VOYAGER 1988 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11034
110341485
ref: 11034
BRACKET,COWLING
€ 46.00
11036
110361996
ref: 11036
BRACKET-A,COWLING,LH
€ 6.00
11043
110431055
ref: 11043
BRACKET-B,COWLING,RH
€ 4.50
11045
110451985
ref: 11045
COWLING BRACKET,UPPER,LH
€ 47.50
11045A
110451986
ref: 11045A
COWLING BRACKET,UPPER,RH
€ 26.50
13169
131691612
ref: 13169
PLATE,COWLING BLACKET
€ 4.00
14024
140251663
ref: 14024
COVER,WIND SHIELD
€ 197.50
14024A
140251784
ref: 14024A
COVER,METER
€ 230.00
14073
140731101
ref: 14073
DUCT,COWLING,LH
€ 17.00
14073A
140731102
ref: 14073A
DUCT,COWLING,RH
€ 10.00
16146
161461014
ref: 16146
COVER-ASSY,COWLING PO
€ 142.50
16160
161601013
ref: 16160
BODY,STRAGE CASE
€ 134.50
27017
270171103
ref: 27017
LOCK,BAG
€ 38.00
32085
320851159
ref: 32085
STOPPER,COWLING COVER
€ 3.50
39031
390311052
ref: 39031
CAP-END,COWLING TRIM
€ 3.50
39031A
390311054
ref: 39031A
CAP-END,COWLING TRIM
€ 4.00
39145
391451007
ref: 39145
TRIM-SEAL,STORAGE CAS
€ 8.50
39154
391541013
ref: 39154
WINDSHIELD,COWLING
€ 531.50
53044
530441043
ref: 53044
TRIM,COWLING,UPP
€ 7.50
53044A
530441044
ref: 53044A
TRIM,COWLING,LWR
€ 4.50
53044B
530441113
ref: 53044B
TRIM,METER COVER
€ 10.00
55028A
550285356T1
ref: 55028A
COWLING,UPP,RED
€ 2,614.50
92001
920011825
ref: 92001
BOLT
€ 2.50
92009
920091182
ref: 92009
SCREW,5X12,BLACK
€ 1.50
92009A
920091256
ref: 92009A
SCREW,6X22,BLACK
€ 1.50
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151261
ref: 92015A
NUT,COVER,SIDE
€ 4.50
92015B
920151367
ref: 92015B
NUT,FLANGED,6MM
€ 0.50
92022
920221143
ref: 92022
WASHER,6.5X16X1
€ 2.50
92022A
920221405
ref: 92022A
WASHER,5.5X20X1.2
€ 2.50
92022B
92022195
ref: 92022B
WASHER-PLAIN
€ 2.50
92066
92074027
ref: 92066
PLUG,25X2.5
€ 6.50
92071
920711021
ref: 92071
GROMMET,WIRING HARNES
€ 3.50
92075
920751179
ref: 92075
DAMPER,COWLING FITTIN
€ 8.00
92075A
920751180
ref: 92075A
DAMPER,COWLING FITT
€ 5.00
92075B
920751466
ref: 92075B
DAMPER,WIND SHIELD
€ 6.00
92075C
920751579
ref: 92075C
DAMPER,COWLING,UPP,LH
€ 8.50
130
130D0814
ref: 130
BOLT-FLANGED
€ 0.50
130A
130G0816
ref: 130A
BOLT-FLANGED,8X16
€ 0.50
92075D
920751580
ref: 92075D
DAMPER,COWLING,UPP,RH
€ 6.50
92075E
920751583
ref: 92075E
DAMPER,COWLING
€ 3.50
98135
981351053P5
ref: 98135
COWLING SUB-ASSEMBLY,LUMINOUS VINTAGE RED
€ 551.00
98135A
981351060P5
ref: 98135A
SUB ASSY COWL. LWR R
€ 1,494.00
