ACCESSORY
ZN1300A6 VOYAGER 1988 USA CALIFORNIA

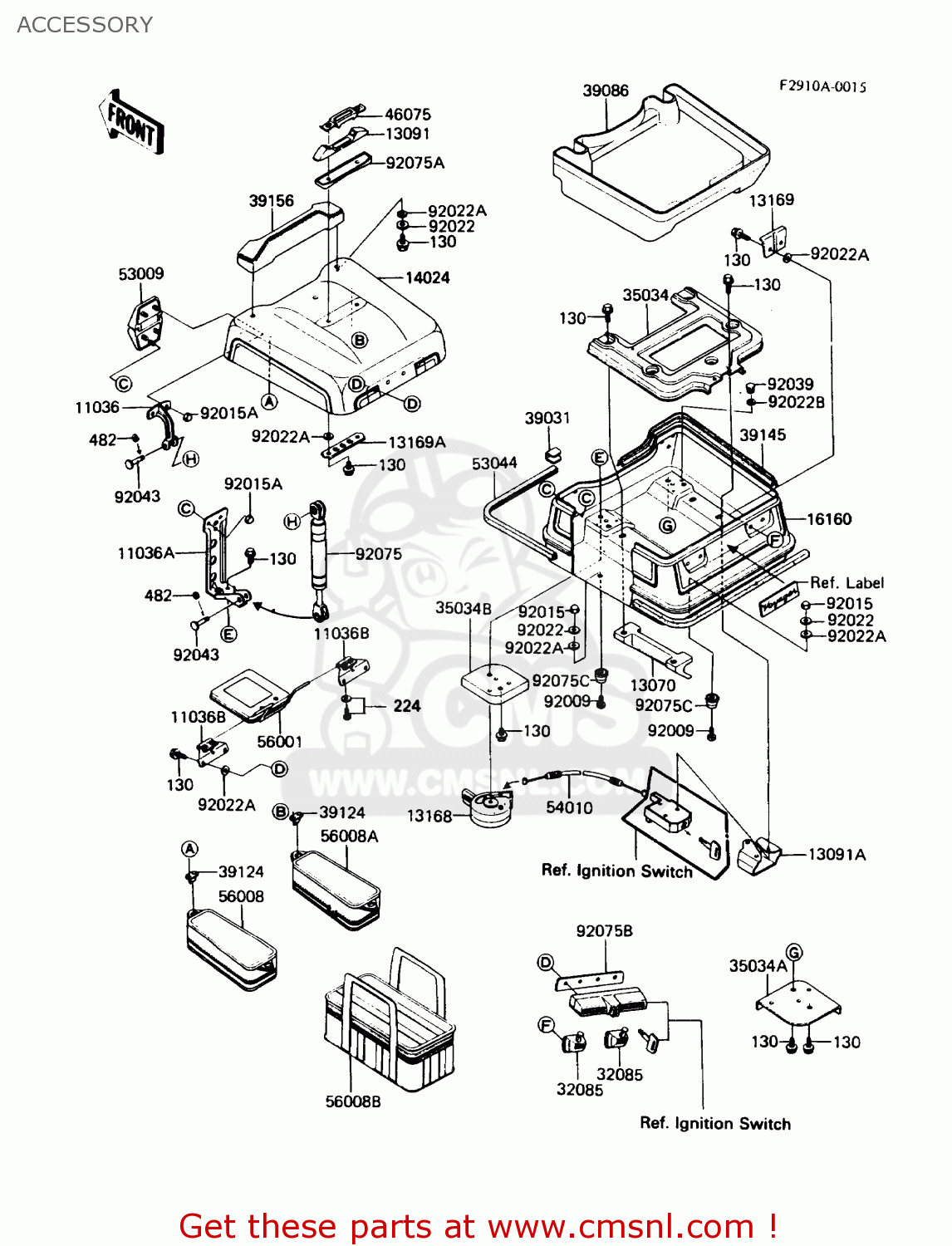

Accessory diagram ZN1300A6 VOYAGER 1988 USA CALIFORNIA
ACCESSORY ZN1300A6 VOYAGER 1988 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11036
110361866
ref: 11036
BRACKET-A,TRUNK DAMPE
€ 9.50
11036A
110361867
ref: 11036A
BRACKET-A,TRUNK DAMPE
€ 19.50
11036B
110361893
ref: 11036B
BRACKET-A,TRUNK COVER
€ 7.50
13070
130701079
ref: 13070
GUIDE,TRUNK
€ 39.50
13091
130911179
ref: 13091
HOLDER,TRUNK GRIP
€ 25.00
13091A
130911256
ref: 13091A
HOLDER,TRUNK LOCK
€ 15.00
13168
131681141
ref: 13168
LEVER,TRUNK LOCK
€ 34.00
13169
131691590
ref: 13169
PLATE,TRUNK STOPPER
€ 3.00
13169A
131691591
ref: 13169A
PLATE,TRUNK
€ 5.50
14024
140245040P5
ref: 14024
TRUNK COVER,LUMINOUS VINTAGE RED
€ 366.00
16160
161605013P5
ref: 16160
BODY,TRUNK,L.V.RED
€ 918.50
32085
320851125
ref: 32085
STOPPER,TRUNK LOCK
€ 18.00
35034
350341089
ref: 35034
REINFORCE,TRUNK BOTTO
€ 35.00
35034A
350341154
ref: 35034A
REINFORCE,TRUNK DAMPE
€ 4.00
35034B
350341156
ref: 35034B
REINFORCE,TRUNK DAMPE
€ 4.00
39031
390311053
ref: 39031
CAP-END,TRUNK TRIM
€ 2.00
39086
390861001
ref: 39086
PAD-STORAGE,TRUNK
€ 140.50
39124
391241001
ref: 39124
SNAP,TRUNK BAG
€ 1.50
39145
391451002
ref: 39145
TRIM-SEAL,TRUNK
€ 40.00
39156
391561060
ref: 39156
TRUNK PAD
€ 117.50
46075
460751034
ref: 46075
GRIP,TRUNK
€ 30.00
53009
530091035
ref: 53009
HINGE,TRUNK
€ 41.00
53044
530441041
ref: 53044
TRIM,TRUNK SIDE
€ 19.00
54010
540101007
ref: 54010
CABLE,TRUNK LOCK
€ 28.50
56001
560011137
ref: 56001
MIRROR-ASSY
€ 104.00
56008
560081021
ref: 56008
BAG,LH
€ 87.50
56008A
560081022
ref: 56008A
BAG,RH
€ 87.50
56008B
560081024
ref: 56008B
BAG,CRT,INNER
€ 196.00
92009
920091066
ref: 92009
SCREW,6X28
€ 2.00
92015
920151262
ref: 92015
NUT,LOCK 6MM
€ 3.50
92015A
920151263
ref: 92015A
NUT,LOCK 5MM
€ 4.50
92022
920221392
ref: 92022
WASHER,7X28X1.6,BLACK
€ 3.00
92022A
920221477
ref: 92022A
WASHER,RUBBER
€ 2.50
92022B
920221483
ref: 92022B
WASHER,3.5X10X1.0
€ 1.50
92039
920391041
ref: 92039
RIVET
€ 2.50
92043
920431142
ref: 92043
PIN
€ 6.00
92075
920751449
ref: 92075
DAMPER,GASS
€ 83.00
92075A
920751451
ref: 92075A
DAMPER,TRUNK GRIP
€ 3.00
92075B
920751479
ref: 92075B
DAMPER,TRUNK LOCK
€ 17.00
92075C
920751510
ref: 92075C
DAMPER,TRUNK & SIDEBA
€ 9.00
130
130C0616
ref: 130
BOLT-FLANGED,6X16
€ 1.50
224
224C0514
ref: 224
SCREW-PAN-WP-CROS,5X1
€ 0.50
482
482L4000
ref: 482
CIRCLIP-TYPE-E,4MM
€ 0.50
