Genuine ZN Kawasaki Parts delivered quickly!


WATER PUMP

ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

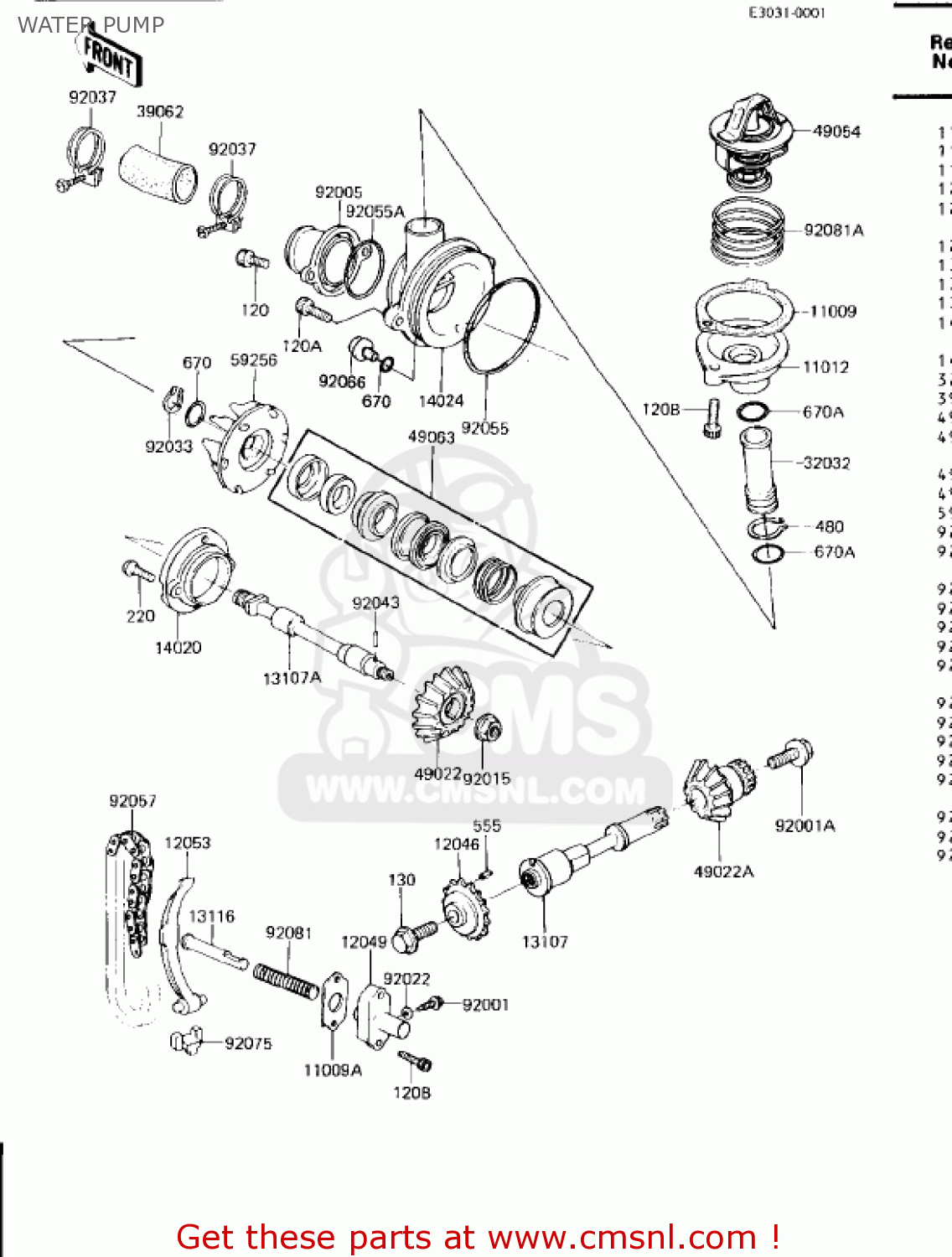

Water pump diagram ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

WATER PUMP ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA
WATER PUMP ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA
WATER PUMP ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091087
ref: 11009
GASKET,THERMOSTAT CAP (NAS)
110091087
€ 4.00
11009A
110091099
ref: 11009A
GASKET,TIMING CHAIN T (NAS)
110091099
€ 2.50
11012
110121054
ref: 11012
CAP,THERMOSTAT
€ 19.00
12046
120461015
ref: 12046
SPROCKET,TIMING CHAIN
120461015
€ 51.00
12049
120491007
ref: 12049
TENSIONER,TIMING CHAI
120491007
€ 25.50
12053
120531027
ref: 12053
GUIDE,CHAIN TIMING
120531027
€ 38.00
13107
131071009
ref: 13107
SHAFT,WATER PUMP DRIV
€ 71.50
13107A
131071011
ref: 13107A
SHAFT,WATER PUMP
€ 76.50
13116
131161014
ref: 13116
ROD-PUSH,TENSIONER
131161014
€ 10.00
14020
140201004
ref: 14020
RETAINER,MECHANICAL S
140201004
€ 16.00
14024
140251864
ref: 14024
COVER,WATER PUMP
€ 41.50
32032
320321184
ref: 32032
PIPE,WATER BYPASS
320321184
€ 18.00
39062
390621020
ref: 39062
HOSE-COOLING
390621020
€ 10.00
49022
490221006
ref: 49022
GEAR,BEVEL WATER PUMP
€ 96.00
49022A
490221015
ref: 49022A
GEAR-BEVEL,WATER PUMP
490221015
€ 61.00
49054
490541001
ref: 49054
THERMOSTAT
490541001
€ 44.50
49063
490631001
ref: 49063
SEAL,MECHANICAL
490631001
€ 59.00
59256
592561001
ref: 59256
IMPELLER,WATER PUMP
592561001
€ 32.50
92001
920011155
ref: 92001
BOLT,TENSIONER ADJUST
920011155
€ 3.50
92001A
920011371
ref: 92001A
BOLT,FLANGED,8X17
€ 4.50
92005
920051011
ref: 92005
FITTING,SUCTION
920051011
€ 16.50
92015
920151014
ref: 92015
NUT,8MM
920151014
€ 0.50
92022
92022077
ref: 92022
WASHER,6.1X12X1
92022077
€ 0.50
92033
920331024
ref: 92033
RING-SNAP,11MM
920331024
€ 2.50
92037
920371177
ref: 92037
CLAMP,HOSE
€ 6.00
92043
92042014
ref: 92043
PIN-GEAR CHANGE DRUM
92042014
€ 0.50
92055
920551032
ref: 92055
RING-O,67MM
920551032
€ 7.50
92055A
920551033
ref: 92055A
RING-O,OR2037
920551033
€ 5.50
92057
920571019
ref: 92057
CHAIN,TIMING,72L
€ 6.50
92066
920661026
ref: 92066
PLUG,DRAIN,8X10
920661026
€ 6.00
92075
920751187
ref: 92075
DAMPER,TIMING CHAIN G
920751187
€ 3.50
92081
920811102
ref: 92081
SPRING,TENSIONER
920811102
€ 3.50
92081A
920811104
ref: 92081A
SPRING,THERMOSTAT
920811104
€ 9.50
120
120Z0616
ref: 120
BOLT-SOCKET,6X16
€ 2.50
120A
120Z0620
ref: 120A
BOLT-SOCKET,6X20
120Z0620
€ 3.00
120B
120Z0625
ref: 120B
BOLT-SOCKET,6X25
€ 3.00
130
130G0820
ref: 130
BOLT,FLANGED,8X20
130G0820
€ 0.50
220
220R0516
ref: 220
SCREW-PAN-CROS
220R0516
€ 2.50
480
480J2000
ref: 480
CIRCLIP-TYPE-C,20MM
480J2000
€ 1.00
555
555A0408
ref: 555
PIN-SPRING,4X8
555A0408
€ 2.50
670
670B1508
ref: 670
O RING,8MM
670B1508
€ 1.00
670A
670B2016
ref: 670A
O RING,16MM
670B2016
€ 1.00
