BRAKE PEDAL/TORQUE LINK

ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

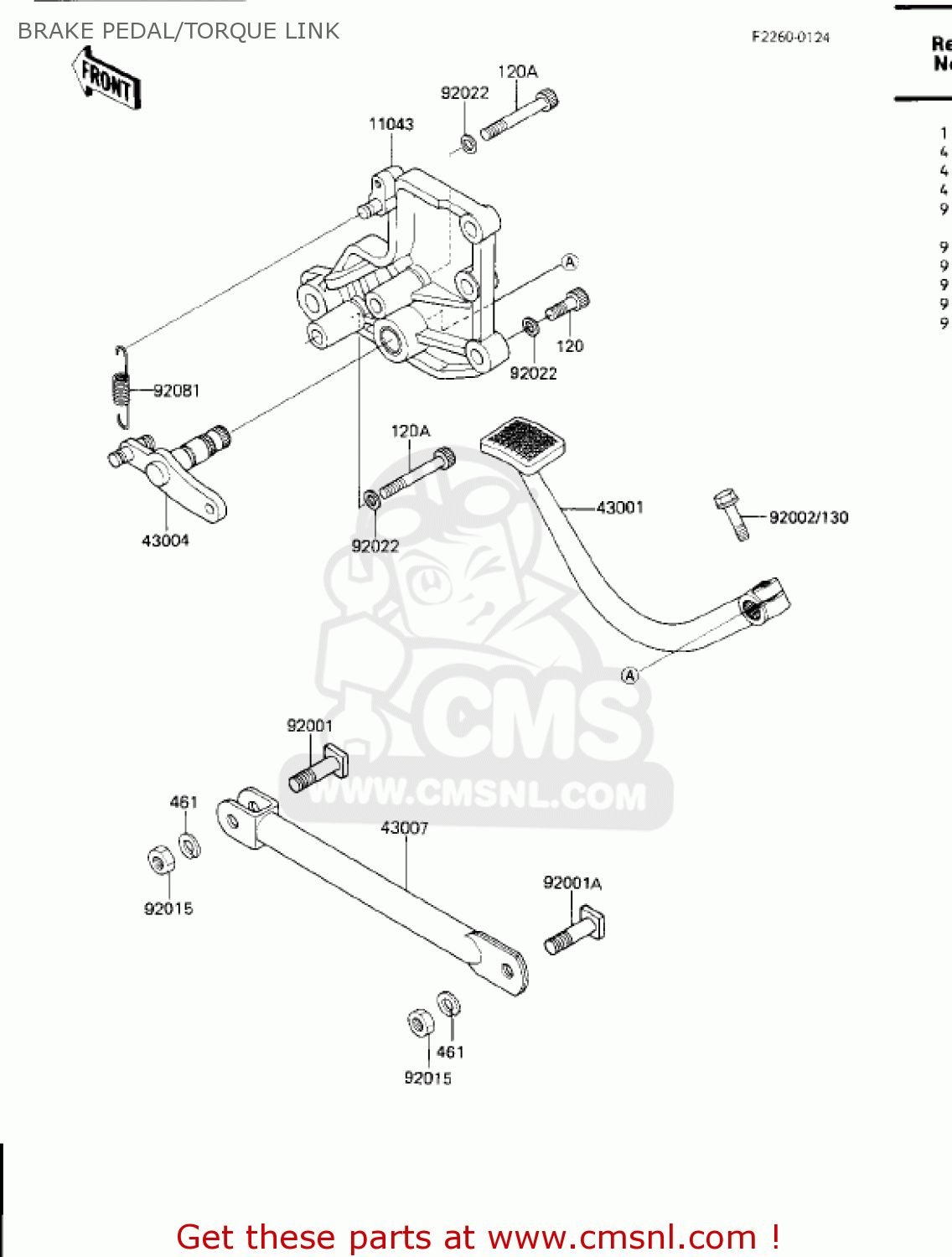

Brake pedal/torque link diagram ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11043

110451981
ref: 11043

BRAKE PEDAL BRACKET

€ 141.50

43001

430011115
ref: 43001

LEVER-BRAKE,PEDAL

€ 29.50

43004

430041052
ref: 43004

SHAFT-BRAKE

€ 26.50

43007

430071044
ref: 43007

ROD-TORQUE,L=250

€ 20.50

92001

920011646
ref: 92001

BOLT,10X37

€ 4.50

92001A

920011891
ref: 92001A

BOLT,10X27

€ 2.00

92002

920021201
ref: 92002

BOLT,FLANGED,8X25

€ 3.00

92015

920151189
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.50

92022

920221401
ref: 92022

WASHER,9X15.5X2

€ 1.50

92081

43005029
ref: 92081

SPRING,BRAKE PEDAL

€ 6.00

120

120S0825
ref: 120

BOLT-SOCKET

€ 3.00

120A

120S0855
ref: 120A

BOLT-SOCKET,8X55

€ 3.00

130

130G0825
ref: 130

BOLT,FLANGED,8X25

€ 0.50

461

461K1000
ref: 461

461K1000
