FUEL TANK

ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

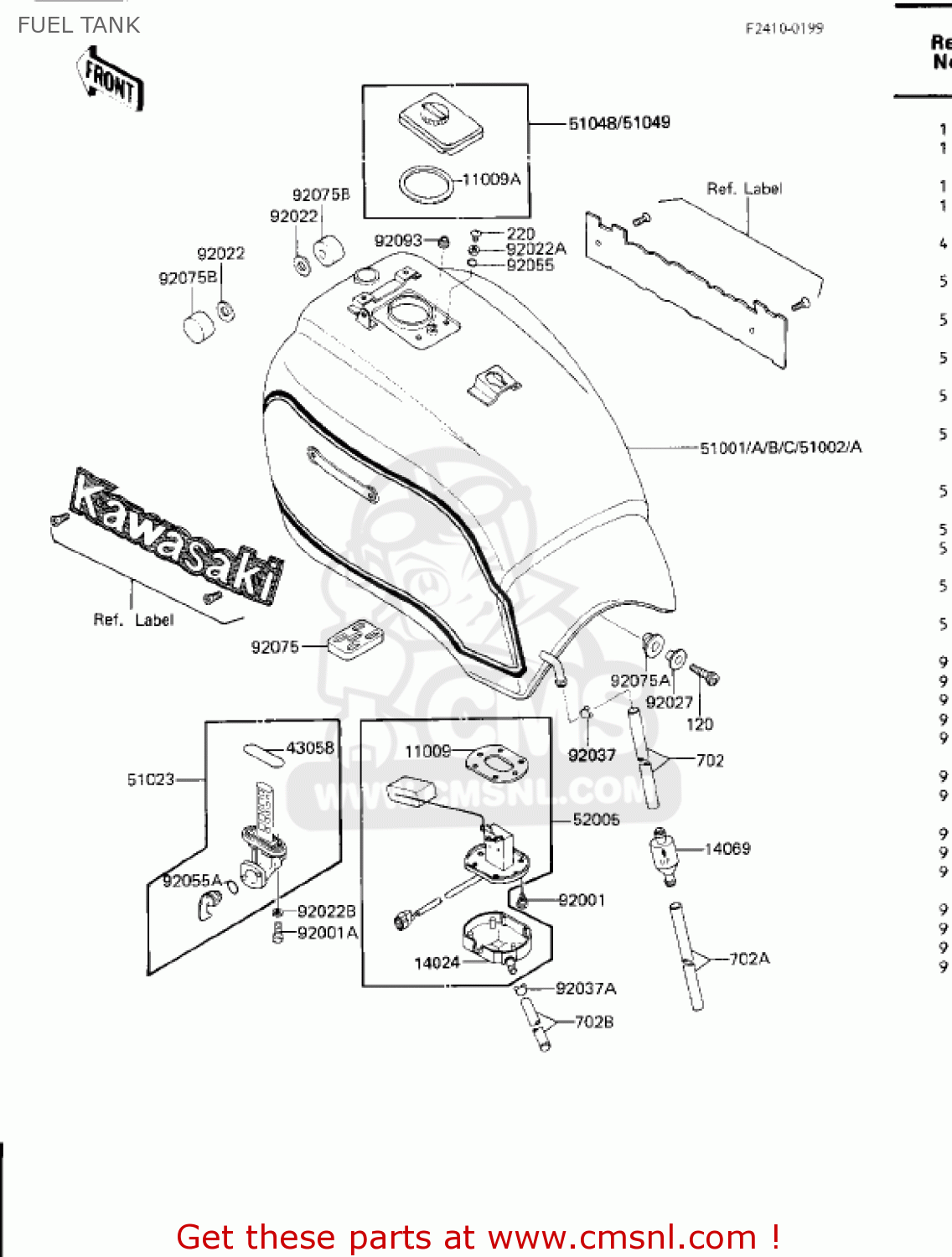

Fuel tank diagram ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

FUEL TANK ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA
FUEL TANK ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA
FUEL TANK ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091037
ref: 11009
GASKET (NAS)
110091037
€ 14.00
11009A
110091051
ref: 11009A
GASKET,FUEL TANK CAP (NAS)
110091051
€ 7.00
1100
110091051
ref: 1100
CN,US
GASKET,FUEL TANK CAP (NAS)
110091051
€ 7.00
14024
140241434
ref: 14024
COVER,FUEL GAUGE
140241434
€ 22.50
14069
140691004
ref: 14069
CN,US
BREATHER,FUEL TANK
140691004
€ 6.50
14069
140691004
ref: 14069
BREATHER,FUEL TANK
140691004
€ 6.50
43058
51039010
ref: 43058
RING,TAP FLANGED
51039010
€ 4.50
51001
510015335F7
ref: 51001
CN,US
TANK-COMP-FUEL,T.T.EB
€ 691.00
51001
510015335F7
ref: 51001
TANK-COMP-FUEL,T.T.EB
€ 691.00
51001A
510015414F7
ref: 51001A
CA
FUEL TANK,COMPLETE,EBONY
€ 366.00
51001B
510015460F7
ref: 51001B
CN,US
TANK-COMP-FUEL,T.T.EB
€ 691.00
51001C
510015461F7
ref: 51001C
CA
FUEL TANK,COMPLETE,EBONY
€ 350.00
51002
510025160T1
ref: 51002
CN,US
TANK-FUEL
€ 826.50
51002A
510025164T1
ref: 51002A
CA
FUEL TANK,COMPLETE,RED
€ 362.00
51023
510231054
ref: 51023
TAP-ASSY
€ 68.50
51048
510481022
ref: 51048
CAP-ASSY-TANK
€ 73.50
51048
510481022
ref: 51048
CAN,US
CAP-ASSY-TANK
€ 73.50
51049
510491059
ref: 51049
CA
CAP-TANK,FUEL
€ 93.50
52005
520051053
ref: 52005
GAUGE,FUEL
€ 72.50
92001
920011069
ref: 92001
BOLT,FUEL GAUGE FIT
920011069
€ 4.50
92001A
920011091
ref: 92001A
BOLT,6X20,FUEL TAP
920011091
€ 2.50
92022
92022044
ref: 92022
WASHER,10.5X26X2.3
92022044
€ 2.50
92022A
920221038
ref: 92022A
WASHER,PLAIN
920221038
€ 2.50
92022B
92022183
ref: 92022B
WASHER,6.2X11X1.5
92022183
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
920271134
€ 7.00
92037
92037010
ref: 92037
CN,US
CLAMP-FUEL PIPE
92037010
€ 2.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
920551023
ref: 92055
ORING
920551023
€ 2.50
92055A
920551036
ref: 92055A
RING-O
920551036
€ 2.50
92075
920751114
ref: 92075
DAMPER,FUEL TANK,RR
920751114
€ 11.00
92075A
920751116
ref: 92075A
DAMPER,FUEL TANK
920751116
€ 4.00
92075B
92075125
ref: 92075B
DAMPER RUBBER-FL TANK
92075125
€ 4.00
92093
920931030
ref: 92093
OIL SEAL,FUEL TANK CA
920931030
€ 5.00
120
120P0830
ref: 120
BOLT,SOCKET,8X30
120P0830
€ 2.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
220B0510
€ 0.50
702
702A07120
ref: 702
TUBE-RUBBER
€ 9.50
702
702A07120
ref: 702
CN,US
TUBE-RUBBER
€ 9.50
702A
702A07400
ref: 702A
TUBE,RUBBER
€ 9.50
702A
702A07400
ref: 702A
CN,US
TUBE,RUBBER
€ 9.50
702B
702A071000
ref: 702B
CN,US
TUBE-RUBBER,7X10X1000
702A071000
€ 9.50
