GEAR CHANGE MECHANISM

ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

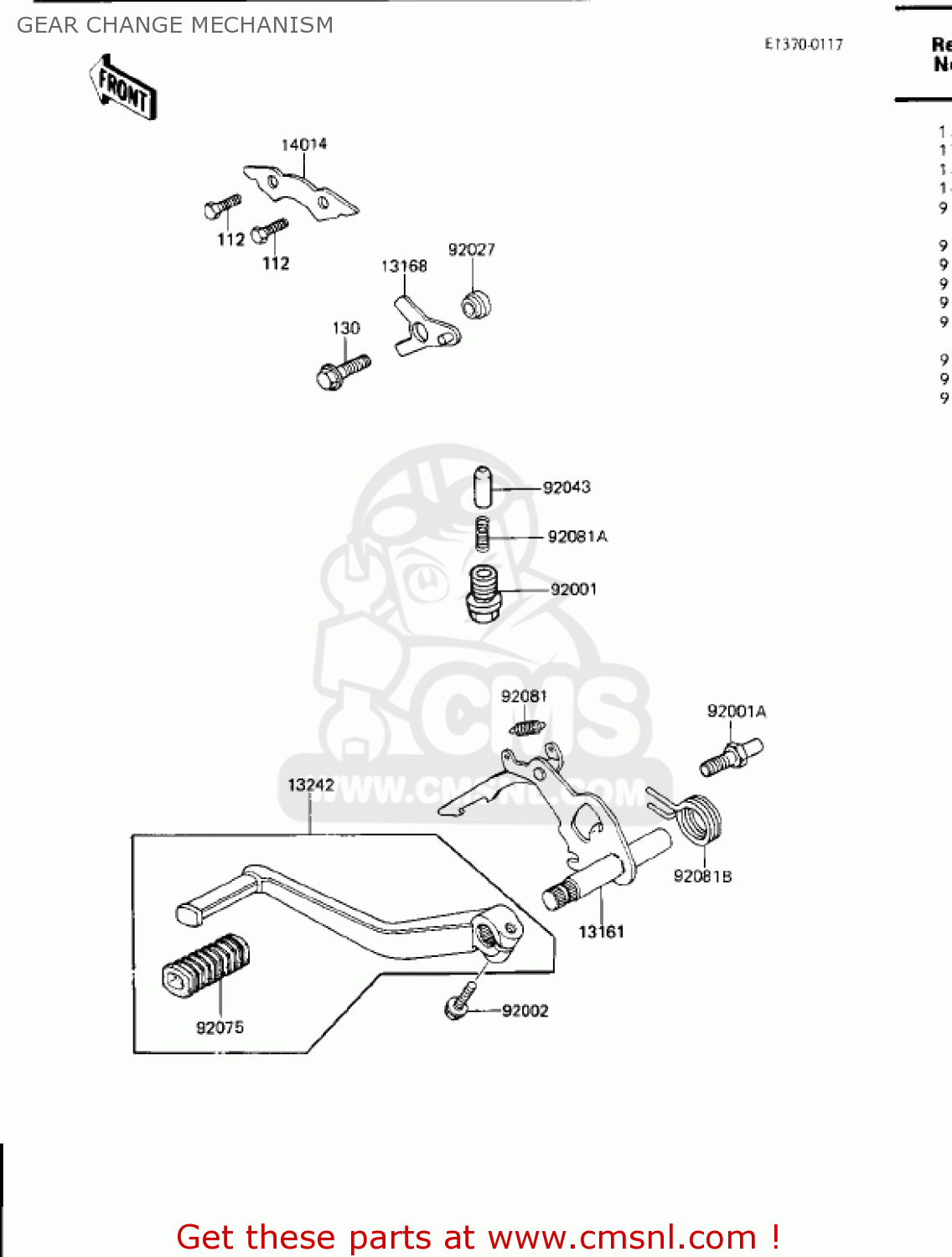

Gear change mechanism diagram ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

13161

131611114
ref: 13161

LEVER-COMP-CHANGE SHA

€ 59.50

13168

131681034
ref: 13168

LEVER,CHANGE

€ 7.00

13242

132421101
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 28.00

14014

140141008
ref: 14014

PLATE-POSITION

€ 6.00

92001

92001131
ref: 92001

BOLT,10MM

€ 14.00

92001A

920011401
ref: 92001A

BOLT,RETURN SPRING

€ 3.00

92002

130P0625
ref: 92002

BOLT-FLANGED,6X25

€ 2.50

92027

920271139
ref: 92027

COLLAR,L=8.7

€ 4.50

92043

92043076
ref: 92043

PIN-NEUTRAL PISTON

€ 8.00

92075

920751175
ref: 92075

DAMPER,CHANGE PEDAL

€ 3.00

92081

92081076
ref: 92081

SPRING-CHANG LEVER

€ 3.50

92081A

92081112
ref: 92081A

SPRING

€ 4.00

92081B

920811662
ref: 92081B

SPRING,CHANGE SHAFT R

€ 7.00

112

112G0616
ref: 112

BOLT UPSET,6X16

€ 1.00

130

130G0825
ref: 130

BOLT,FLANGED,8X25

€ 0.50
