HEADLIGHT

ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

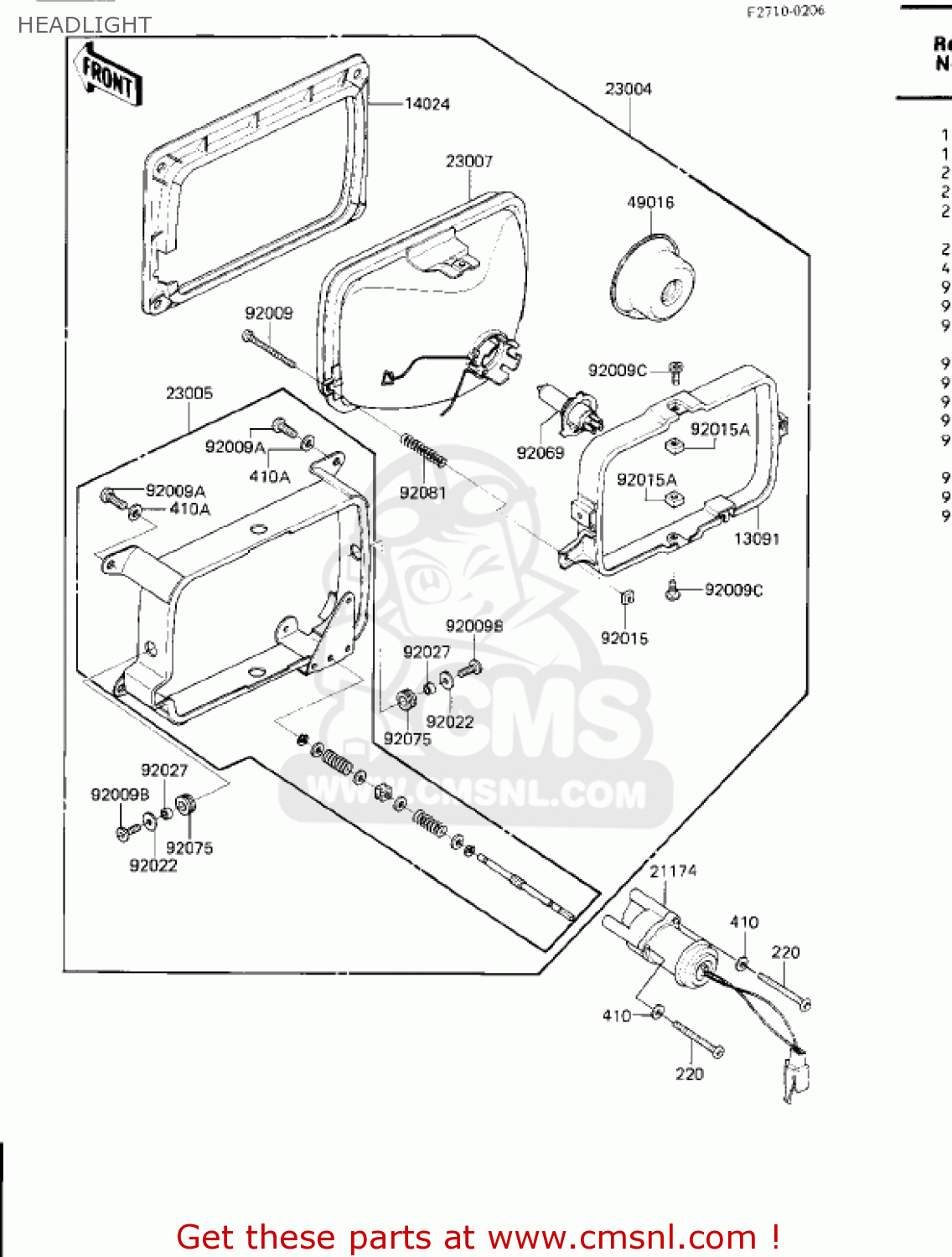

Headlight diagram ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

HEADLIGHT ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA
HEADLIGHT ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA
HEADLIGHT ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13091
130911187
ref: 13091
HOLDER,HEAD LAMP BODY
€ 36.00
14024
140251678
ref: 14024
COVER,HEAD LAMP LENS
€ 44.00
21174
211741051
ref: 21174
MOTOR-ELECTRIC,FOCUS
€ 350.00
23004
230041115
ref: 23004
LAMP-HEAD
€ 261.00
23005
230051031
ref: 23005
BODY-COMP-HEAD LAMP
€ 73.00
23007
230071054
ref: 23007
LENS-COMP,HEAD LAMP
€ 103.50
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
490161046
€ 7.50
92009
920091047
ref: 92009
SCREW,HEAD LAMP LENS
920091047
€ 3.00
92009A
920091693
ref: 92009A
SCREW,5X16
920091693
€ 2.50
92009B
920091188
ref: 92009B
SCREW,5X12
920091188
€ 3.50
92009C
920091189
ref: 92009C
SCREW,5X8
€ 3.00
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
92015A
920151253
ref: 92015A
NUT,5MM
€ 2.00
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
92022263
€ 1.50
92027
920271583
ref: 92027
COLLAR,WITH SLIT,5.2X
€ 4.00
92069
920691002
ref: 92069
BULB,12V-60155W
920691002
€ 15.00
92075
920751482
ref: 92075
DAMPER,HEAD LAMP HOLD
920751482
€ 3.00
92081
920811103
ref: 92081
SPRING,HEAD LAMP LENS
920811103
€ 3.00
220
220B0445
ref: 220
SCREW-PAN-CROS
220B0445
€ 2.50
410
410B0400
ref: 410
WASHER-PLAIN-SMALL,4M
410B0400
€ 0.50
410A
410F0500
ref: 410A
WASHER-PLAIN-SMALL,5M
€ 0.50
