Genuine ZN Kawasaki Parts delivered quickly!


THROTTLE ASSY

ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

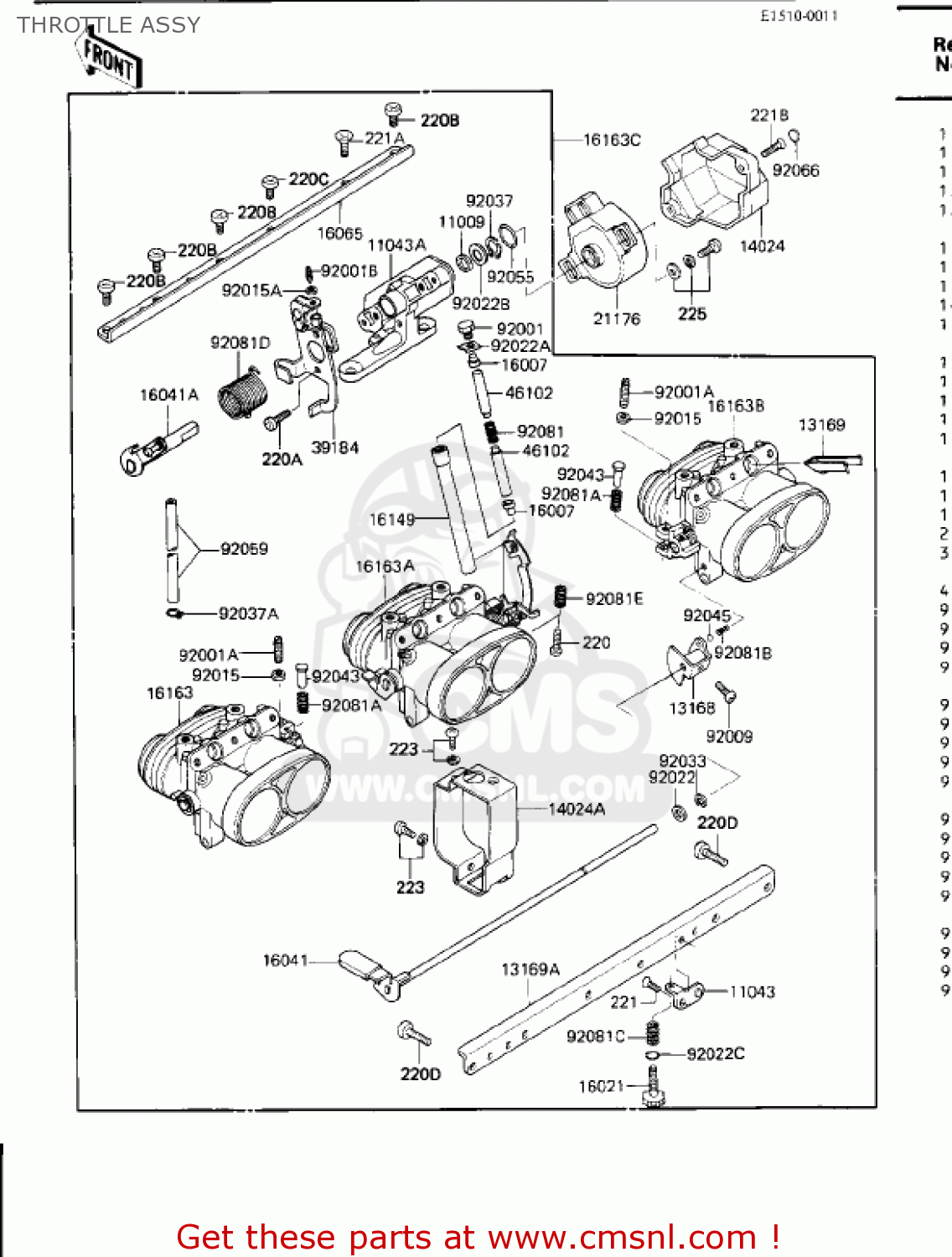

Throttle assy diagram ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

THROTTLE ASSY ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA
THROTTLE ASSY ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA
THROTTLE ASSY ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
16038020
ref: 11009
GASKET,8MM (NAS)
16038020
€ 4.50
11043
110431370
ref: 11043
BRACKET-B,IDLE ADJUST
€ 9.50
11043A
110431494
ref: 11043A
BRACKET,THROTTLE SENS
€ 117.00
13168
131681210
ref: 13168
LEVER,FAST IDLE
131681210
€ 15.50
13169
131691744
ref: 13169
PLATE
€ 11.50
13169A
131691745
ref: 13169A
PLATE,THROTTLE STAY,L
131691745
€ 51.00
14024
140251657
ref: 14024
COVER,SENSOR
€ 16.00
14024A
140251798
ref: 14024A
COVER,TUBE
€ 35.00
16007
16057002
ref: 16007
SEAT-SPRING
€ 6.00
16021
160211066
ref: 16021
SCREW-THROTTLE STOP
€ 8.50
16041
160411052
ref: 16041
SHAFT-CARBURETOR,FAST
€ 58.00
16041A
160411053
ref: 16041A
SHAFT-CARBURETOR,SENS
€ 82.50
16065
160651107
ref: 16065
HOLDER-CARBURETOR,STA
€ 41.50
16149
161491052
ref: 16149
BAR,THROTTLE
€ 35.00
16163
161631032
ref: 16163
THROTTLE-ASSY,#1
€ 202.00
16163A
161631033
ref: 16163A
THROTTLE-ASSY,#2
€ 202.00
16163B
161631034
ref: 16163B
THROTTLE-ASSY,#3
€ 212.00
16163C
161631068
ref: 16163C
THROTTLE-ASSY
€ 1,003.00
21176
211761004
ref: 21176
SENSOR,THROTTLE
211761004
€ 460.00
39184
391841053
ref: 39184
BRACKET-ASSY,THROTTLE
€ 65.00
46102
461021106
ref: 46102
ROD,THROTTLE
€ 10.50
92001
16067003
ref: 92001
BOLT,A
€ 4.00
92001A
920011447
ref: 92001A
BOLT,ADJUSTING
920011447
€ 6.50
92001B
920011909
ref: 92001B
BOLT,THROTTLE BRACKET
€ 6.50
92009
16046007
ref: 92009
SCREW,PAN HEAD,5X7
€ 6.50
92015
920151119
ref: 92015
NUT,THROTTLE VALVE AD
920151119
€ 3.50
92015A
920151348
ref: 92015A
NUT,THROTTLE BRACKET
€ 0.50
92022
16039019
ref: 92022
WASHER-PLAIN
16039019
€ 3.00
92022A
16054003
ref: 92022A
WASHER,LOCK
16054003
€ 2.50
92022B
920221492
ref: 92022B
WASHER,THROTTLE SENSO
€ 2.50
92022C
920221608
ref: 92022C
WASHER,THROTTLE STOP
€ 1.00
92033
920331066
ref: 92033
RING-SNAP,E-TYPE
920331066
€ 3.50
92037
920371196
ref: 92037
CLAMP
€ 2.50
92037A
920371482
ref: 92037A
CLAMP,TUBE
€ 6.00
92043
920431079
ref: 92043
PIN,THROTTLE VALVE AD
920431079
€ 3.50
92045
600A0400
ref: 92045
BALL-STEEL,1/8
600A0400
€ 2.00
92055
920551226
ref: 92055
RING-O,THROTTLE SENSO
920551226
€ 5.50
92059
920591382
ref: 92059
TUBE,3X7X125
€ 8.50
92066
920661122
ref: 92066
US
PLUG
€ 2.50
92066
920661122
ref: 92066
CA,US
PLUG
€ 2.50
92081
16040026
ref: 92081
SPRING
€ 3.50
92081A
920811259
ref: 92081A
SPRING,THROTTLE VLV
€ 3.00
92081B
920811260
ref: 92081B
SPRING,FAST IDLE SHFT
920811260
€ 3.50
92081C
920811377
ref: 92081C
SPRING,IDLING ADJUST
920811377
€ 3.00
92081D
920811634
ref: 92081D
SPRING,THROTTLE SENSO
920811634
€ 14.00
92081E
920811635
ref: 92081E
SPRING,FAST IDLE ADJU
920811635
€ 2.00
220
220B0418
ref: 220
SCREW-PAN-CROS,4X18
€ 3.00
220A
220B0512
ref: 220A
SCREW-PAN-CROS
220B0512
€ 0.50
220B
220B0610
ref: 220B
SCREW-PAN HEAD,6X10
220B0610
€ 2.00
220C
220B0616
ref: 220C
SCREW-PAN HEAD,6X16
220B0616
€ 2.50
220D
220B0618
ref: 220D
SCREW-PAN HEAD,6X18
220B0618
€ 2.50
221
221B0508
ref: 221
SCREW-CSK-CROS
€ 0.50
221A
221B0616
ref: 221A
SCREW-CNTSNK HD,6X16
221B0616
€ 0.50
221B
221C0414
ref: 221B
SCREW-CSK-CROS,4X14
€ 2.00
223
223B0508
ref: 223
SCREW-PAN-WS-CROS
223B0508
€ 0.50
225
225B0510
ref: 225
SCREW-PAN-WSP-CROS
€ 0.50
