CLUTCH

ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

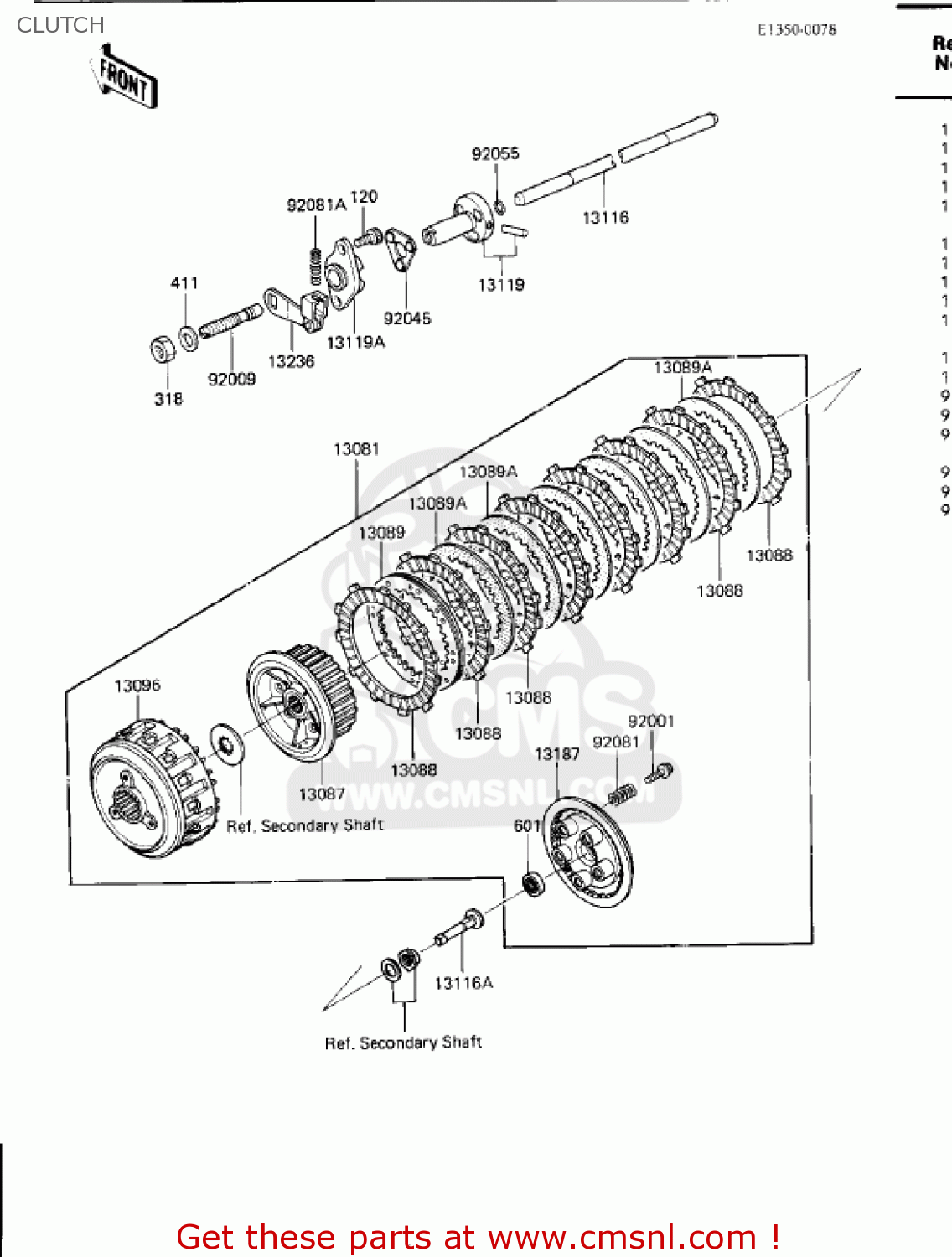

Clutch diagram ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

CLUTCH ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA
CLUTCH ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA
CLUTCH ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13081
130811172
ref: 13081
CLUTCH-ASSY
€ 356.50
13087
130871055
ref: 13087
HUB-CLUTCH
€ 139.00
13088
130881018
ref: 13088
PLATE-FRICTION (NAS)
130881018
€ 15.00
13089
130891056
ref: 13089
PLATE-CLUTCH (NAS)
130891056
€ 20.00
13089A
130891057
ref: 13089A
PLATE-CLUTCH (NAS)
130891057
€ 6.50
13096
130961059
ref: 13096
HOUSING-CLUTCH
€ 277.00
13116
131161050
ref: 13116
ROD-PUSH,CLUTCH
131161050
€ 22.00
13116A
131161108
ref: 13116A
ROD-PUSH
€ 16.50
13119
131191007
ref: 13119
CAM-RELEASE,CLUTCH,IN
131191007
€ 38.50
13119A
131191008
ref: 13119A
CAM-RELEASE,CLUTCH,OU
131191008
€ 34.50
13187
131871015
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
131871015
€ 51.50
13236
132361055
ref: 13236
LEVER-COMP,CLUTCH REL
132361055
€ 8.00
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
920011066
€ 4.00
92009
920091052
ref: 92009
SCREW,CLUTCH RELEASE
920091052
€ 9.50
92045
920451023
ref: 92045
BEARING-BALL,CLUTCH R
€ 8.00
92055
670B1505
ref: 92055
O RING,5MM
670B1505
€ 1.00
92081
920811033
ref: 92081
SPRING,CLUTCH
920811033
€ 6.50
92081A
920811532
ref: 92081A
SPRING,COIL,9.7X95
920811532
€ 3.00
120
120P0614
ref: 120
BOLT,6X14
120P0614
€ 3.00
318
318B0800
ref: 318
NUT,8MM
318B0800
€ 0.50
411
411B0800
ref: 411
WASHER-PLAIN,8MM
411B0800
€ 0.50
601
920451235
ref: 601
BEARING-BALL,6001C3ML
920451235
€ 15.50
