STARTER MOTOR(ZG1200-B7/B8/B9)

ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA

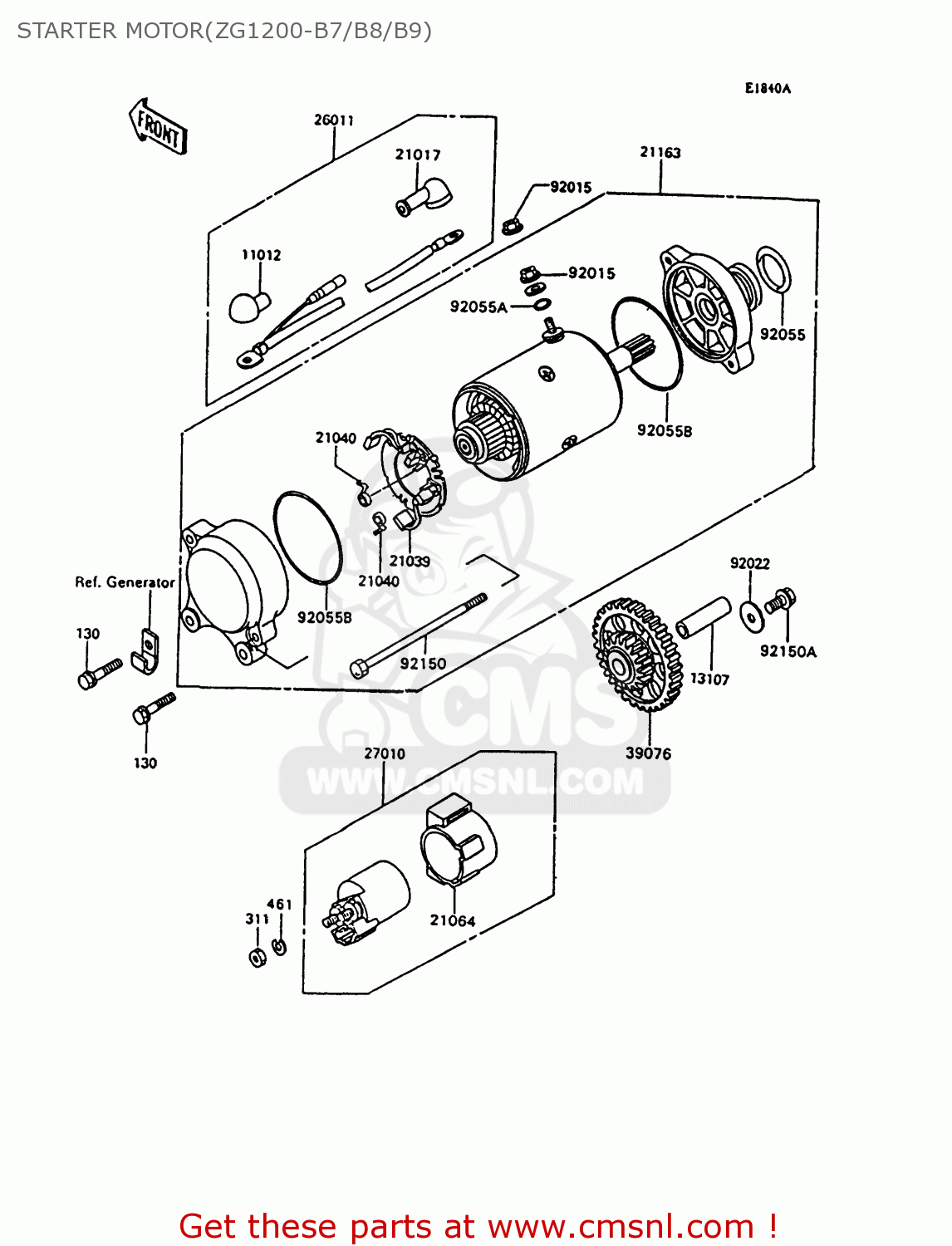

Starter motor(zg1200-b7/b8/b9) diagram ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130G0625
ref: 130

BOLT,FLANGED,6X25

€ 0.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

11012

110121354
ref: 11012

CAP,TERMINAL

€ 7.00

13107

131071106
ref: 13107

SHAFT,IDLE GEAR

€ 11.50

21017

21017017
ref: 21017

GROMMET-CORD

€ 6.50

21039

210391060
ref: 21039

BRUSH,CARBON

€ 74.00

21040

210401055
ref: 21040

SPRING-BRUSH

€ 5.50

21064

21064002
ref: 21064

DAMPER,MAGNETIC SWITC

€ 13.50

21163

211631196
ref: 21163

STARTER-ELECTRIC

€ 611.50

26011

260111369
ref: 26011

STARTER MOTOR WIRE LEAD

€ 33.50

27010

270101209
ref: 27010

SWITCH,MAGNETIC

€ 110.50

39076

390761067
ref: 39076

LIMITER,STARTER IDLE

€ 93.50

92015

920151476
ref: 92015

NUT,6MM

€ 2.50

92022

920221517
ref: 92022

WASHER,6X19.5X2

€ 1.50

92055

920551276
ref: 92055

RING-O

€ 6.50

92055A

920551370
ref: 92055A

RING-O,4.5X2.0

€ 3.00

92055B

920551381
ref: 92055B

RING-O,STARTER MOTOR

€ 6.50

92150

921501572
ref: 92150

BOLT,STARTER MOTOR

€ 6.50

92150A

921501826
ref: 92150A

BOLT,6X12

€ 2.50
