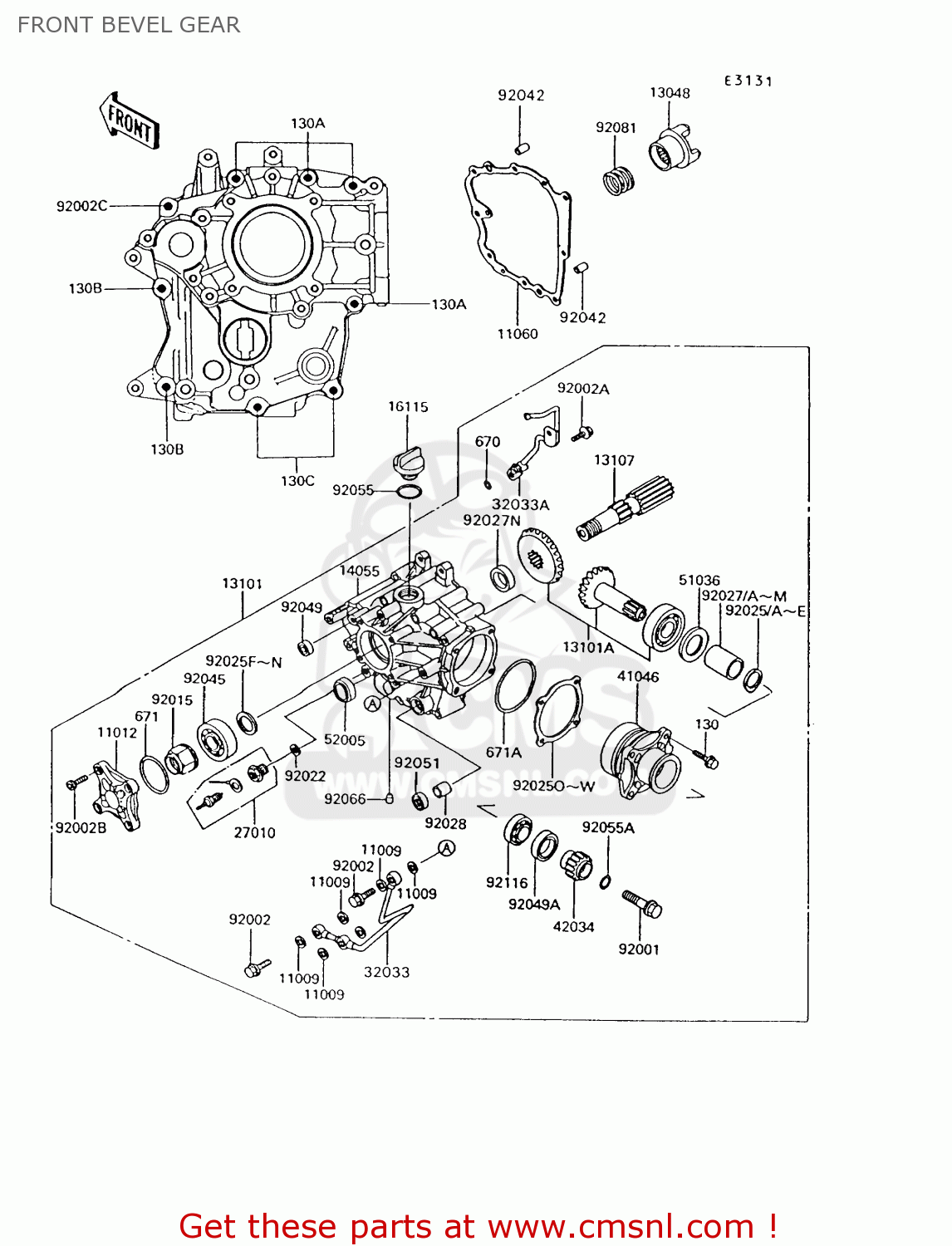

FRONT BEVEL GEAR

ref

part #

description

quantity

11009

110091344
ref: 11009

GASKET,OIL PIPE,8.2X1 (NAS)

€ 1.50

11012

110121489
ref: 11012

BEARING CAP

€ 20.00

11060

110601094
ref: 11060

GASKET,GEAR CASE (NAS)

€ 16.00

13048

130481074
ref: 13048

CAM-DAMPER

€ 75.50

13101

131011089
ref: 13101

FRONT BEVEL GEAR ASSEMBLY

€ 1,202.50

13101A

131015027
ref: 13101A

GEAR-ASSY,FRONT BEVEL

€ 1,107.50

13107

131071263
ref: 13107

SHAFT,BEVEL,FR

€ 132.50

14055

140551066
ref: 14055

FRONT BEVEL GEARCASE

€ 429.50

16115

161151009
ref: 16115

CAP-OIL FILLER

€ 10.00

27010

270101224
ref: 27010

SWITCH

€ 29.50

32033

320331940
ref: 32033

PIPE,OUTSIDE

€ 29.00

32033A

320331941
ref: 32033A

PIPE,INSIDE

€ 20.50

41046

410461074
ref: 41046

BEARING HOUSING

€ 191.50

42034

420341091
ref: 42034

COUPLING,FR DRIVEN

€ 96.00

51036

510361002
ref: 51036

CAP

€ 3.50

52005

520051057
ref: 52005

GAUGE,OIL LEVEL

€ 17.50

92001

920011169
ref: 92001

BOLT,12X42

€ 15.50

92002

920021618
ref: 92002

BOLT,BANJO,8X20

€ 7.00

92002A

920021656
ref: 92002A

BOLT, 6 X 14

€ 3.00

92002B

920021696
ref: 92002B

BOLT,SOCKET,6X25

€ 1.50

92002C

920021779
ref: 92002C

BOLT,6X50

€ 3.00

92015

920151554
ref: 92015

NUT,24MM

€ 16.50

92022

920221812
ref: 92022

WASHER,16XX22X1.0

€ 2.50

92025

920251072
ref: 92025

SHIM,1.70T

€ 6.50

92025A

920251073
ref: 92025A

SHIM,1.72T

€ 6.50

92025B

920251074
ref: 92025B

SHIM,1.74T

€ 6.50

92025C

920251075
ref: 92025C

SHIM,1.76T

€ 6.50

92025D

920251076
ref: 92025D

SHIM,1.78T

€ 6.50

92025E

920251077
ref: 92025E

SHIM,1.80T

€ 6.50

92025F

920251688
ref: 92025F

SHIM,25.3X36X0.15

€ 5.50

92025G

920251689
ref: 92025G

SHIM,25.3X36X0.50

€ 5.50

92025H

920251690
ref: 92025H

SHIM,25.3X36X0.60

€ 5.50

92025I

920251691
ref: 92025I

SHIM,25.3X36X0.70

€ 5.50

92025J

920251692
ref: 92025J

SHIM,25.3X36X0.80

€ 5.50

92025K

920251693
ref: 92025K

SHIM,25.3X36X0.90

€ 5.50

92025L

920251694
ref: 92025L

SHIM,25.3X36X1.0

€ 5.50

92025M

920251695
ref: 92025M

SHIM,25.3X36X1.1

€ 5.50

92025N

920251696
ref: 92025N

SHIM,25.3X36X1.2

€ 5.50

92025O

920251724
ref: 92025O

SHIM,0.10T

€ 5.50

92025P

920251725
ref: 92025P

SHIM,0.15T

€ 5.50

130

130P0625
ref: 130

BOLT-FLANGED,6X25

€ 2.50

130A

130Z06100
ref: 130A

BOLT FLANGED

€ 5.50

130B

130Z0630
ref: 130B

BOLT-FLANGED

€ 2.00

130C

130Z0650
ref: 130C

BOLT-FLANGED

€ 2.50

670

670B1506
ref: 670

O RING,6MM

€ 1.00

671

671B2565
ref: 671

O RING,65MM

€ 6.00

671A

671B2575
ref: 671A

O RING

€ 4.00

92025Q

920251726
ref: 92025Q

SHIM,0.50T

€ 5.50

92025R

920251727
ref: 92025R

SHIM,0.60T

€ 5.50

92025S

920251728
ref: 92025S

SHIM,0.70T

€ 5.50

92025T

920251729
ref: 92025T

SHIM,0.80T

€ 5.50

92025U

920251730
ref: 92025U

SHIM,0.90T

€ 5.50

92025V

920251731
ref: 92025V

SHIM,1.00T

€ 5.50

92025W

920251732
ref: 92025W

SHIM,1.20T

€ 5.50

92027

920271152
ref: 92027

COLLAR,25.2X29.8X22.8

€ 12.00

92027A

920271153
ref: 92027A

COLLAR,25.2X29.8X22.9

€ 12.00

92027B

920271154
ref: 92027B

COLLAR,25.2X29.8X23

€ 12.00

92027C

920271155
ref: 92027C

COLLAR,25.2X29.8X23.1

€ 12.50

92027D

920271156
ref: 92027D

COLLAR,25.2X29.8X23.2

€ 13.00

92027E

920271157
ref: 92027E

COLLAR,25.2X29.8X23.3

€ 12.00

92027F

920271158
ref: 92027F

COLLAR,25.2X29.8X23.4

€ 12.00

92027G

920271159
ref: 92027G

COLLAR,25.2X29.8X23.5

€ 12.00

92027H

920271160
ref: 92027H

COLLAR,25.2X29.8X23.6

€ 12.00

92027I

920271161
ref: 92027I

COLLAR,25.2X29.8X23.7

€ 12.00

92027J

920271162
ref: 92027J

COLLAR,25.2X29.8X23.8

€ 12.00

92027K

920271163
ref: 92027K

COLLAR,25.2X29.8X23.9

€ 12.00

92027L

920271164
ref: 92027L

COLLAR,25.2X29.8X24

€ 12.00

92027M

920271165
ref: 92027M

COLLAR,25.2X29.8X24.1

€ 12.00

92027N

920271968
ref: 92027N

COLLAR,25.3X36X10

€ 15.50

92028

920281251
ref: 92028

BUSHING,13X15X20

€ 8.00

92042

92042007
ref: 92042

PIN-DOWEL

€ 4.00

92045

920451165
ref: 92045

BEARING-BALL,6305C2

€ 44.00

92049

920491017
ref: 92049

SEAL-OIL,SD-8187

€ 6.50

92049A

920491038
ref: 92049A

OIL SEAL,TC35527

€ 12.50

92051

92051005A
ref: 92051

OIL SEAL,TB13225.5

€ 5.50

92055

92055049
ref: 92055

'0'RING,31MM

€ 2.50

92055A

920551044
ref: 92055A

RING-O,ID=18.64

€ 3.00

92066

920661012
ref: 92066

PLUG,OIL LINE,7.2X8

€ 4.00

92081

920811859
ref: 92081

SPRING,CAM DAMPER

€ 40.00

92116

921161003
ref: 92116

BEARING,R,4T-30205

€ 41.00
