Genuine ZG Kawasaki Parts delivered quickly!


ACCESSORY(TRUNK BRACKET)

ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA

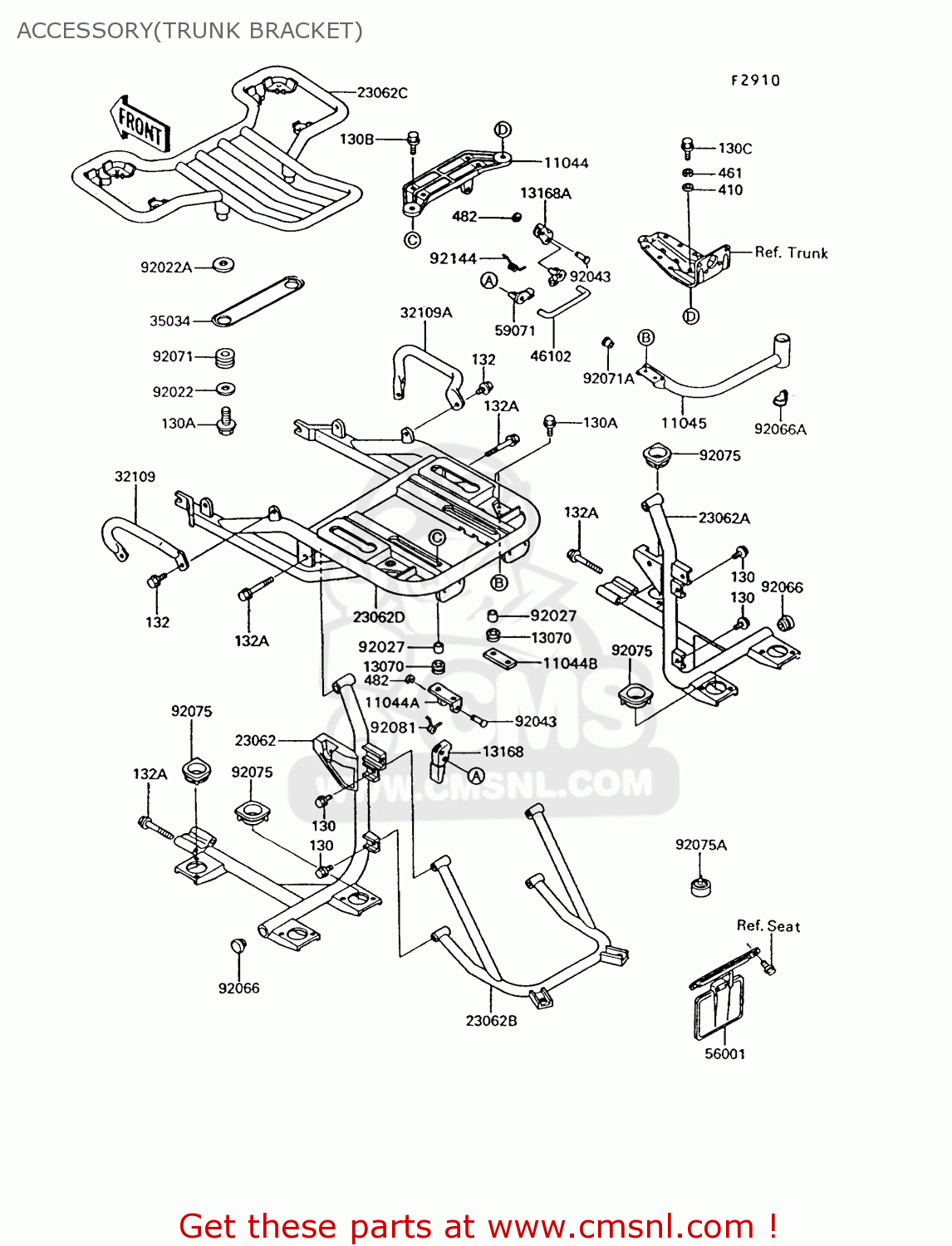

Accessory(trunk bracket) diagram ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA

ACCESSORY(TRUNK BRACKET) ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA
ACCESSORY(TRUNK BRACKET) ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA
ACCESSORY(TRUNK BRACKET) ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130B0614
ref: 130
BOLT-FLANGED
130B0614
€ 0.50
130A
130C0610
ref: 130A
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
130B
130C0620
ref: 130B
BOLT-FLANGED,6X20
€ 2.50
130C
130J0820
ref: 130C
BOLT-FLANGED,8X20
130J0820
€ 0.50
132
132E0816
ref: 132
BOLT-FLANGED-SMALL,8X
132E0816
€ 3.00
132A
132E0855
ref: 132A
BOLT-FLANGED-SMALL,8X
132E0855
€ 4.00
410
410F0800
ref: 410
WASHER-PLANE-SMALL,8M
€ 3.00
461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
461K0800
€ 1.50
482
482L4000
ref: 482
CIRCLIP-TYPE-E,4MM
482L4000
€ 0.50
11044
110441637
ref: 11044
BRACKET,TRUNK
€ 65.00
11044A
110441676
ref: 11044A
TRUNK BRACKET,LH
110441676
€ 12.00
11044B
110441677
ref: 11044B
TRUNK BRACKET,RH
110441677
€ 5.50
11045
110451920
ref: 11045
BRACKET
€ 77.00
13070
130701151
ref: 13070
GUIDE
€ 3.00
13168
131681307
ref: 13168
LEVER
€ 6.50
13168A
131681329
ref: 13168A
LEVER
€ 5.50
23062
230621060
ref: 23062
BRACKET-COMP,LH
€ 345.50
23062A
230621061
ref: 23062A
BRACHET-COMP,RH
€ 342.00
23062B
230621062
ref: 23062B
BRACKET-COMP,TAIL
€ 167.50
23062C
230621073
ref: 23062C
BRACKET-COMP,REAR SPE
€ 472.00
23062D
230621074
ref: 23062D
BRACKET-COMP, CNT
€ 841.50
32109
321091137
ref: 32109
FRAME GRIP,LH
€ 19.00
32109A
321091138
ref: 32109A
FRAME GRIP,RH
€ 19.00
35034
350341220
ref: 35034
REINFORCE
€ 15.50
46102
461021182
ref: 46102
ROD
€ 3.50
56001
560011268
ref: 56001
MIRROR-ASSY,VANITY
€ 82.50
59071
590711103
ref: 59071
JOINT
590711103
€ 5.50
92022
920221248
ref: 92022
WASHER,6.5X26X1,BLACK
920221248
€ 3.50
92022A
920221638
ref: 92022A
WASHER,CAP TYPE
920221638
€ 6.50
92027
920271983
ref: 92027
COLLAR,6.8X10X9.5
€ 1.00
92043
920431308
ref: 92043
PIN,6X28
920431308
€ 3.00
92066
920661220
ref: 92066
PLUG
920661220
€ 3.00
92066A
920661287
ref: 92066A
PLUG
920661287
€ 2.50
92071
920711131
ref: 92071
GROMMET
920711131
€ 5.00
92071A
920711156
ref: 92071A
GROMMET
€ 3.00
92075
920751840
ref: 92075
DAMPER
920751840
€ 7.00
92075A
920751844
ref: 92075A
DAMPER
€ 6.00
92081
920811967
ref: 92081
RETURN SPRING
920811967
€ 3.00
92144
921441045
ref: 92144
SPRING
€ 3.50
