Genuine ZG Kawasaki Parts delivered quickly!


GENERATOR

ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA

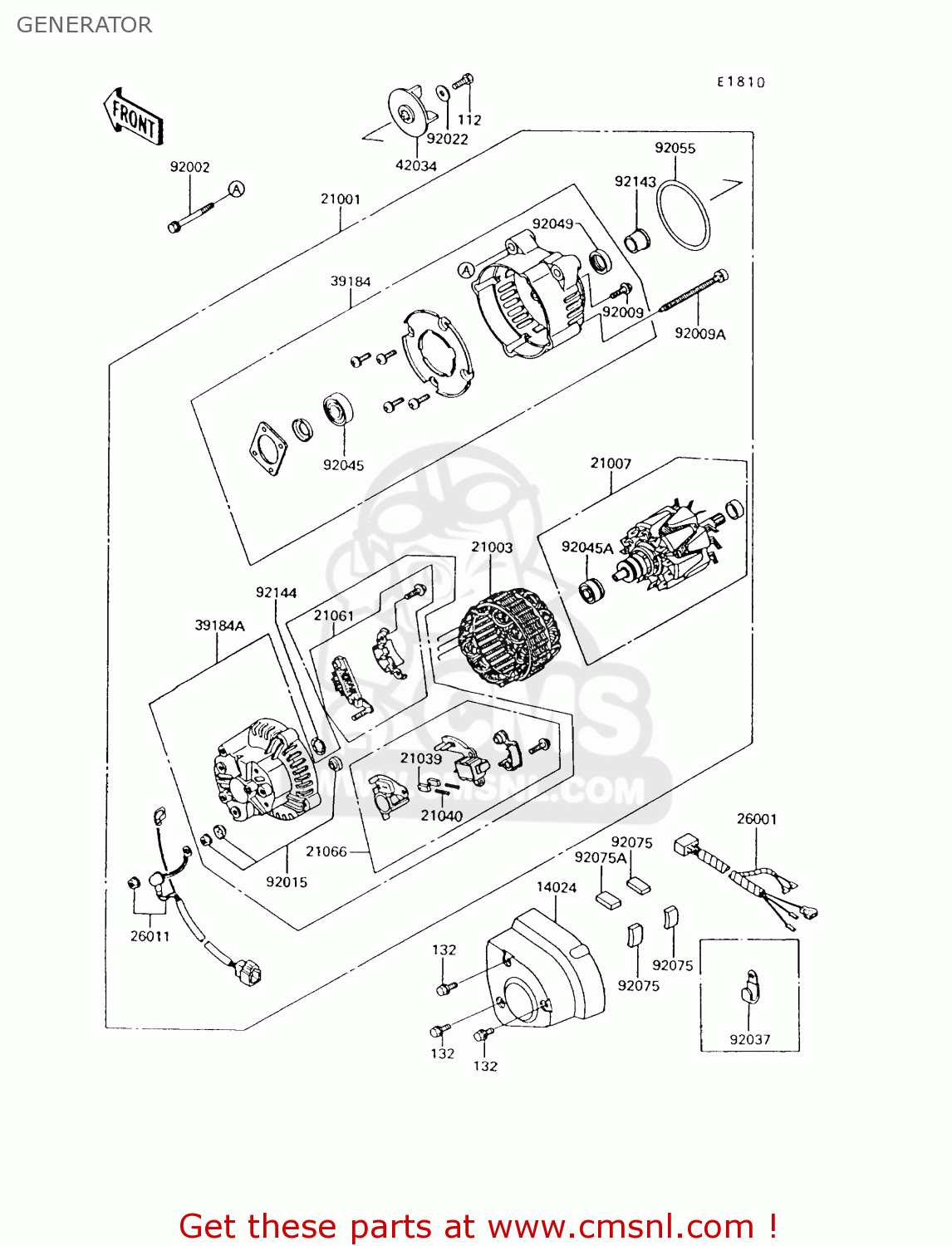

Generator diagram ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA

GENERATOR ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA
GENERATOR ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA
GENERATOR ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
112
112G0616
ref: 112
BOLT UPSET,6X16
112G0616
€ 1.00
132
132E0610
ref: 132
BOLT-FLANGED-SMALL
132E0610
€ 2.50
14024
140241294
ref: 14024
GENERATOR COVER
€ 28.50
21001
210011121
ref: 21001
GENERATOR
€ 1,309.50
21003
210031162
ref: 21003
STATOR,GENERATOR
210031162
€ 560.00
21007
210071152
ref: 21007
ROTOR,GENERATOR
€ 513.50
21039
210391058
ref: 21039
BRUSH,CARBON
210391058
€ 19.00
21040
210401054
ref: 21040
SPRING-BRUSH
210401054
€ 4.50
21061
210611056
ref: 21061
RECTIFIER
€ 311.50
21066
210661062
ref: 21066
REGULATOR-VOLTAGE
€ 444.50
26001
260011761
ref: 26001
HARNESS
€ 23.50
26011
260111379
ref: 26011
GENERATOR WIRE LEAD
€ 45.00
39184
391841063
ref: 39184
BRACKET-ASSY,FR
€ 103.00
39184A
391841064
ref: 39184A
BRACKET-ASSY,RR
€ 865.50
42034
420341084
ref: 42034
COUPLING
€ 52.50
92002
920021658
ref: 92002
BOLT,8X45
920021658
€ 6.00
92009
920091451
ref: 92009
SCREW
920091451
€ 5.50
92009A
920091452
ref: 92009A
SCREW
920091452
€ 6.50
92015
920151624
ref: 92015
NUT
€ 11.50
92022
920221517
ref: 92022
WASHER,6X19.5X2
920221517
€ 1.50
92037
920371539
ref: 92037
CLAMP,L=45
920371539
€ 3.00
92045
920451181
ref: 92045
BEARING-BALL
920451181
€ 55.00
92045A
920451279
ref: 92045A
BEARING-BALL
€ 64.50
92049
920491274
ref: 92049
SEAL-OIL
€ 33.50
92055
920551365
ref: 92055
RING-O
920551365
€ 26.50
92075
920751866
ref: 92075
DAMPER
€ 2.50
92075A
920751867
ref: 92075A
DAMPER
920751867
€ 2.50
92143
921431054
ref: 92143
COLLAR
€ 6.50
92144
921441067
ref: 92144
SPRING,WASHER
€ 3.00
