Genuine ZG Kawasaki Parts delivered quickly!


COWLING(ZG1200-B6/B7)

ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA

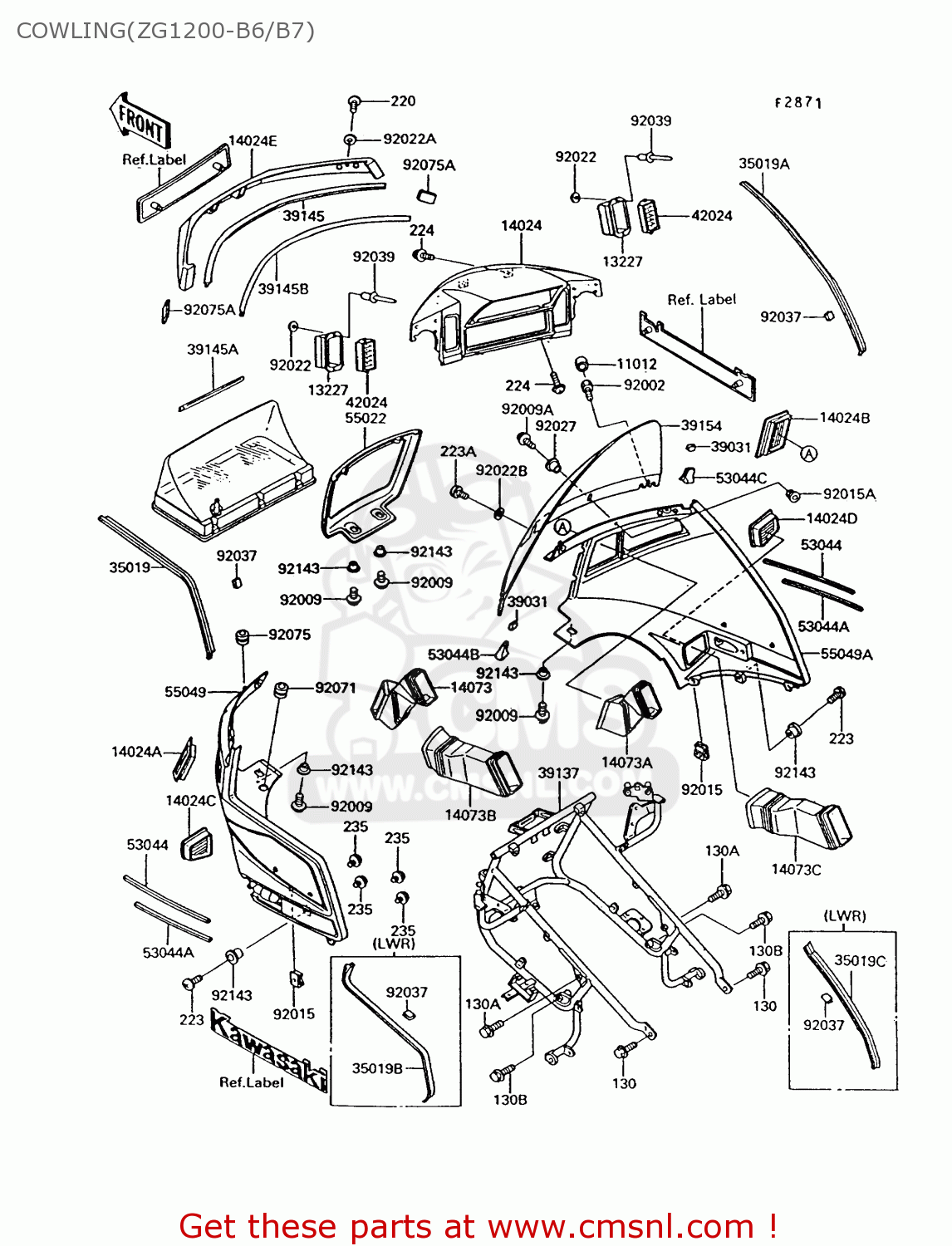

Cowling(zg1200-b6/b7) diagram ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA

COWLING(ZG1200-B6/B7) ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA
COWLING(ZG1200-B6/B7) ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA
COWLING(ZG1200-B6/B7) ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121550
ref: 11012
CAP
110121550
€ 4.50
13227
132271012
ref: 13227
HOUSING, SHUTTER
€ 8.00
14024
140241186
ref: 14024
COVER,METER
140241186
€ 345.50
14024A
140241192
ref: 14024A
COVER,LOUVER, UPP,LH
€ 61.00
14024B
140241193
ref: 14024B
COVER,LOUVER,UPP,RH
€ 62.00
14024C
140241194
ref: 14024C
COVER,LOUVER,LWR,LH
€ 38.50
14024D
140241195
ref: 14024D
COVER, LOUVER,LWR,RH
140241195
€ 36.00
14024E
140241280
ref: 14024E
COVER,WINDSHIELD
140241280
€ 200.50
14073
140731245
ref: 14073
DUCT,COWLING,UPP,LH
€ 41.50
14073A
140731246
ref: 14073A
DUCT,COWLING,UPP,RH
140731246
€ 29.50
14073B
140731247
ref: 14073B
DUCT,COWLING,LWR,LH
€ 39.50
14073C
140731248
ref: 14073C
DUCT,COWLING,LWR,RH
€ 45.50
35019
350191201H8
ref: 35019
FLAP,UPPER,LH,EBONY
€ 64.50
35019A
350191202H8
ref: 35019A
FLAP,UPPER,RH,EBONY
€ 64.50
35019B
350191203H8
ref: 35019B
FLAP,LOWER,LH,EBONY
€ 52.50
35019C
350191204H8
ref: 35019C
FLAP,LOWER,RH,EBONY
€ 52.50
39031
390311058
ref: 39031
END CAP
390311058
€ 2.50
39137
391371057
ref: 39137
STAY-COMP,COWLING
391371057
€ 450.50
39145
391451072
ref: 39145
TRIM-SEAL,WINDSHIELD
€ 29.50
39145A
391451081
ref: 39145A
SEAL TRIM
€ 3.00
39145B
391451082
ref: 39145B
METER COVER SEAL TRIM
€ 20.00
39154
391541101
ref: 39154
WINDSHIELD
€ 470.00
42024
420241002
ref: 42024
SHUTTER,LOUVER
420241002
€ 15.00
53044
530441150
ref: 53044
TRIM,COWLING SIDE,UPP
530441150
€ 11.50
53044A
530441151
ref: 53044A
TRIM,COWLING SIDE,LWR
€ 12.50
53044B
530441181
ref: 53044B
TRIM,WINDSHIELD,LH
530441181
€ 18.00
53044C
530441182
ref: 53044C
TRIM,WINDSHIELD,RH
530441182
€ 18.00
55022
550221054H8
ref: 55022
HEADLAMP COVER,EBONY
€ 66.00
55049
550495100TM
ref: 55049
COWLING.,UPP,LH,EBONY
€ 1,488.50
55049A
550495101TM
ref: 55049A
COWLING,UPPER,RH
€ 539.50
92002
920021830
ref: 92002
BOLT
€ 6.00
92009
920091181
ref: 92009
SCREW,6X18
920091181
€ 2.00
130
130D0812
ref: 130
BOLT-FLANGED
130D0812
€ 0.50
130A
130D0835
ref: 130A
BOLT-FLANGED,8X35
€ 0.50
130B
130D0850
ref: 130B
BOLT-FLANGED,8X50
€ 1.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
220B0510
€ 0.50
223
223C0616
ref: 223
SCREW-PAN-WS
223C0616
€ 2.50
223A
223C0625
ref: 223A
SCREW-PAN-WS-CROS,6X2
€ 2.50
224
224C0510
ref: 224
SCREW-PAN-WP-CROS
€ 2.50
235
235B0408
ref: 235
SCREW-PAN-WP-CROS
€ 1.50
92009A
920091427
ref: 92009A
SCREW,5X14
920091427
€ 2.50
92015
920151343
ref: 92015
NUT,5MM,COWLING
920151343
€ 3.00
92015A
920151710
ref: 92015A
NUT
920151710
€ 4.00
92022
920221516
ref: 92022
WASHER,3.3X8X0.5
920221516
€ 1.50
92022A
920221653
ref: 92022A
WASHER,5.3X10X0.8
920221653
€ 2.00
92022B
920221808
ref: 92022B
WASHER,6.5MM
920221808
€ 2.50
92027
92027194
ref: 92027
COLLAR
92027194
€ 3.50
92037
920371943
ref: 92037
CLAMP,FLAP
920371943
€ 3.50
92039
920391041
ref: 92039
RIVET
920391041
€ 2.50
92071
920711042
ref: 92071
GROMMET
920711042
€ 4.50
92075
920751629
ref: 92075
DAMPER,SEAT COVER KIT
920751629
€ 3.00
92075A
920751883
ref: 92075A
DAMPER
€ 2.50
92143
921431025
ref: 92143
COLLAR,L=6.5
921431025
€ 4.00
