BATTERY CASE(ZG1200-B6/B7)

ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA

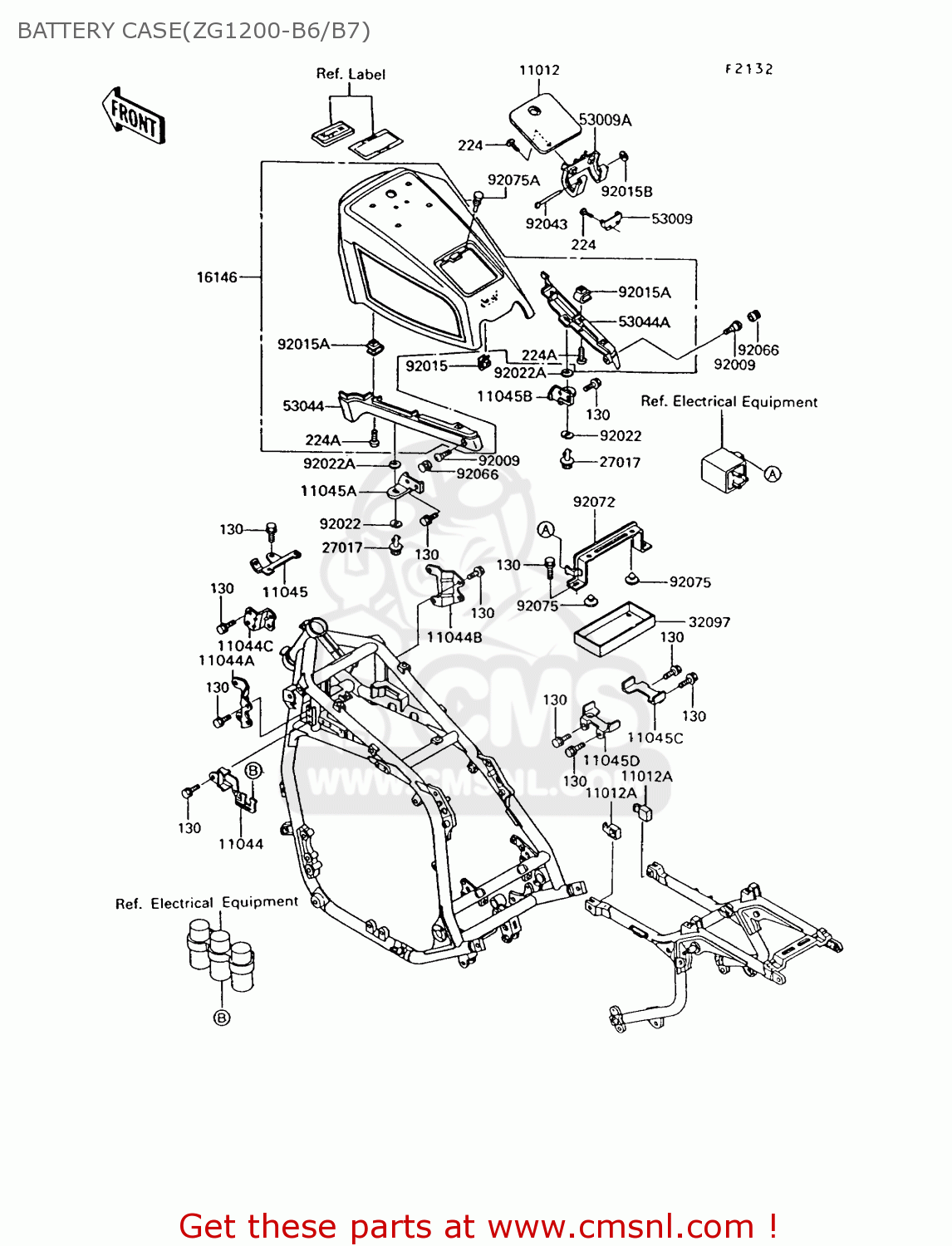

Battery case(zg1200-b6/b7) diagram ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA

BATTERY CASE(ZG1200-B6/B7) ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA
BATTERY CASE(ZG1200-B6/B7) ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA
BATTERY CASE(ZG1200-B6/B7) ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
224
224B0512
ref: 224
SCREW-PAN-WP-CROS
€ 2.00
224A
224B0516
ref: 224A
SCREW-PAN-WP-CROS
€ 0.50
11012
110121492H8
ref: 11012
DUMMY TANK CAP,EBONY
€ 36.00
11012A
110121542
ref: 11012A
CAP
€ 8.00
11044
110441683
ref: 11044
RELAY BRACKET
€ 11.50
11044A
110441684
ref: 11044A
IGNITION COIL BRACKET
€ 7.50
11044B
110441685
ref: 11044B
IGNITION COIL BRACKET
110441685
€ 7.00
11044C
110441686
ref: 11044C
THERMOSTAT BRACKET
€ 5.50
11045
110451056
ref: 11045
FUSE BRACKET
€ 9.00
11045A
110451077
ref: 11045A
DUMMY TANK BRACKET,LH
€ 12.00
11045B
110451078
ref: 11045B
DUMMY TANK BRACKET,RH
€ 5.50
11045C
110451297
ref: 11045C
BATTERY BRACKET,RH
€ 7.50
11045D
110451729
ref: 11045D
BATTERY BRACKET,LH
€ 7.50
16146
161461082TL
ref: 16146
DUMMY TANK COVER,EBONY/GREEN
€ 357.00
27017
270171124
ref: 27017
LOCK,DUMMY TANK
270171124
€ 5.50
32097
320971126
ref: 32097
BATTERY CASE
€ 12.50
53009
530091060
ref: 53009
DUMMY TANK HINGE
€ 3.50
53009A
530091066
ref: 53009A
DUMMY TANK CAP HINGE
€ 15.00
53044
530441138H8
ref: 53044
TRIM, DUMMY TANK,LH
€ 51.00
53044A
530441139H8
ref: 53044A
TRIM, DUMMY TANK,RH
€ 51.00
92009
920091258
ref: 92009
SCREW
920091258
€ 3.00
92015
920151569
ref: 92015
NUT,5MM
920151569
€ 4.50
92015A
920151573
ref: 92015A
NUT,5MM
920151573
€ 4.50
92015B
920151576
ref: 92015B
NUT,PUSH,2.6MM
€ 2.00
92022
920221776
ref: 92022
WASHER,WAVE,8MM
920221776
€ 3.00
92022A
920221808
ref: 92022A
WASHER,6.5MM
920221808
€ 2.50
92043
920431306
ref: 92043
PIN,2.6X88
920431306
€ 2.50
92066
920661243
ref: 92066
PLUG
920661243
€ 3.50
92072
920721194
ref: 92072
BATTERY BAND
€ 13.50
92075
92075078
ref: 92075
DAMPER,RUBBER
92075078
€ 2.50
92075A
920751808
ref: 92075A
DAMPER,6X10X15
920751808
€ 1.50
