Genuine ZG Kawasaki Parts delivered quickly!


CLUTCH

ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA

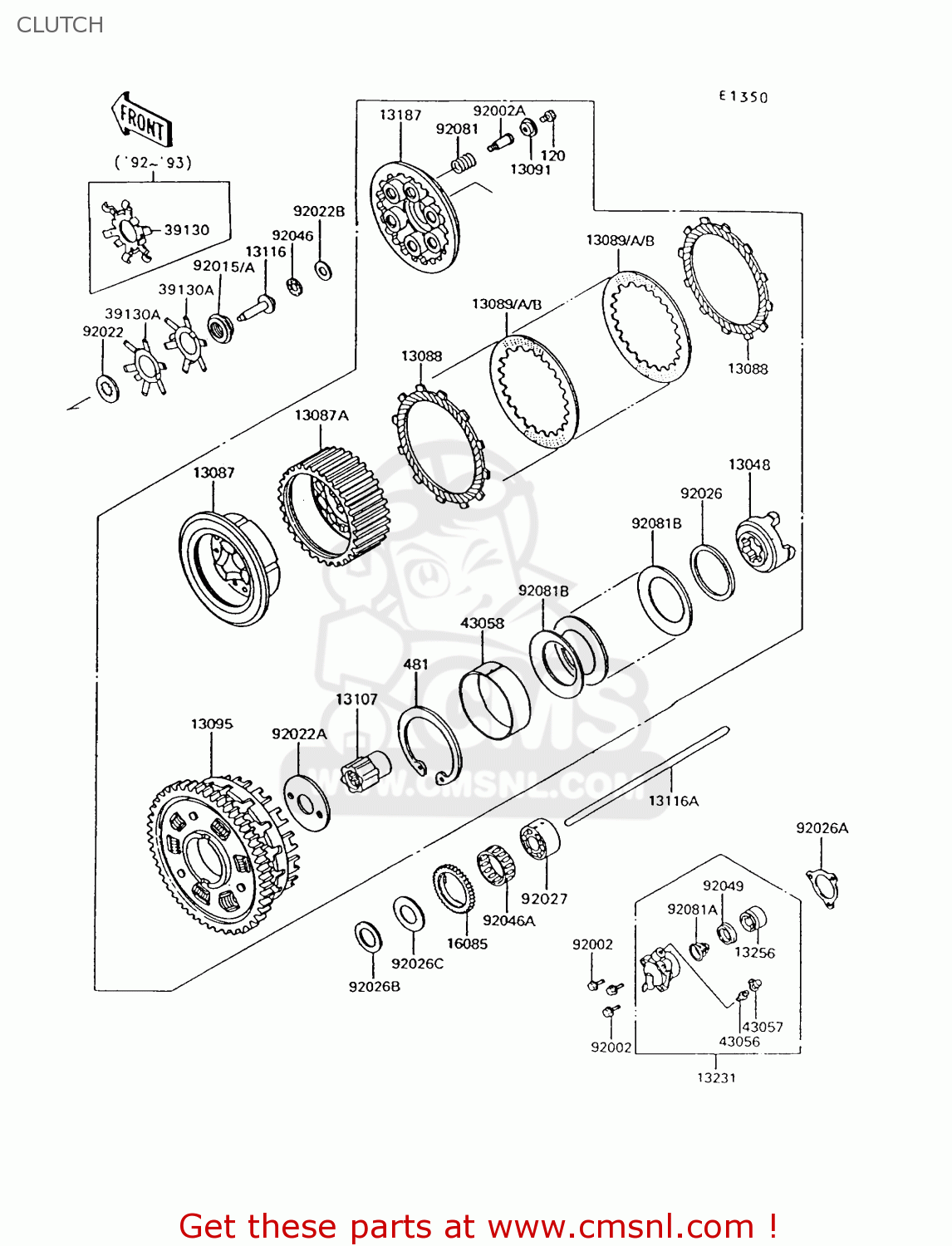

Clutch diagram ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA

CLUTCH ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA
CLUTCH ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA
CLUTCH ZG1200B7 VOYAGER XII 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120Q0616
ref: 120
BOLT,SOCKET,6X16
€ 4.50
13048
130481007
ref: 13048
CAM-DAMPER
€ 61.50
13087
130871071
ref: 13087
HUB-CLUTCH
€ 164.50
13087A
130871072
ref: 13087A
HUB-CLUTCH
130871072
€ 378.00
13088
130881051
ref: 13088
PLATE-FRICTION (NAS)
130881051
€ 14.00
13089
130891004
ref: 13089
PLATE,CLUTCH STEEL (NAS)
130891004
€ 6.50
13089A
130891067
ref: 13089A
PLATE-CLUTCH,T=2.6 (NAS)
130891067
€ 7.00
13089B
130891068
ref: 13089B
PLATE-CLUTCH,T=2.0 (NAS)
130891068
€ 6.50
13091
130911041
ref: 13091
HOLDER CLUTCH SPRING
130911041
€ 8.50
13095
130951252
ref: 13095
HOUSING-COMP-CLUTCH
€ 506.50
13107
131071299
ref: 13107
SHAFT,CLUTCH
131071299
€ 60.50
13116
131161102
ref: 13116
ROD-PUSH,CLUTCH
131161102
€ 26.50
13116A
131161121
ref: 13116A
ROD-PUSH,L=343
€ 20.00
13187
131871055
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
131871055
€ 64.00
13231
132311057
ref: 13231
RELEASE-ASSY-CLUTCH
€ 121.00
13256
132561051
ref: 13256
PISTON,CLUTCH RELEASE
132561051
€ 38.50
16085
160851157
ref: 16085
GEAR,OIL PUMP,37T
€ 124.50
39130
391301054
ref: 39130
SPRING-LEAF
391301054
€ 11.50
43056
430561055
ref: 43056
BREATHER-BRAKE
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
43058
430581059
ref: 43058
RING
430581059
€ 13.00
92002
920021612
ref: 92002
BOLT
920021612
€ 3.00
92002A
920021639
ref: 92002A
BOLT,CLUTCH
920021639
€ 7.50
92015
920151538
ref: 92015
NUT
920151538
€ 17.50
92022
920221114
ref: 92022
WASHER,TOOTHED,25X40X
920221114
€ 10.50
92022A
920221221
ref: 92022A
WASHER,CLUTCH THRUST
920221221
€ 10.50
92022B
920221463
ref: 92022B
WASHER,15.1X29X1.0
920221463
€ 3.00
92026
920261043
ref: 92026
SPACER,3.5X59X70
920261043
€ 19.00
92026A
920261263
ref: 92026A
SPACER,CLUTCH RELEASE
920261263
€ 11.50
92026B
920261306
ref: 92026B
SPACER
920261306
€ 12.50
92026C
920261307
ref: 92026C
SPACER
920261307
€ 12.50
92027
920271967
ref: 92027
COLLAR,INPUTSHAFT
920271967
€ 75.00
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
920461052
€ 14.00
92046A
920461152
ref: 92046A
BEARING-NEEDLE,K55602
920461152
€ 38.50
92049
920491165
ref: 92049
SEAL-OIL,PISTON
920491165
€ 13.00
92081
920811114
ref: 92081
SPRING,CLUTCH
920811114
€ 4.50
92081A
920811644
ref: 92081A
SPRING,CLUTCH RELEASE
920811644
€ 5.50
92081B
920811906
ref: 92081B
SPRING
920811906
€ 24.00
481
481J9500
ref: 481
CIRCLIP
€ 16.00
