GENERATOR
ZG1000A13 1000GTR 1998 FRANCE FG

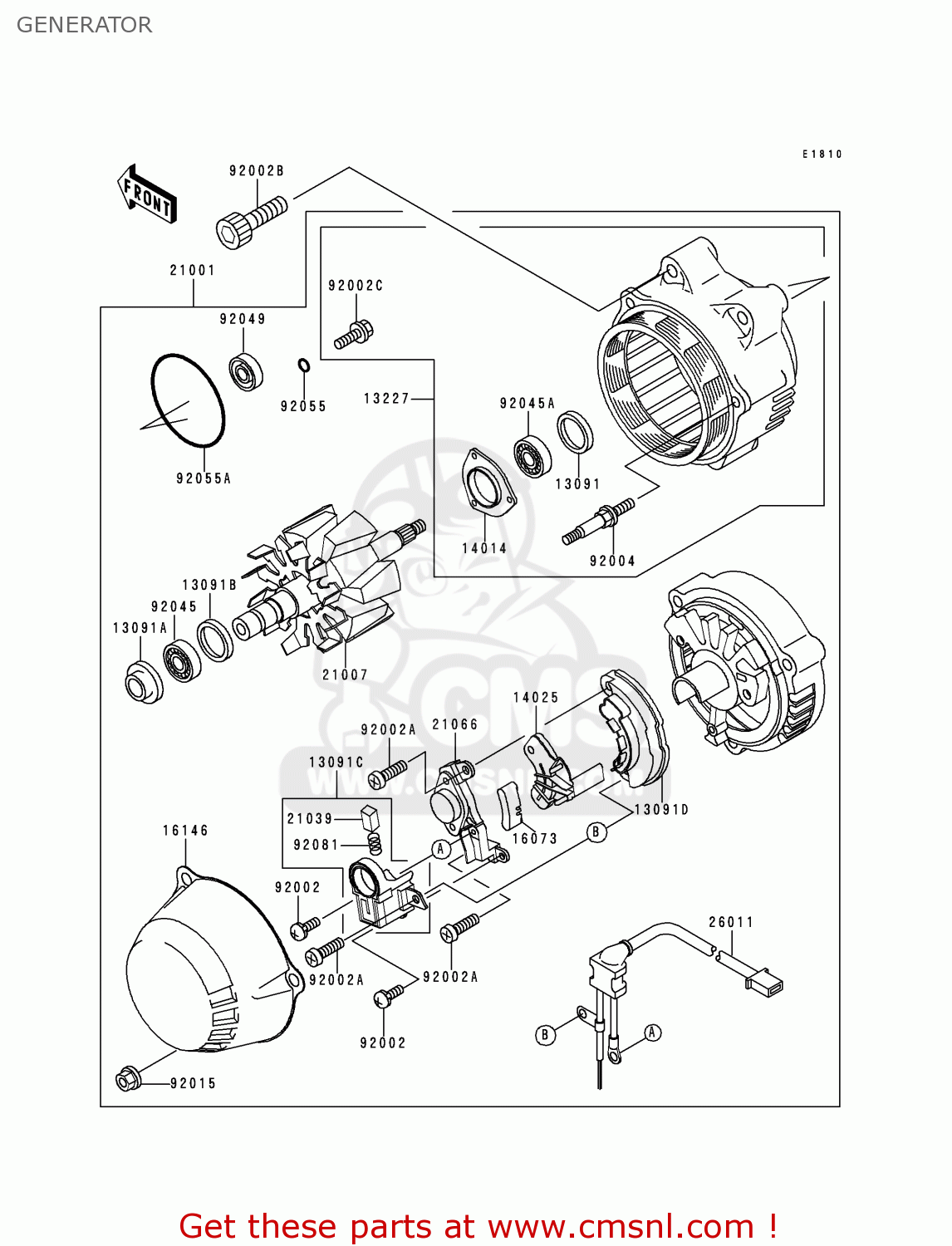

Generator diagram ZG1000A13 1000GTR 1998 FRANCE FG
GENERATOR ZG1000A13 1000GTR 1998 FRANCE FG
×
prices are in EUR
ref
part #
description
quantity
13091
130911326
ref: 13091
HOLDER,BEARING
€ 10.00
13091A
130911327
ref: 13091A
HOLDER,COVER
€ 13.00
13091B
130911328
ref: 13091B
HOLDER,BEARING
€ 10.00
13091C
130911465
ref: 13091C
HOLDER,BRUSH
€ 85.50
13091D
130911466
ref: 13091D
RECTIFIER
€ 432.50
13227
132271079
ref: 13227
HOUSING,GENERATOR
€ 683.50
14014
140141065
ref: 14014
PLATE-POSITION
€ 15.00
14025
140251942
ref: 14025
COVER,RECTIFIER
€ 7.50
16073
160731062
ref: 16073
INSULATOR
€ 14.50
16146
161461074
ref: 16146
COVER-ASSY,GENERATOR
€ 156.50
21001
210011104
ref: 21001
GENERATOR
€ 1,321.00
21007
210071196
ref: 21007
ROTOR,GENERATOR
€ 515.00
21039
210391052
ref: 21039
BRUSH,CARBON
€ 19.00
21066
210661076
ref: 21066
REGULATOR-VOLTAGE
€ 313.00
26011
260111432
ref: 26011
WIRE-LEAD,GENERATOR
€ 52.50
92002
920021379
ref: 92002
BOLT
€ 3.00
92002A
920021380
ref: 92002A
BOLT
€ 3.00
92002B
920021716
ref: 92002B
BOLT,SOCKET,8X45
€ 5.50
92002C
920021856
ref: 92002C
BOLT
€ 10.50
92004
920041196
ref: 92004
STUD
€ 17.50
92015
920151800
ref: 92015
NUT
€ 2.00
92045
920451133
ref: 92045
BEARING-BALL,#6002NC
€ 56.50
92045A
920451350
ref: 92045A
BEARING-BALL,#6002
€ 44.50
92049
920491200
ref: 92049
SEAL-OIL
€ 18.00
92055
920551264
ref: 92055
RING-O
€ 3.00
92055A
920551366
ref: 92055A
RING-O,70.6X2.4
€ 19.00
92081
920811759
ref: 92081
SPRING,BRUSH
€ 5.00
