FRONT HUB
ZG1000A13 1000GTR 1998 FRANCE FG

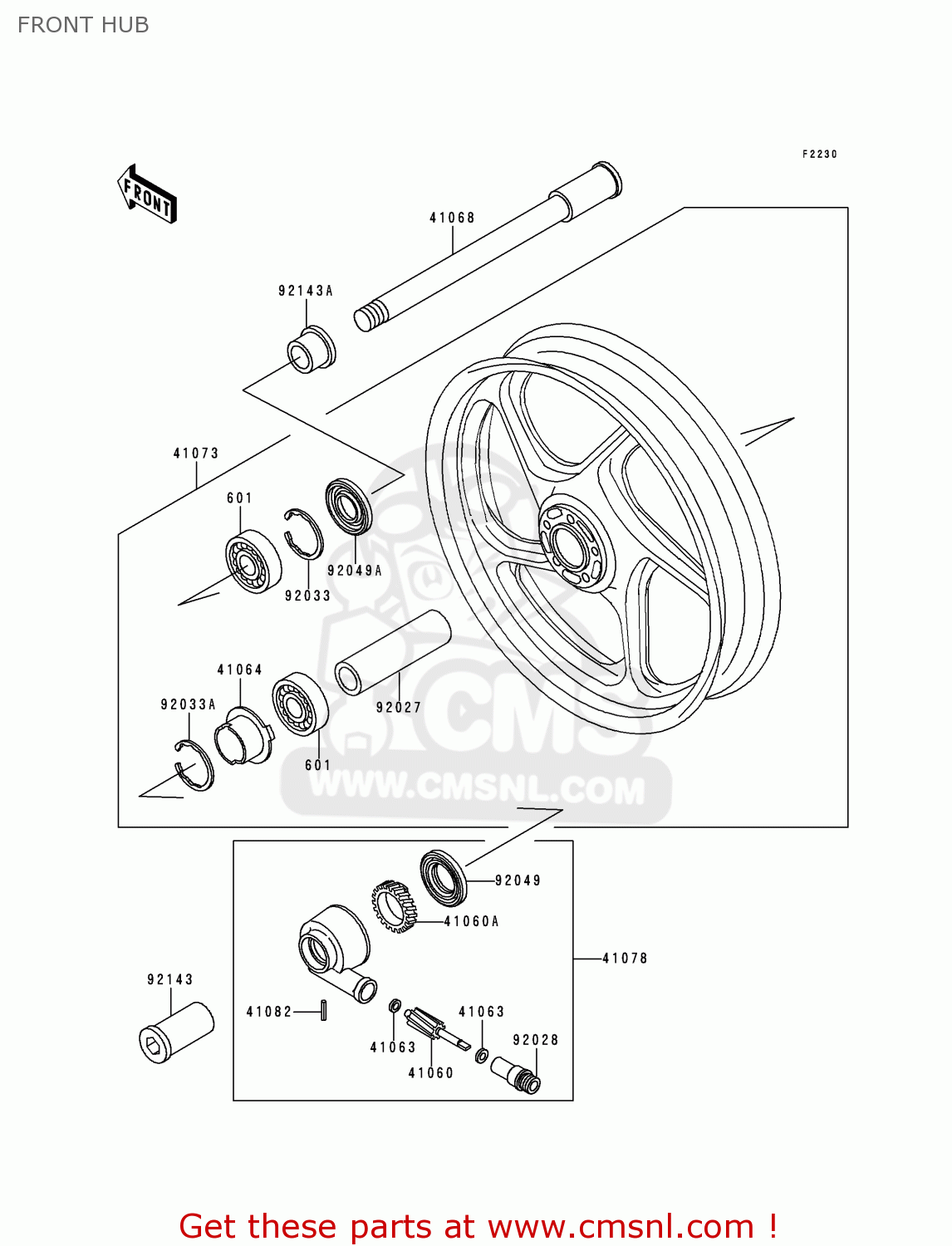

Front hub diagram ZG1000A13 1000GTR 1998 FRANCE FG
FRONT HUB ZG1000A13 1000GTR 1998 FRANCE FG
×
prices are in EUR
ref
part #
description
quantity
601
601B6203UU
ref: 601
BEARING-BALL,#6203UUC
€ 25.00
41060
410601123
ref: 41060
GEAR-METER SCREW,9T
€ 19.50
41060A
410601151
ref: 41060A
GEAR-METER SCREW,25T
€ 19.50
41063
41063001
ref: 41063
WASHER-THRST SPD PINI
€ 3.00
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
€ 9.50
41068
410681255
ref: 41068
AXLE,FR
€ 52.50
41073
410731545GE
ref: 41073
WHEEL-ASSY,FR,G.GRAY
€ 746.50
41078
410781101
ref: 41078
CASE-ASSY-METER GEAR
€ 113.50
41082
41082001
ref: 41082
PIN-SPRING
€ 2.50
92027
920271545
ref: 92027
COLLAR,17X25X92
€ 14.00
92028
920281066
ref: 92028
BUSHING,SPEEDOMET CAB
€ 7.50
92033
920331040
ref: 92033
RING,SNAP,40M/M
€ 4.00
92033A
920331041
ref: 92033A
CIRCLIP,42MM
€ 4.00
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
€ 7.50
92049A
920491110
ref: 92049A
SEAL-OIL,AG1258A0
€ 6.50
92143
921431206
ref: 92143
COLLAR,FR AXLE NUT,L=
€ 18.50
92143A
921431578
ref: 92143A
COLLAR,FR AXLE,L=15
€ 20.00
