CYLINDER HEAD

ZG1000A13 1000GTR 1998 FRANCE FG

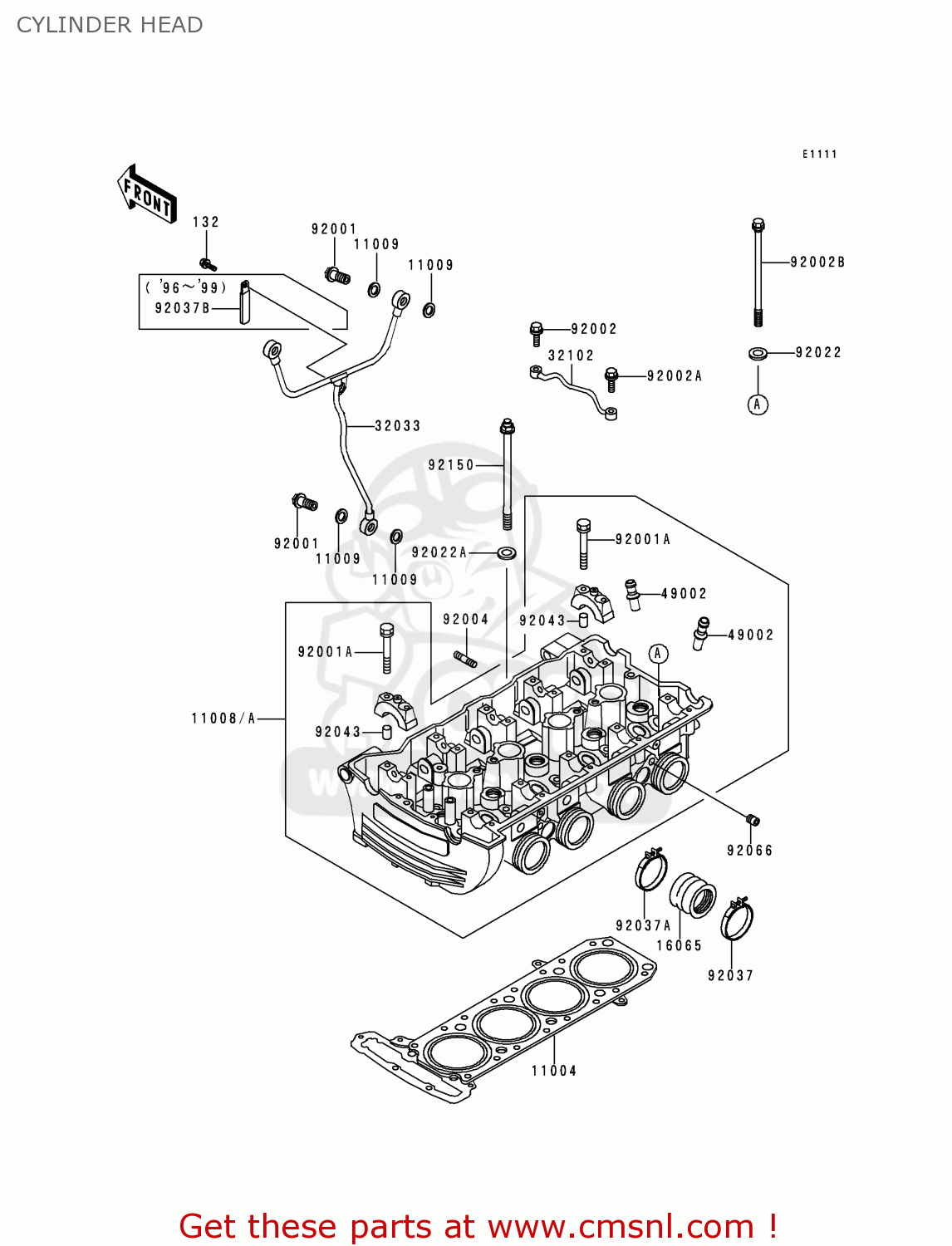

Cylinder head diagram ZG1000A13 1000GTR 1998 FRANCE FG

CYLINDER HEAD ZG1000A13 1000GTR 1998 FRANCE FG
CYLINDER HEAD ZG1000A13 1000GTR 1998 FRANCE FG
CYLINDER HEAD ZG1000A13 1000GTR 1998 FRANCE FG
prices are in EUR
ref
part #
description
quantity
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
132J0610
€ 1.50
11004
110041148
ref: 11004
GASKET-HEAD (NAS)
110041148
€ 86.50
11008
110081177
ref: 11008
FG
HEAD-COMP-CYLINDER
110081177
€ 2,057.50
11008A
110081178
ref: 11008A
FR
HEAD-COMP-CYLINDER
€ 1,965.50
11009
110091376
ref: 11009
GASKET,12.5X18X1.5 (NAS)
110091376
€ 1.50
16065
160651112
ref: 16065
HOLDER-CARBURETOR
160651112
€ 19.00
32033
320331850
ref: 32033
PIPE,OIL PAN-HEAD
320331850
€ 80.50
32102
321021423
ref: 32102
PIPE,CYLINDER HEAD
321021423
€ 25.00
49002
490021052
ref: 49002
GUIDE-VALVE
490021052
€ 26.00
92001
920011871
ref: 92001
BOLT,BANJO,12X23
920011871
€ 12.50
92001A
920011872
ref: 92001A
BOLT,6X46
920011872
€ 2.50
92002
920021911
ref: 92002
BOLT,6X30
920021911
€ 3.00
92002A
920021912
ref: 92002A
BOLT,6X25
920021912
€ 2.50
92002B
920021943
ref: 92002B
BOLT,10X164
920021943
€ 10.50
92004
920041110
ref: 92004
STUD,8X20
920041110
€ 8.00
92022
920221591
ref: 92022
WASHER,10.5X20X1.6
920221591
€ 3.00
92022A
920221720
ref: 92022A
WASHER
920221720
€ 2.50
92037
920371304
ref: 92037
CLAMP,ID=53,BLACK
920371304
€ 7.00
92037A
920371523
ref: 92037A
CLAMP
920371523
€ 8.50
92037B
920371539
ref: 92037B
FR
CLAMP,L=45
920371539
€ 3.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92066
920661201
ref: 92066
PLUG,PT1/8X7
€ 3.50
92150
921501075
ref: 92150
BOLT,11X164
921501075
€ 13.50
