CARBURETOR PARTS
ZG1000A13 1000GTR 1998 FRANCE FG

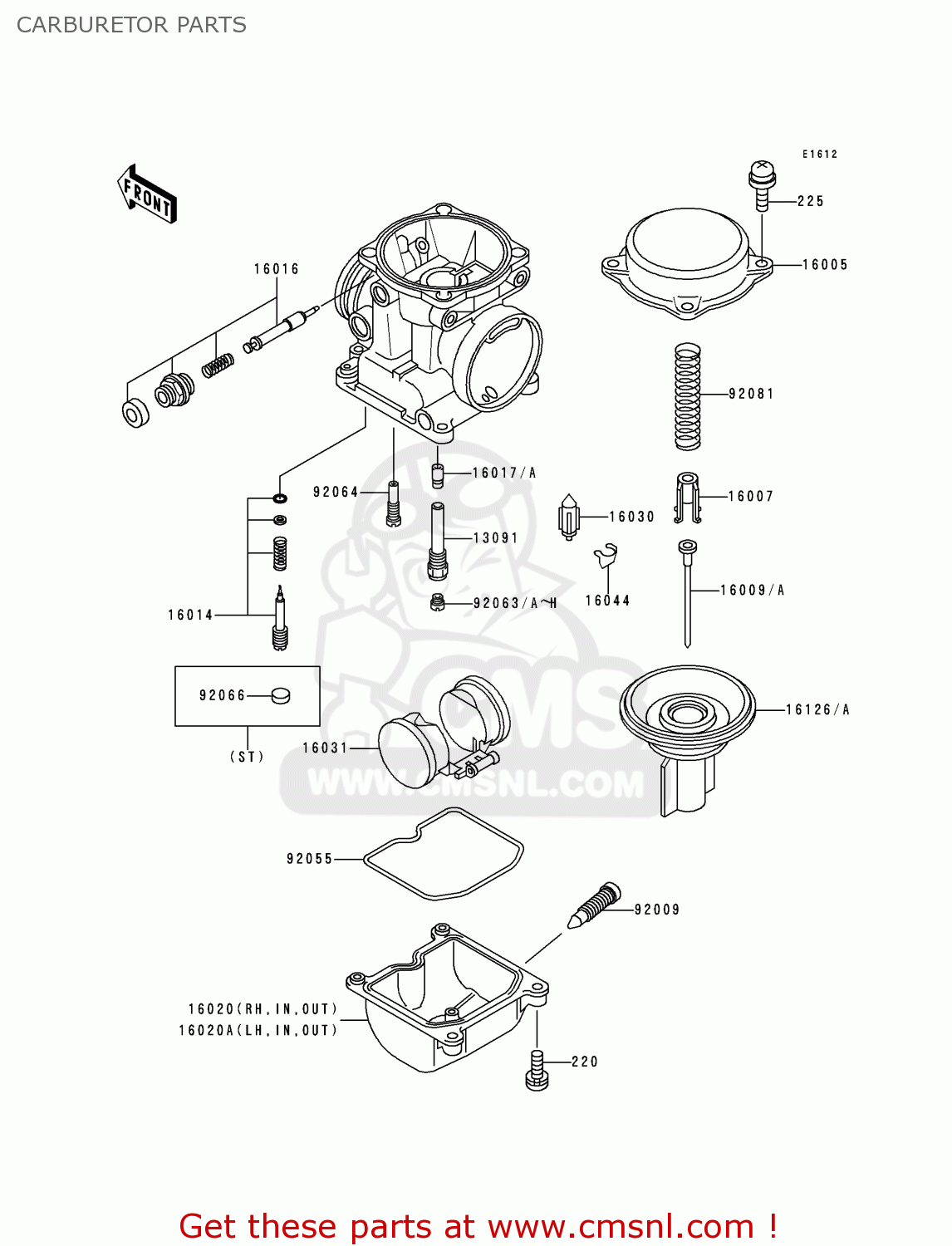

Carburetor parts diagram ZG1000A13 1000GTR 1998 FRANCE FG
CARBURETOR PARTS ZG1000A13 1000GTR 1998 FRANCE FG
×
prices are in EUR
ref
part #
description
quantity
13091
130911259
ref: 13091
HOLDER,NEEDLE JET
€ 19.00
16005
160051056
ref: 16005
TOP-CHAMBER,MIXING
€ 48.50
16007
160071120
ref: 16007
SEAT-SPRING
€ 16.50
16009A
160091887
ref: 16009A
NEEDLE-JET,N1QM
€ 23.00
16014
160141081
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161090
ref: 16016
PLUNGER,STARTER
€ 46.50
16017
160171270
ref: 16017
JET-NEEDLE,#6
€ 33.00
16020
160201054
ref: 16020
CHAMBER-FLOAT,RH,SIDE
€ 121.50
16020A
160201055
ref: 16020A
CHAMBER-FLOAT,LH,SIDE
€ 121.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311077
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261160
ref: 16126
VALVE,VACUUM
€ 159.50
92009
920091551
ref: 92009
SCREW,DRAIN
€ 6.50
92055
920551222
ref: 92055
RING-O,FLOAT CHAMBER
€ 12.50
92063
920631007
ref: 92063
MAIN JET, #110
€ 9.50
92063B
920631071
ref: 92063B
JET-MAIN,#118
€ 9.50
92063C
920631072
ref: 92063C
MAIN JET 2ND #120
€ 9.50
220
220D0414
ref: 220
SCREW-PAN-CROS
€ 2.00
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
92063G
920631117
ref: 92063G
JET-MAIN,#112
€ 9.50
92063H
920631118
ref: 92063H
JET-MAIN,#115
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
€ 11.50
92081
920811925
ref: 92081
SPRING,VACUUM VALVE
€ 16.00
