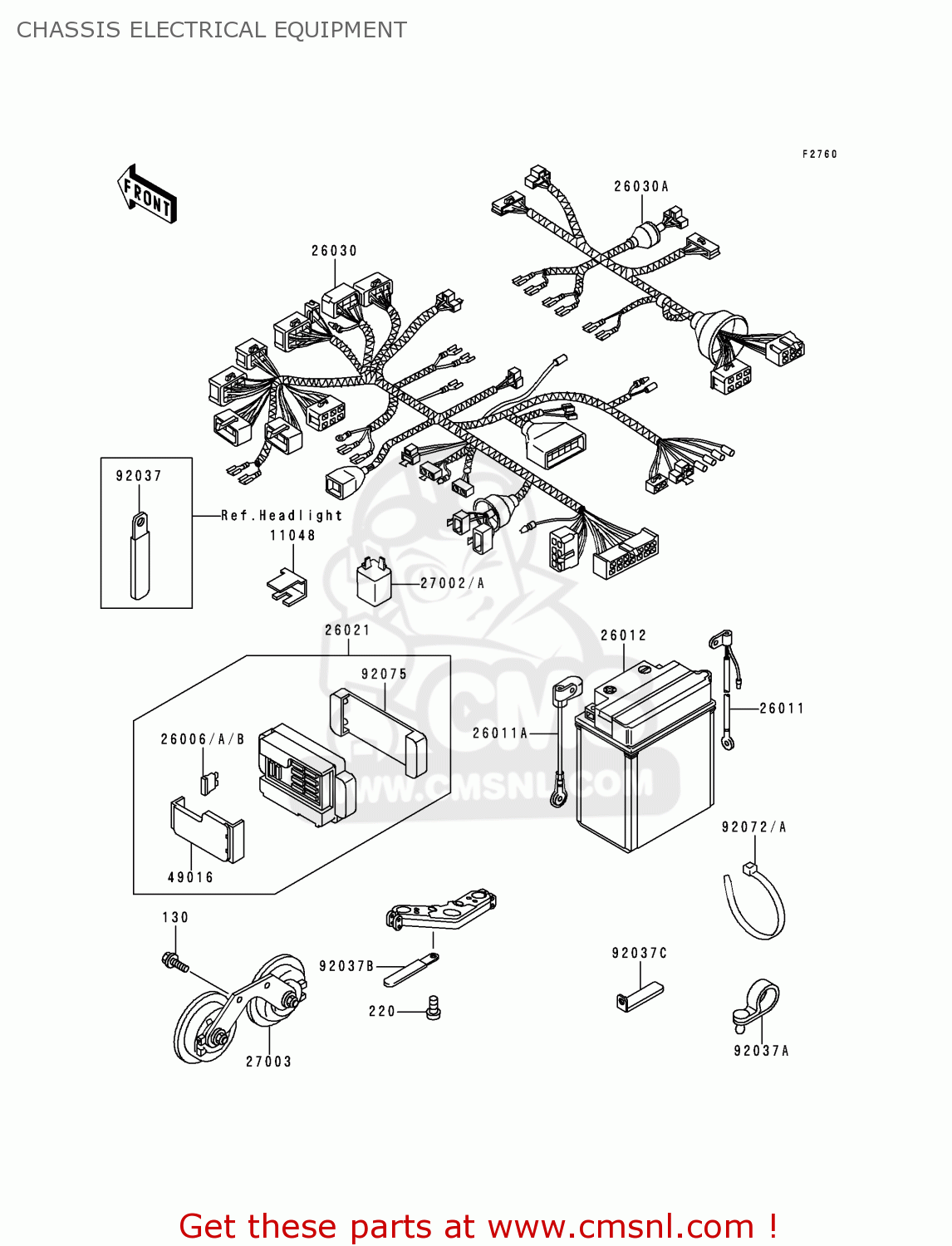

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130C0612
ref: 130

BOLT-FLANGED,6X12

€ 1.50

220

220C0510
ref: 220

SCREW-PAN-CROS

€ 2.50

11048

110481680
ref: 11048

BRACKET,FUSE LOCK

€ 4.50

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26006A

260061007
ref: 26006A

FUSE, 10A-R

€ 3.00

26006B

260061061
ref: 26006B

FUSE

€ 3.50

26011

260111323
ref: 26011

WIRE-LEAD,BATTERY(-)

€ 24.50

26011A

260111358
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 26.00

26012

260121340
ref: 26012

BATTERY,YB18L-A-TP,12

€ 115.50

26021

260211092
ref: 26021

JUNCTION BOX

€ 191.50

26030

260301254
ref: 26030

HARNESS,MAIN

€ 326.50

26030A

260301286
ref: 26030A

HARNESS,COWLING

€ 117.00

27002

270021053
ref: 27002
FR

RELAY-ASSY,TURN SIGNA

€ 33.50

27002A

270021060
ref: 27002A
FG

RELAY-ASSY,TURN SIGNA

€ 65.50

27003

270031372
ref: 27003

HORN,DOUBLE

€ 160.50

49016

490161170
ref: 49016

COVER-SEAL,FUSE

€ 12.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371163
ref: 92037A

CLAMP,HARNESS,REAR

€ 4.50

92037B

920371539
ref: 92037B

CLAMP,L=45

€ 3.00

92037C

920371564
ref: 92037C

CLAMP,HARNESS

€ 6.00

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92072A

920721197
ref: 92072A

BAND

€ 5.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50

all assemblies
