CARBURETOR
ZG1000A13 1000GTR 1998 FRANCE FG

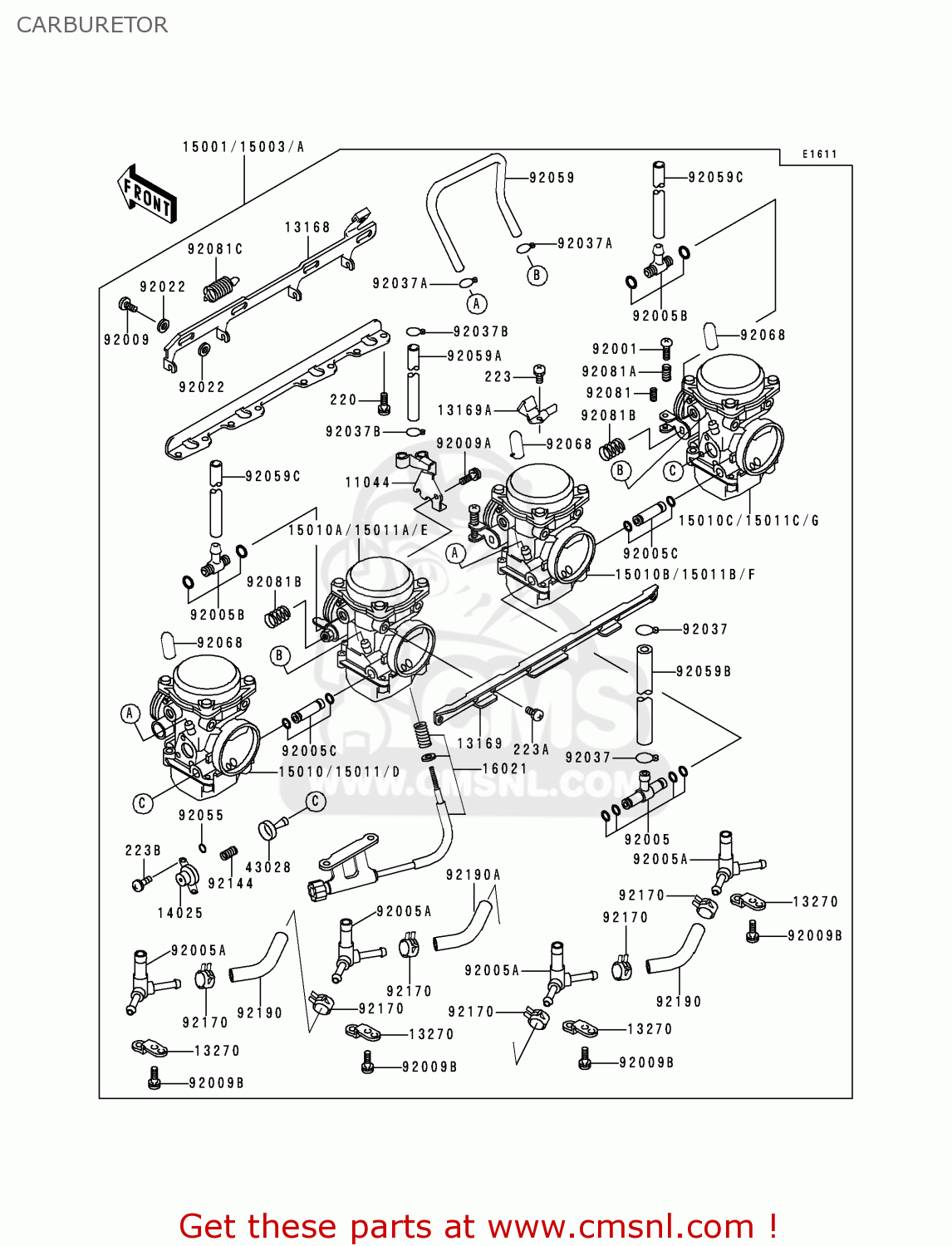

Carburetor diagram ZG1000A13 1000GTR 1998 FRANCE FG
CARBURETOR ZG1000A13 1000GTR 1998 FRANCE FG
×
prices are in EUR
ref
part #
description
quantity
11044
110441546
ref: 11044
BRACKET,THROTTLE CABL
€ 41.00
13168
131681245
ref: 13168
LEVER,STARTER
€ 95.50
13169
131691869
ref: 13169
PLATE,CARBURETOR STAY
€ 80.50
13169A
131691871
ref: 13169A
PLATE,STARTER CABLE
€ 16.00
13270
132701286
ref: 13270
PLATE,FITTING STAY
€ 46.00
14025
140251903
ref: 14025
COVER,AIR CUT VALVE
€ 43.00
15003
150031233
ref: 15003
FR
CARBURETOR-ASSY
€ 1,978.50
15003A
150031306
ref: 15003A
FG
CARBURETOR-ASSY
€ 2,622.00
15011
150111121
ref: 15011
FR
CARBURETOR,LH,OUTSIDE
€ 674.00
15011A
150111122
ref: 15011A
FR
CARBURETOR,LH,INSIDE
€ 674.00
15011B
150111123
ref: 15011B
FR
CARBURETOR,RH,INSIDE
€ 674.00
15011C
150111124
ref: 15011C
FR
CARBURETOR,RH,OUTSIDE
€ 674.00
15011D
150111343
ref: 15011D
FG
CARBURETOR,LH,OUTSIDE
€ 796.00
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
15011E
150111344
ref: 15011E
FG
CARBURETOR,LH,INSIDE
€ 796.00
15011F
150111345
ref: 15011F
FG
CARBURETOR,RH,INSIDE
€ 796.00
15011G
150111346
ref: 15011G
FG
CARBURETOR,RH,OUTSIDE
€ 796.00
16021
160211172
ref: 16021
SCREW-THROTTLE STOP
€ 76.00
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
€ 62.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051288
ref: 92005
FITTING
€ 22.00
92005A
920051300
ref: 92005A
FITTING
€ 18.00
92005B
920051306
ref: 92005B
FITTING
€ 19.00
92005C
920051310
ref: 92005C
FITTING
€ 25.00
92009
920091262
ref: 92009
SCREW
€ 4.00
92009A
920091365
ref: 92009A
SCREW
€ 4.50
92009B
920091704
ref: 92009B
SCREW
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371142
ref: 92037A
CLAMP,TUBE
€ 2.50
92037B
920371477
ref: 92037B
CLAMP,TUBE
€ 3.00
92055
920551245
ref: 92055
RING-O
€ 3.50
92059
920591140
ref: 92059
TUBE,3.5X6.5X180
€ 17.50
92059A
920591173
ref: 92059A
TUBE,5X9X200
€ 16.50
92059B
920591492
ref: 92059B
TUBE,7.3X12.5X260
€ 25.00
92059C
920591598
ref: 92059C
TUBE,6.5X9.5X260
€ 20.50
92068
92068006
ref: 92068
FG
RUBBER PLUG
€ 2.50
92068
92068006
ref: 92068
FR
RUBBER PLUG
€ 2.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
€ 6.50
92081C
920811762
ref: 92081C
SPRING,STARTER LEVER
€ 14.00
92144
921441072
ref: 92144
SPRING,AIR CUT VALVE
€ 6.50
92170
921701504
ref: 92170
CLAMP
€ 3.00
92190
921901530
ref: 92190
TUBE,WATER
€ 7.50
92190A
921901531
ref: 92190A
TUBE,WATER
€ 7.50
223B
223D0408
ref: 223B
SCREW-PAN-WS-CROS
€ 1.00
