COWLING LOWERS
ZG1000A13 1000GTR 1998 FRANCE FG

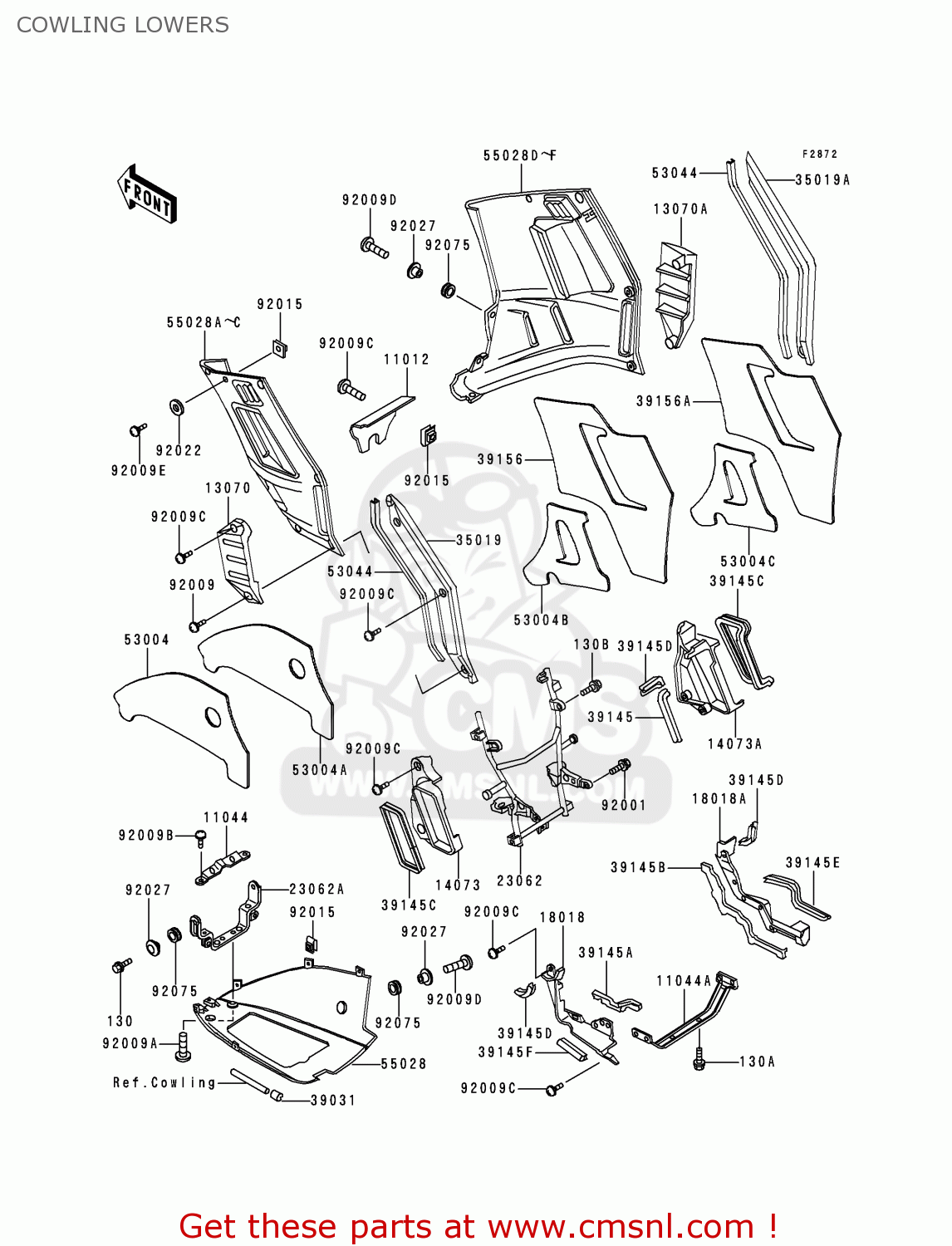

Cowling lowers diagram ZG1000A13 1000GTR 1998 FRANCE FG
COWLING LOWERS ZG1000A13 1000GTR 1998 FRANCE FG
×
prices are in EUR
ref
part #
description
quantity
11012
110121534T2
ref: 11012
CAP,RESERVOIR INSPECT
€ 54.00
11044
110441919
ref: 11044
BRACKET,RESERVOIR TAN
€ 5.50
11044A
110441920
ref: 11044A
BRACKET,LOWER COWLING
€ 25.50
13070
130701171
ref: 13070
GUIDE,SIDE COWLING,LH
€ 32.00
13070A
130701172
ref: 13070A
GUIDE,SIDE COWLING,RH
€ 30.50
14073
140731276
ref: 14073
DUCT,RADIATOR,RR,LH
€ 46.50
14073A
140731284
ref: 14073A
DUCT,RADIATOR,RR,RH
€ 81.50
18018
180181068
ref: 18018
PLATE-HEAT GUARD,SIDE
€ 76.50
18018A
180181069
ref: 18018A
PLATE-HEAT GUARD,SIDE
€ 81.50
23062
230621064
ref: 23062
BRACKET-COMP,RADIATOR
€ 216.50
23062A
230621065
ref: 23062A
BRACKET-COMP,LOWER CO
€ 24.50
35019
350191193
ref: 35019
FLAP,SIDE COWLING,LH
€ 46.00
35019A
350191194
ref: 35019A
FLAP,SIDE COWLING,RH
€ 38.50
39031
390311055
ref: 39031
CAP-END,TRIM
€ 3.50
39145
391451056
ref: 39145
TRIM-SEAL,SIDE COWLIN
€ 10.50
39145A
391451076
ref: 39145A
TRIM-SEAL,HEAT GUARD
€ 15.00
39145B
391451077
ref: 39145B
TRIM-SEAL,HEAT GUARD
€ 30.50
39145C
391451078
ref: 39145C
TRIM-SEAL,DUCT
€ 23.00
39145D
391451079
ref: 39145D
TRIM-SEAL,HEAT GUARD
€ 6.00
39145E
391451080
ref: 39145E
TRIM-SEAL,HEAT GUARD,
€ 15.00
39145F
391451084
ref: 39145F
TRIM-SEAL,HEAT GUARD,
€ 14.50
39156
391561525
ref: 39156
PAD,SIDE COWLING,LH
€ 28.00
39156A
391561526
ref: 39156A
PAD,SIDE COWLING,RH
€ 28.00
53004
530041105
ref: 53004
MAT,LWR COWLING,LH
€ 55.50
53004A
530041106
ref: 53004A
MAT,LWR COWLING,RH
€ 55.50
53004B
530041107
ref: 53004B
MAT,SIDE COWLING,LH
€ 38.50
53004C
530041108
ref: 53004C
MAT,SIDE COWLING,RH
€ 33.50
53044
530441184
ref: 53044
TRIM,INNER COWLING
€ 18.50
130
130C0618
ref: 130
BOLT-FLANGED
€ 1.50
130A
130G0610
ref: 130A
BOLT-FLANGED,6X10
€ 0.50
130B
130J0812
ref: 130B
BOLT-FLANGED
€ 0.50
55028
550281124T2
ref: 55028
COWLING,LWR,P.C.GRAY
€ 302.00
55028C
5502811543T
ref: 55028C
COWLING,SIDE,LH,GREEN
€ 468.00
55028F
5502811553T
ref: 55028F
COWLING,SIDE,RH,GREEN
€ 468.00
92001
920011844
ref: 92001
BOLT,FLANGED,10X41,BL
€ 5.00
92009
920091400
ref: 92009
SCREW,6X22
€ 3.50
92009A
920091402
ref: 92009A
SCREW,6X10
€ 1.50
92009B
920091651
ref: 92009B
SCREW
€ 2.50
92009C
920091662
ref: 92009C
SCREW
€ 2.50
92009D
920091663
ref: 92009D
SCREW
€ 2.50
92009E
920091664
ref: 92009E
SCREW
€ 2.50
92015
920151602
ref: 92015
NUT,6MM
€ 4.50
92022
920221818
ref: 92022
WASHER,6X16X1
€ 1.50
92027
920271935
ref: 92027
COLLAR,L=9.1,BLACK
€ 4.00
92075
920751634
ref: 92075
DAMPER
€ 3.00
