TRANSMISSION
Z550G5 GT550 1988 SWEDEN FG

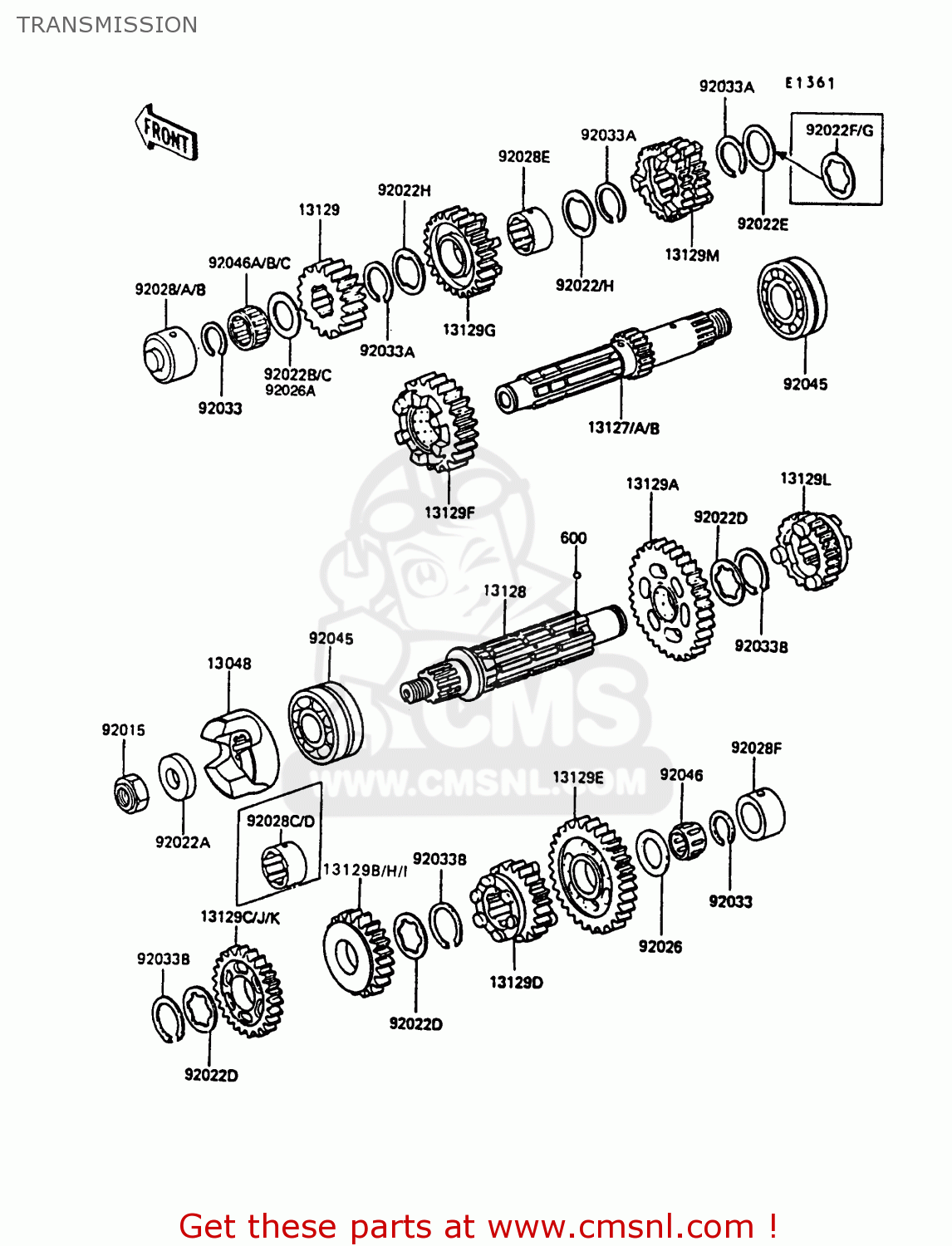

Transmission diagram Z550G5 GT550 1988 SWEDEN FG
TRANSMISSION Z550G5 GT550 1988 SWEDEN FG
×
prices are in EUR
ref
part #
description
quantity
13048
130481014
ref: 13048
CAM-DAMPER,OUTPUT SHA
€ 67.00
13127A
131271151
ref: 13127A
SHAFT-TRANSMISSION IN
€ 190.00
13128
131281043
ref: 13128
SHAFT-TRANSMISSION OU
€ 206.50
13129
131291077
ref: 13129
2ND GEAR,DRIVE,18T
€ 79.50
13129A
131291078
ref: 13129A
2ND GEAR,OUTPUT,32T
€ 75.50
13129D
131291083
ref: 13129D
GEAR,OUTPUT 5TH,25T
€ 114.50
13129E
131291564
ref: 13129E
GEAR,OUTPUT LOW,36T
€ 120.50
13129F
131291657
ref: 13129F
GEAR,INPUT 5TH,26T
€ 134.50
13129G
131291658
ref: 13129G
GEAR,INPUT TOP,27T
€ 107.00
13129H
131291659
ref: 13129H
GEAR,OUTPUT 3RD,29T
€ 44.00
13129J
131291660
ref: 13129J
GEAR,OUTPUT 4TH,27T
€ 113.50
13129L
131291662
ref: 13129L
GEAR,OUTPUT TOP,23T
€ 45.00
13129M
131291846
ref: 13129M
GEAR,INPUT 3RD&4TH,21
€ 103.00
92015
920151067
ref: 92015
NUT,LOCK,14MM
€ 6.00
92022A
920221115
ref: 92022A
WASHER,14.1X31X5
€ 8.00
92022B
92022112
ref: 92022B
WASHER,20.5X30X1,STEE
€ 6.00
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
92022D
920221139
ref: 92022D
WASHER,TOOTHED,28.3X3
€ 4.00
92022F
920221861
ref: 92022F
WASHER,TOOTHED,25.3X3
€ 4.00
92022H
92024033
ref: 92022H
WASHER,TOOTHED,25.5X3
€ 4.50
92026
920261022
ref: 92026
SPACER,20.3X30X2.0
€ 3.00
92028A
920281199
ref: 92028A
BUSHING,INPUT SHAFT
€ 52.00
92028C
920281364
ref: 92028C
BUSHING,OUTPUT 3RD&4T
€ 22.00
92028E
920281552
ref: 92028E
BUSHING,INPUT TOP GEA
€ 17.50
92028F
92028180
ref: 92028F
BUSHING,OUTPUT SFT
€ 21.50
92033
92033015
ref: 92033
CIRCLIP
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92033B
920331037
ref: 92033B
SNAP RING,25.9X1.2T
€ 3.00
92045
92045035
ref: 92045
BEARING-BALL,83993SH2
€ 66.50
92046
920461030
ref: 92046
BEARING-NEEDLE,VS20/1
€ 23.00
92046B
920461045
ref: 92046B
BEARING-NEEDLE,20V271
€ 25.00
