MUFFLER(S)
Z550G5 GT550 1988 SWEDEN FG

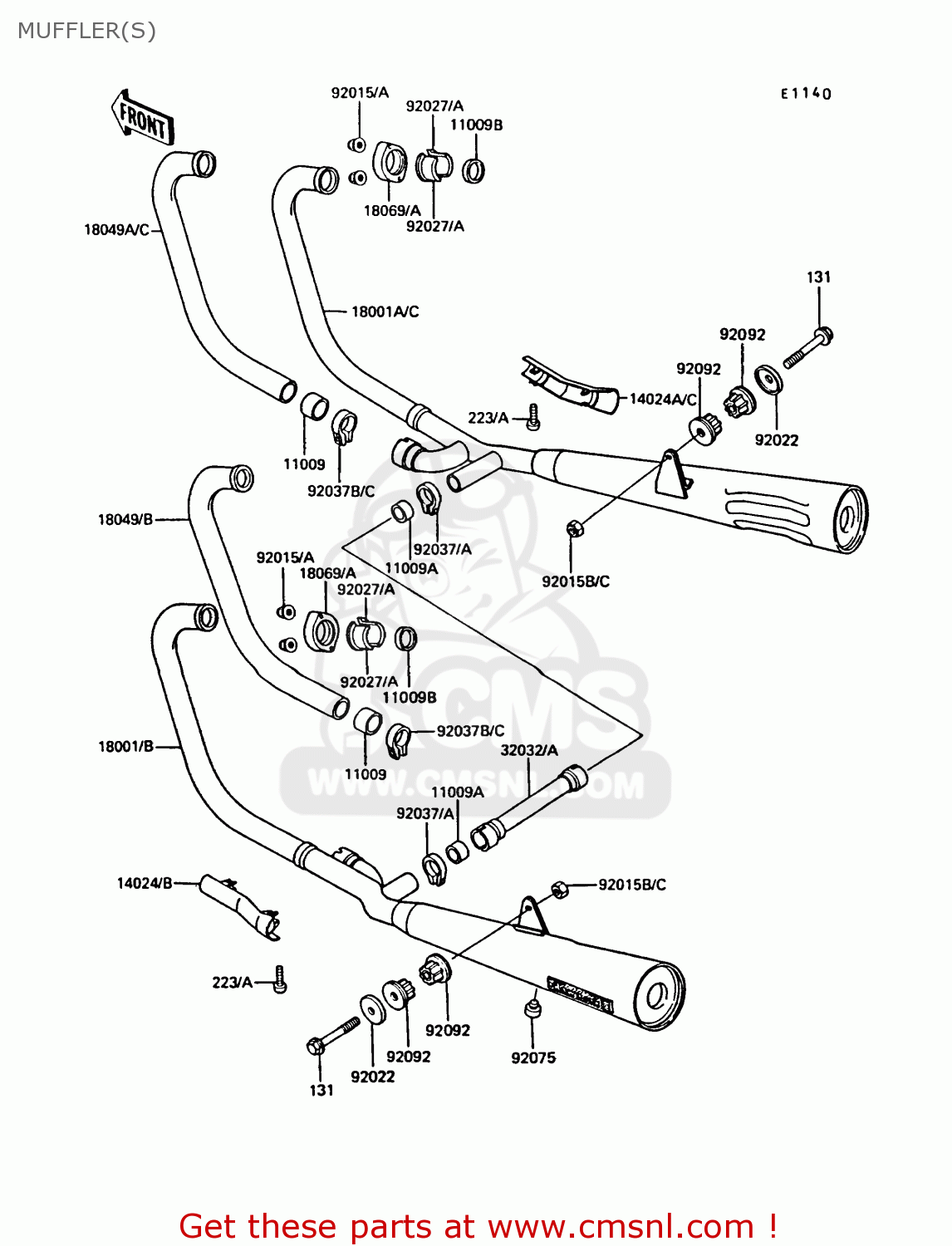

Muffler(s) diagram Z550G5 GT550 1988 SWEDEN FG
MUFFLER(S) Z550G5 GT550 1988 SWEDEN FG
×
prices are in EUR
ref
part #
description
quantity
131
131J1055
ref: 131
BOLT-FLANGED,10X55,BL
€ 4.00
223A
223X0640
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
11009
110091634
ref: 11009
GASKET,EXHAUST PIPE C (MCA)
€ 15.00
11009A
110091800
ref: 11009A
GASKET,MUFFLER CONNEC (MCA)
€ 15.00
11009B
18067004
ref: 11009B
GASKET-EXHAUST PIPE (MCA)
€ 7.50
14024B
140251531
ref: 14024B
COVER,MUFFLER,LH
€ 34.00
14024C
140251532
ref: 14024C
COVER,MUFFLER,RH
€ 34.00
18001
180011524
ref: 18001
MUFFLER,LH
€ 572.50
18001A
180011525
ref: 18001A
MUFFLER,RH
€ 521.00
18049
180491154
ref: 18049
PIPE-EXHAUST,#2
€ 120.50
18049A
180491155
ref: 18049A
PIPE-EXHAUST,#3
€ 120.50
18069A
180691025
ref: 18069A
HOLDER-EXHAUST PIPE
€ 15.00
32032
320321671
ref: 32032
PIPE,MUFFLER CONNECTI
€ 17.50
92015A
920151385
ref: 92015A
NUT,CAP,6MM
€ 2.50
92015B
920151387
ref: 92015B
NUT,FLANGED,10MM
€ 2.50
92022
920221355
ref: 92022
WASHER
€ 3.50
92027A
92027264
ref: 92027A
COLLAR, EXHAUST PIPE
€ 3.00
92037
920371227
ref: 92037
CLAMP,MUFFLER
€ 18.00
92037B
920371349
ref: 92037B
CLAMP,42MM
€ 8.50
92075
920751002
ref: 92075
DAMPER RUBBER,MAIN ST
€ 4.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
€ 11.50
