FRAME

Z550G5 GT550 1988 SWEDEN FG

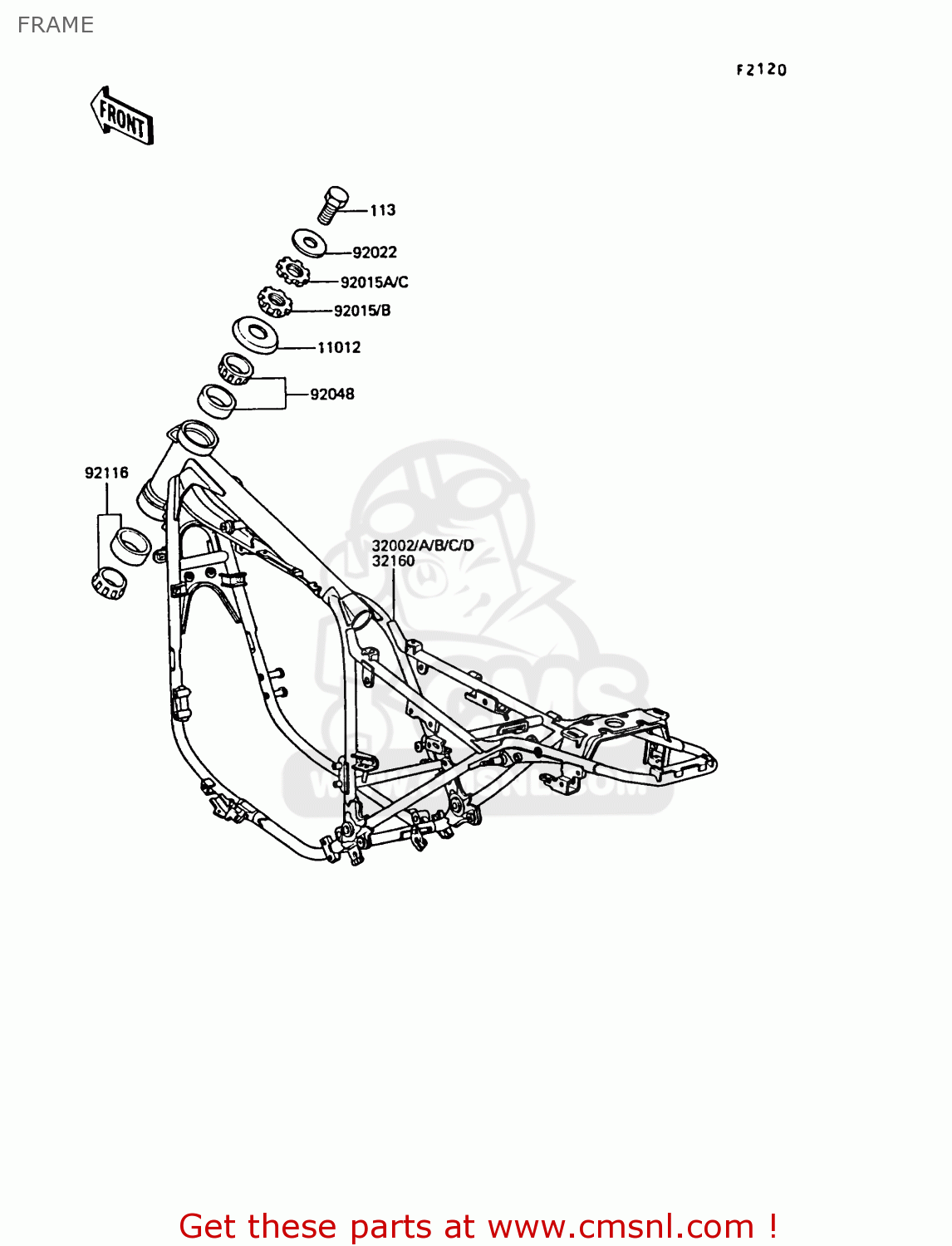

Frame diagram Z550G5 GT550 1988 SWEDEN FG

FRAME Z550G5 GT550 1988 SWEDEN FG

FRAME Z550G5 GT550 1988 SWEDEN FG

prices are in EUR

ref

part #

description

quantity

113

113G1425
ref: 113

BOLT-SMALL-FINE,14X25

€ 5.50

11012

110121256
ref: 11012

CAP,STEERING STEM

€ 4.00

32002D

320021733
ref: 32002D

FRAME-COMP

€ 744.00

92015B

920151377
ref: 92015B

NUT,25MM,T=10

€ 18.50

92015C

920151378
ref: 92015C

NUT,25MM,T=6

€ 14.50

92022

920221229
ref: 92022

WASHER,14.5X36X4.5

€ 8.00

92048

92047017
ref: 92048

CONE,STRNG,STEM

€ 49.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00
