IGNITION SWITCH
Z550G5 GT550 1988 SWEDEN FG

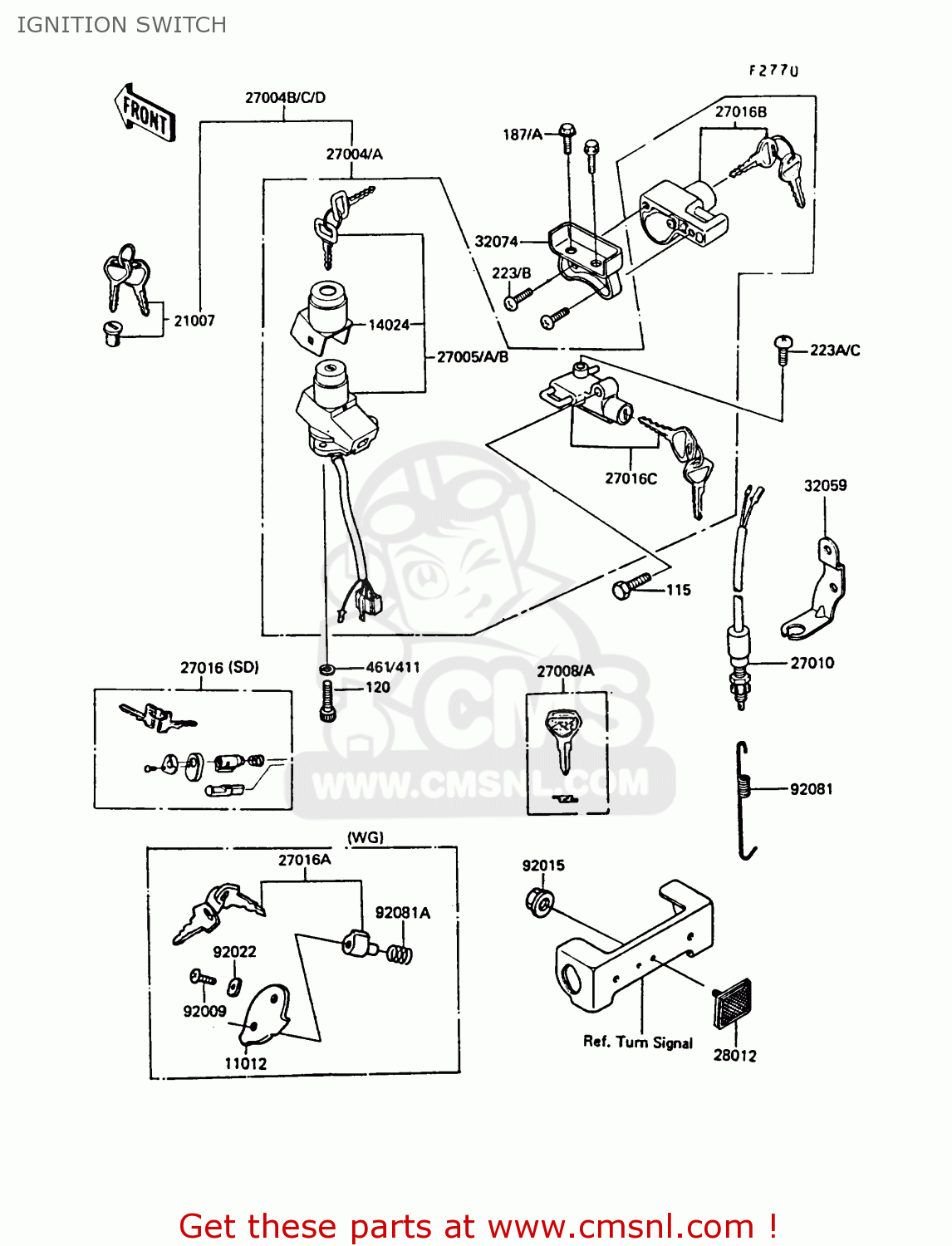

Ignition switch diagram Z550G5 GT550 1988 SWEDEN FG
IGNITION SWITCH Z550G5 GT550 1988 SWEDEN FG
×
prices are in EUR
ref
part #
description
quantity
11012
110121134
ref: 11012
CAP,STEERING LOCK
€ 4.50
21007
210075005
ref: 21007
ROTOR,FUEL TANK
€ 71.00
27004D
270045265
ref: 27004D
SWITCH-ASSY
€ 251.00
27005B
270055054
ref: 27005B
SWITCH-ASSY-IGNITION
€ 154.00
27008A
270081103
ref: 27008A
KEY-LOCK,BLANK
€ 13.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
€ 23.00
27016A
270161005
ref: 27016A
LOCK-ASSY,STEERING
€ 65.00
27016B
270165038
ref: 27016B
LOCK-ASSY,HELMET
€ 67.50
27016C
270165049
ref: 27016C
LOCK-ASSY,SEAT
€ 63.00
28012
280121054
ref: 28012
REFLECTOR-REFLEX,RR
€ 15.00
32059
320591024
ref: 32059
BRACKET-SWITCH
€ 8.00
115
115C0830
ref: 115
BOLT-SMALL-UPSET,8X30
€ 2.50
120
120T0616
ref: 120
BOLT-SOCKET
€ 1.50
187A
187C0612
ref: 187A
BOLT-UPSET-WSP
€ 2.00
223B
223C0508
ref: 223B
SCREW-PAN-WS-CROS
€ 2.00
223C
223C0610
ref: 223C
SCREW-PAN-WS-CROS
€ 2.50
411
411E0600
ref: 411
W-PLAIN-S
€ 0.50
32074
320741046
ref: 32074
BRACKET-LOCK,HELMET
€ 9.50
92009
92008007
ref: 92009
SCREW-TAPPING
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92022
92097003
ref: 92022
WASHER
€ 2.50
92081
27011004
ref: 92081
SPRING-BRAKE LAMP SW
€ 2.50
92081A
27032001
ref: 92081A
SPRING-STEERING LOCK
€ 3.50
