REAR HUB

Z550G5 GT550 1988 SWEDEN FG

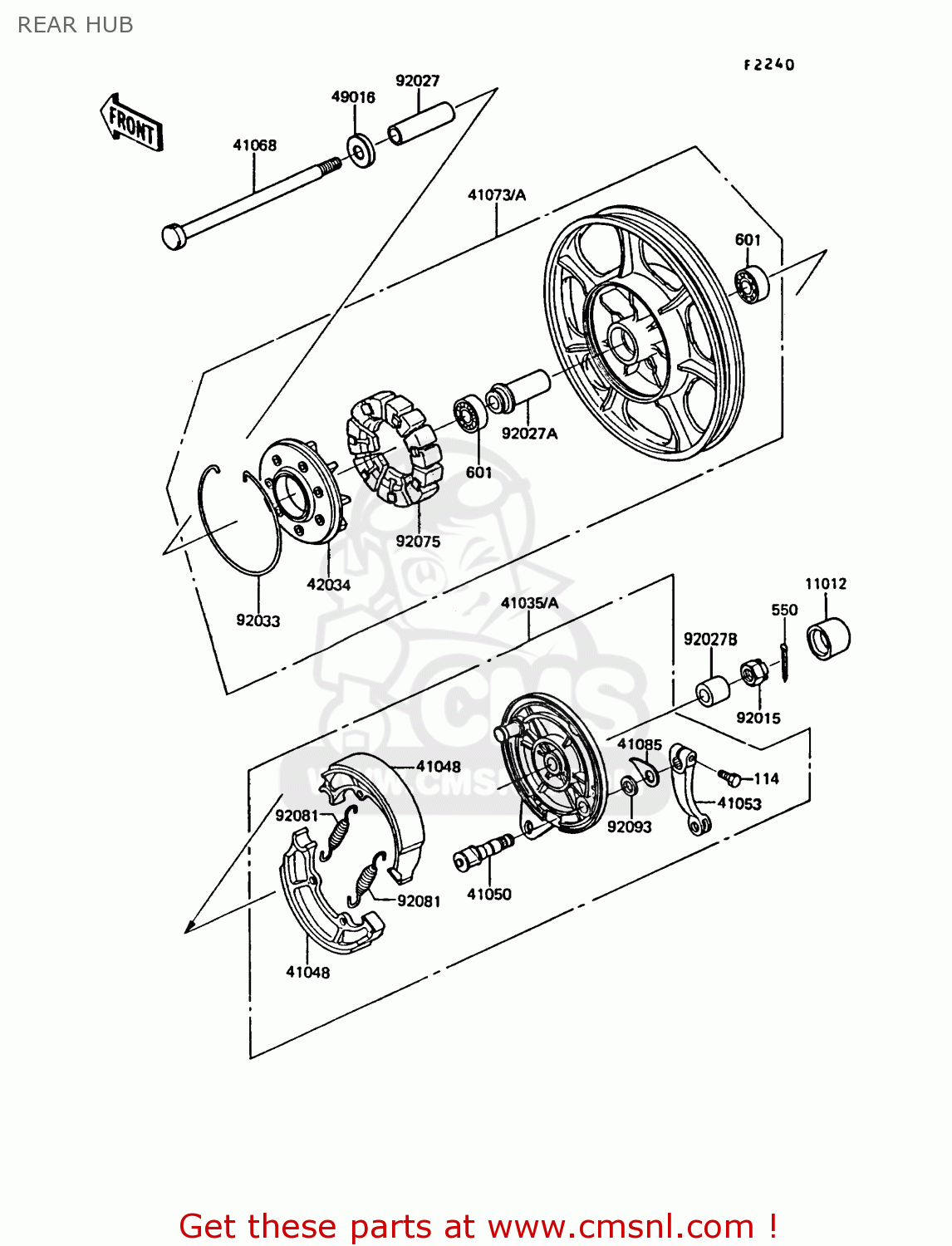

Rear hub diagram Z550G5 GT550 1988 SWEDEN FG

REAR HUB Z550G5 GT550 1988 SWEDEN FG
REAR HUB Z550G5 GT550 1988 SWEDEN FG
REAR HUB Z550G5 GT550 1988 SWEDEN FG
prices are in EUR
ref
part #
description
quantity
114
114G0828
ref: 114
BOLT-SMALL,8X28
€ 2.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6303ZG
ref: 601
BRG,BALL, 6303ZC3
€ 17.50
11012
110121590
ref: 11012
WG
CAP,AXLE NUT
110121590
€ 3.50
41035
410351110
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 472.00
41048
42019012
ref: 41048
SHOE, BRAKE (MCA)
42019012
€ 26.00
41050
41050017
ref: 41050
CAM-BRAKE
€ 25.50
41053
42029039
ref: 41053
LEVER REAR BRAKE CAM
42029039
€ 37.00
41068
410681086
ref: 41068
AXLE,RR
410681086
€ 49.00
41073A
41073116221
ref: 41073A
WHEEL-ASSY,RR,F.BLACK
€ 992.00
41085
41085004
ref: 41085
INDICATOR,BRAKE SHOE
41085004
€ 10.00
42034
420341029
ref: 42034
COUPLING,RR HUB
€ 154.50
49016
490161038
ref: 49016
COVER-SEAL,RR AXLE
€ 4.50
92015
92015055
ref: 92015
NUT,16MM
92015055
€ 8.00
92027
920271415
ref: 92027
COLLAR,17.2X25X79
920271415
€ 14.00
92027A
920271416
ref: 92027A
COLLAR,L=60
€ 12.50
92027B
920271466
ref: 92027B
COLLAR,AXLE,17.2X30X3
€ 13.50
92033
920331075
ref: 92033
RING-SNAP,194MM
920331075
€ 10.50
92075
920751372
ref: 92075
DAMPER,RR HUB SHOCK
920751372
€ 66.00
92081
41049007
ref: 92081
SPRING-BRAK SHOE
41049007
€ 6.00
92093
41051003
ref: 92093
DUST SHIELD-BRAKE CAM
41051003
€ 2.50
