CARBURETOR PARTS(Z550-G4/G5)
Z550G5 GT550 1988 SWEDEN FG

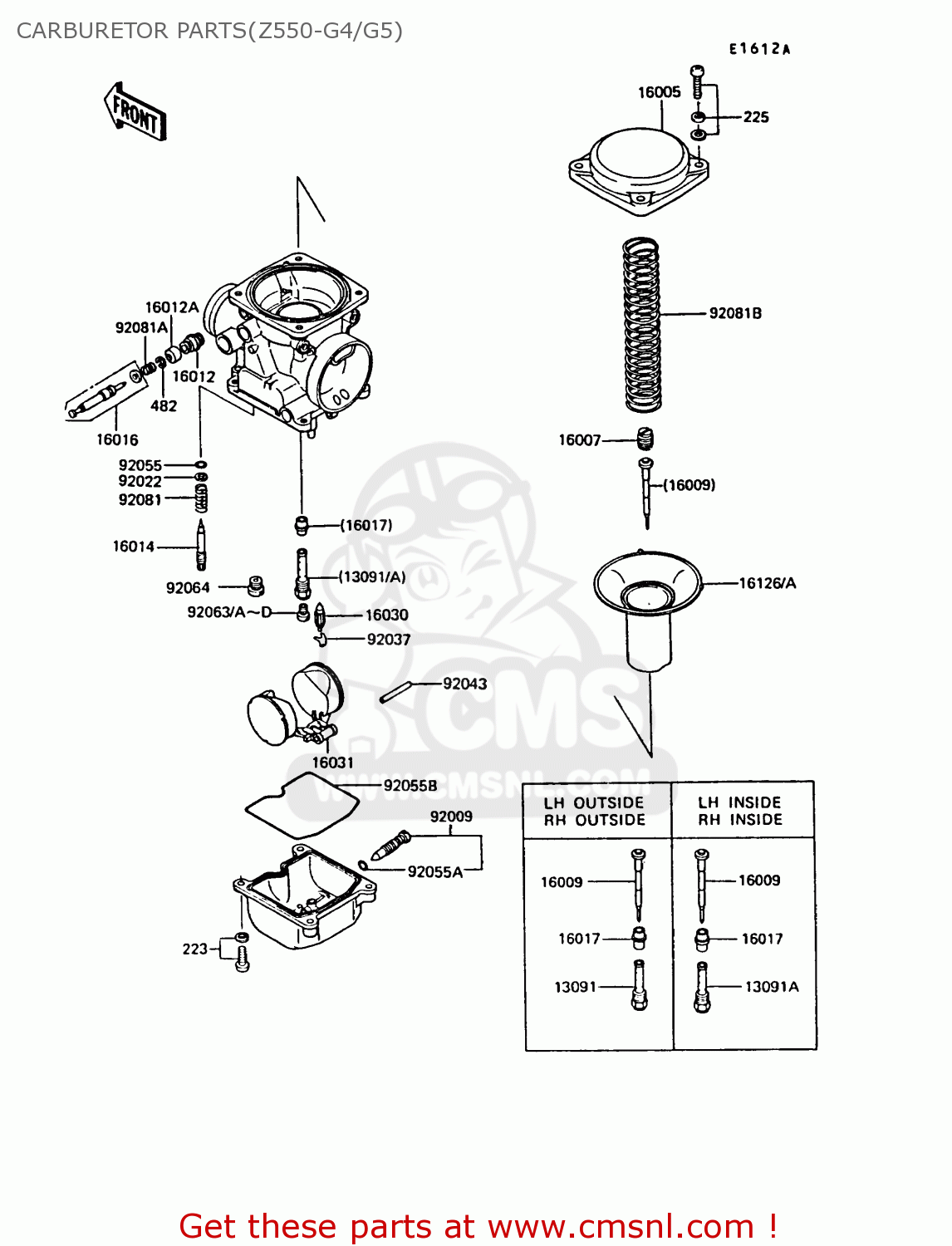

Carburetor parts(z550-g4/g5) diagram Z550G5 GT550 1988 SWEDEN FG
CARBURETOR PARTS(Z550-G4/G5) Z550G5 GT550 1988 SWEDEN FG
×
prices are in EUR
ref
part #
description
quantity
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
482
482L4000
ref: 482
CIRCLIP-TYPE-E,4MM
€ 0.50
13091
130911258
ref: 13091
HOLDER,NEEDLE JET
€ 14.50
13091A
130911259
ref: 13091A
HOLDER,NEEDLE JET
€ 19.00
16005
160051051
ref: 16005
TOP-CHAMBER
€ 23.00
16007
160071022
ref: 16007
SEAT-SPRING,THROTTLE
€ 8.00
16009
160091349
ref: 16009
NEEDLE-JET,N16E
€ 20.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
€ 10.00
16014
160141029
ref: 16014
SCREW-PILOT AIR
€ 13.50
16016
160161070
ref: 16016
PLUNGER,STARTER
€ 23.50
16017
160171208
ref: 16017
JET-NEEDLE,#6
€ 37.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311052
ref: 16031
FLOAT
€ 48.50
16126
161261194
ref: 16126
SD
VALVE,VACUUM
€ 137.50
16126A
161261195
ref: 16126A
WG
VALVE,VACUUM
€ 120.00
92009
920091095
ref: 92009
SCREW,DRAIN
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
€ 4.00
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
€ 12.50
92063
920631009
ref: 92063
JET-MAIN,#105
€ 10.00
92063A
920631114
ref: 92063A
JET-MAIN,#110
€ 9.50
92063B
920631116
ref: 92063B
JET-MAIN,#108
€ 9.50
92063C
920631117
ref: 92063C
JET-MAIN,#112
€ 9.50
92063D
920631118
ref: 92063D
JET-MAIN,#115
€ 9.50
92064
920641035
ref: 92064
JET-PILOT,#35
€ 12.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811618
ref: 92081A
SPRING,STARTER PLUNGE
€ 4.50
92081B
920811628
ref: 92081B
SPRING,VACUUM VALVE
€ 13.00
