CYLINDER HEAD
Z550G5 GT550 1988 SWEDEN FG

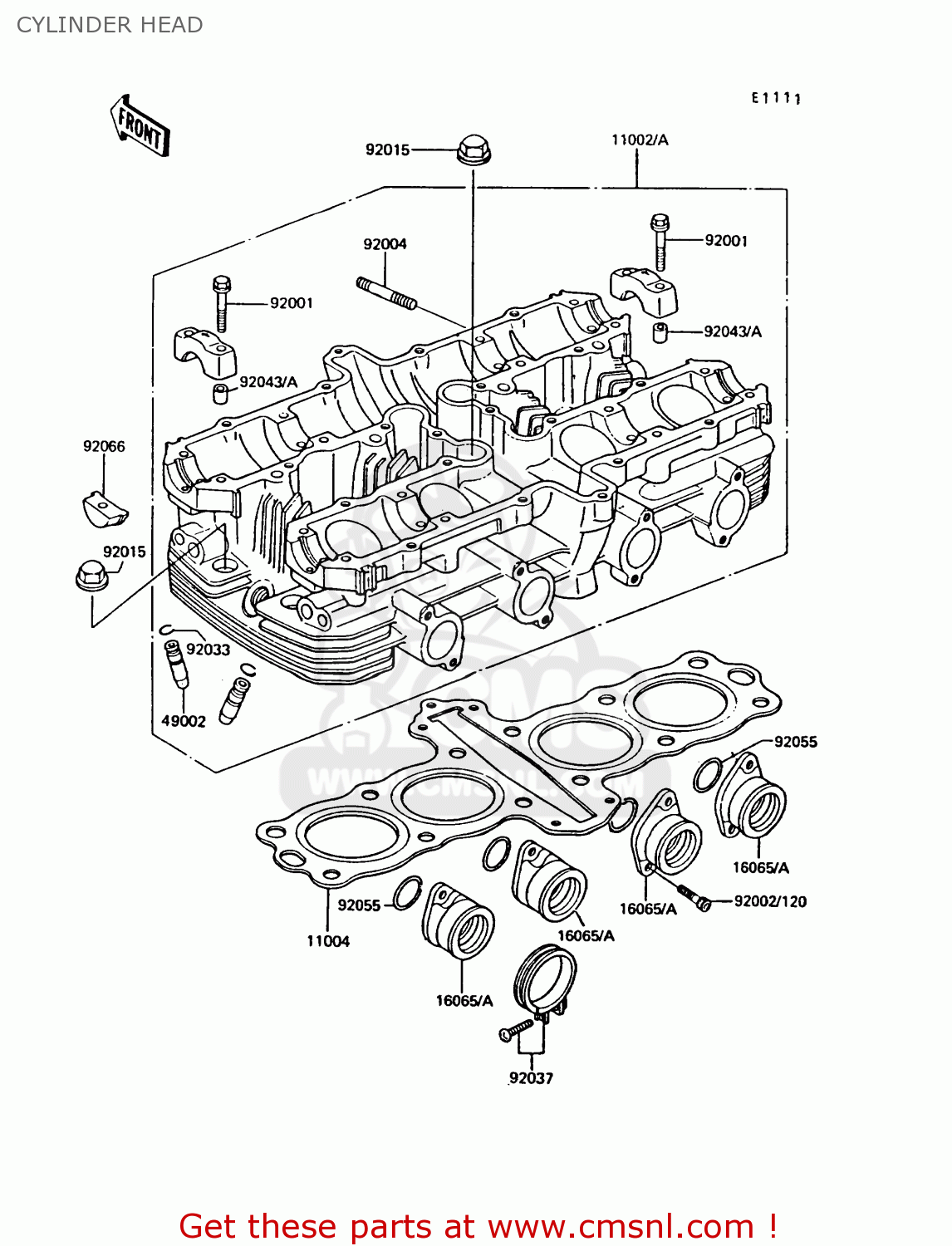

Cylinder head diagram Z550G5 GT550 1988 SWEDEN FG
CYLINDER HEAD Z550G5 GT550 1988 SWEDEN FG
×
prices are in EUR
ref
part #
description
quantity
11002A
110021157
ref: 11002A
HEAD-ASSY-CYLINDER
€ 1,720.00
11004
110041021
ref: 11004
GASKET,CYL HEAD (MCA)
€ 72.00
16065A
160651110
ref: 16065A
HOLDER-CARBURETOR
€ 31.00
49002
490021005
ref: 49002
GUIDE-VALVE
€ 30.00
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
€ 3.00
92002
920021143
ref: 92002
BOLT,6X16
€ 2.50
92004
92004066
ref: 92004
STUD, 6X27
€ 3.50
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
€ 3.00
92033
92036023
ref: 92033
CIRCLIP,VALVE GUIDE
€ 0.50
92037
920371326
ref: 92037
CLAMP
€ 5.50
92043A
920431263
ref: 92043A
PIN,DOWEL,6.2X8X14
€ 0.50
92055
920551233
ref: 92055
RING-O,CARBURETOR HOL
€ 7.50
92066
920661111
ref: 92066
PLUG,CAMSHAFT,11.35X1
€ 8.00
