TRANSMISSION

VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

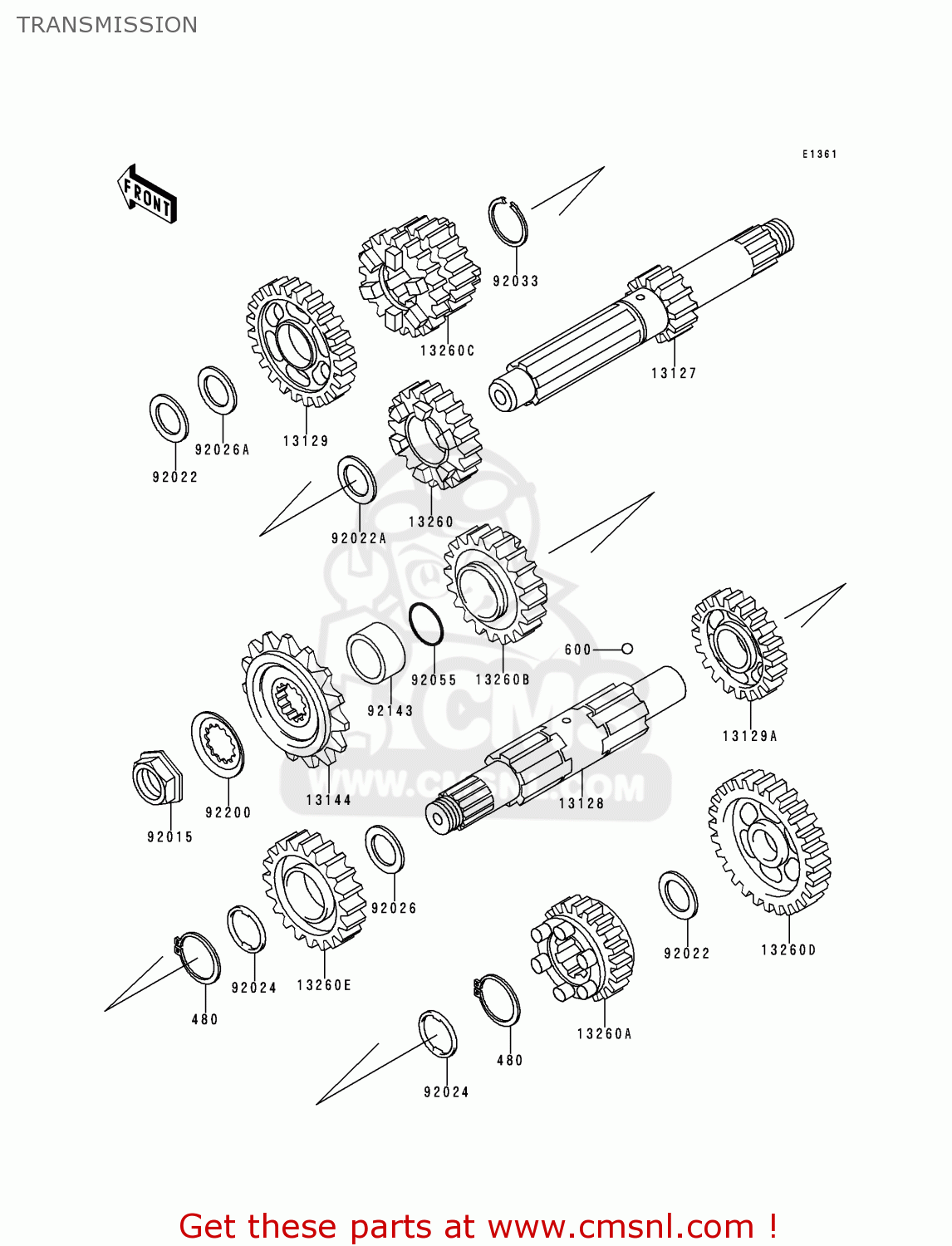

Transmission diagram VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

TRANSMISSION VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA
TRANSMISSION VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA
TRANSMISSION VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
480
480J3000
ref: 480
CIRCLIP-TYPE-C,30MM
480J3000
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
13127
131271241
ref: 13127
SHAFT-TRANSMISSION IN
€ 244.00
13128
131281204
ref: 13128
SHAFT-TRANSMISSION OU
€ 203.50
13129
131291632
ref: 13129
GEAR,INPUT 5TH,28T
131291632
€ 51.00
13129A
131291635
ref: 13129A
GEAR,OUTPUT 3RD,32T
€ 105.00
13144
131441304
ref: 13144
SPROCKET-OUTPUT,17T
131441304
€ 36.50
13260
132601473
ref: 13260
GEAR,INPUT 4TH,29T
€ 113.50
13260A
132601476
ref: 13260A
GEAR,OUTPUT 4TH,29T
€ 108.00
13260B
132601477
ref: 13260B
GEAR,OUTPUT 5TH,24T
132601477
€ 121.00
13260C
132601486
ref: 13260C
GEAR,INPUT 2ND&3RD,20
€ 96.50
13260D
132601487
ref: 13260D
GEAR,OUTPUT LOW,38T
132601487
€ 121.00
13260E
132601488
ref: 13260E
GEAR,OUTPUT 2ND,33T
132601488
€ 108.50
92015
920151963
ref: 92015
NUT,20MM
920151963
€ 10.50
92022
92022112
ref: 92022
WASHER,20.5X30X1,STEE
92022112
€ 6.00
92022A
92022161
ref: 92022A
WASHER-THRUST,25MM
92022161
€ 7.00
92024
92024069
ref: 92024
WASHER,TOOTHED,30.5X3
92024069
€ 3.50
92026
92026079
ref: 92026
WASHER,30X38X1
92026079
€ 6.00
92026A
920261535
ref: 92026A
SPACER,20.5X30X0.5
920261535
€ 4.50
92033
92033026
ref: 92033
CIRCLIP
92033026
€ 6.00
92055
92055035
ref: 92055
O RING
92055035
€ 3.00
92143
921431735
ref: 92143
COLLAR
921431735
€ 14.00
92200
922001065
ref: 92200
WASHER
922001065
€ 4.50
