STAND(S)

VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

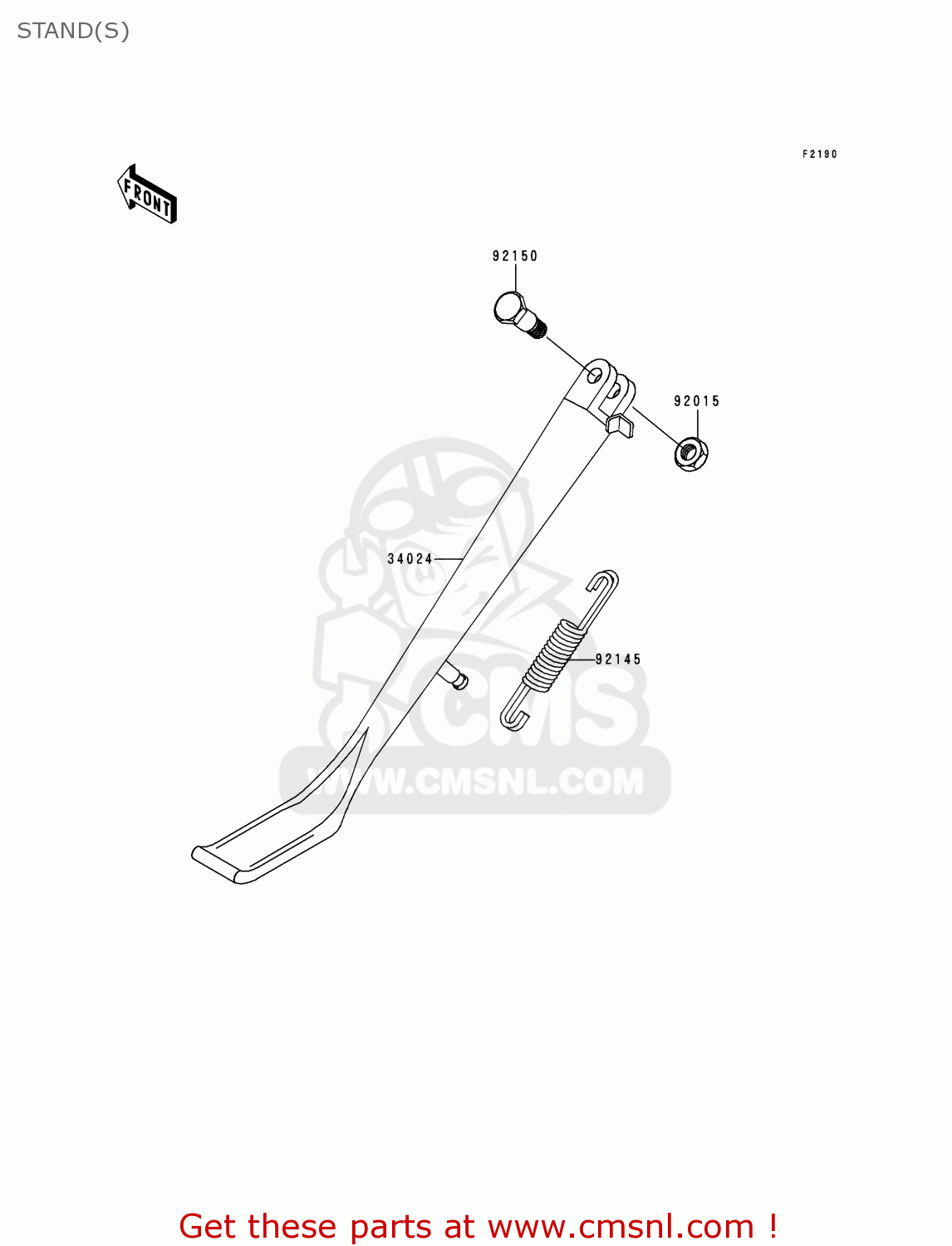

Stand(s) diagram VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

STAND(S) VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

STAND(S) VN800B4 VULCAN 800 CLASSIC 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

34024

340241320
ref: 34024

STAND-SIDE

€ 74.50

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92145

921451261
ref: 92145

SPRING, SIDE STAND

€ 9.50

92150

921501941
ref: 92150

BOLT,SIDE STAND

€ 4.00
